Chamberlain MG 1300 Wiring & Specifications

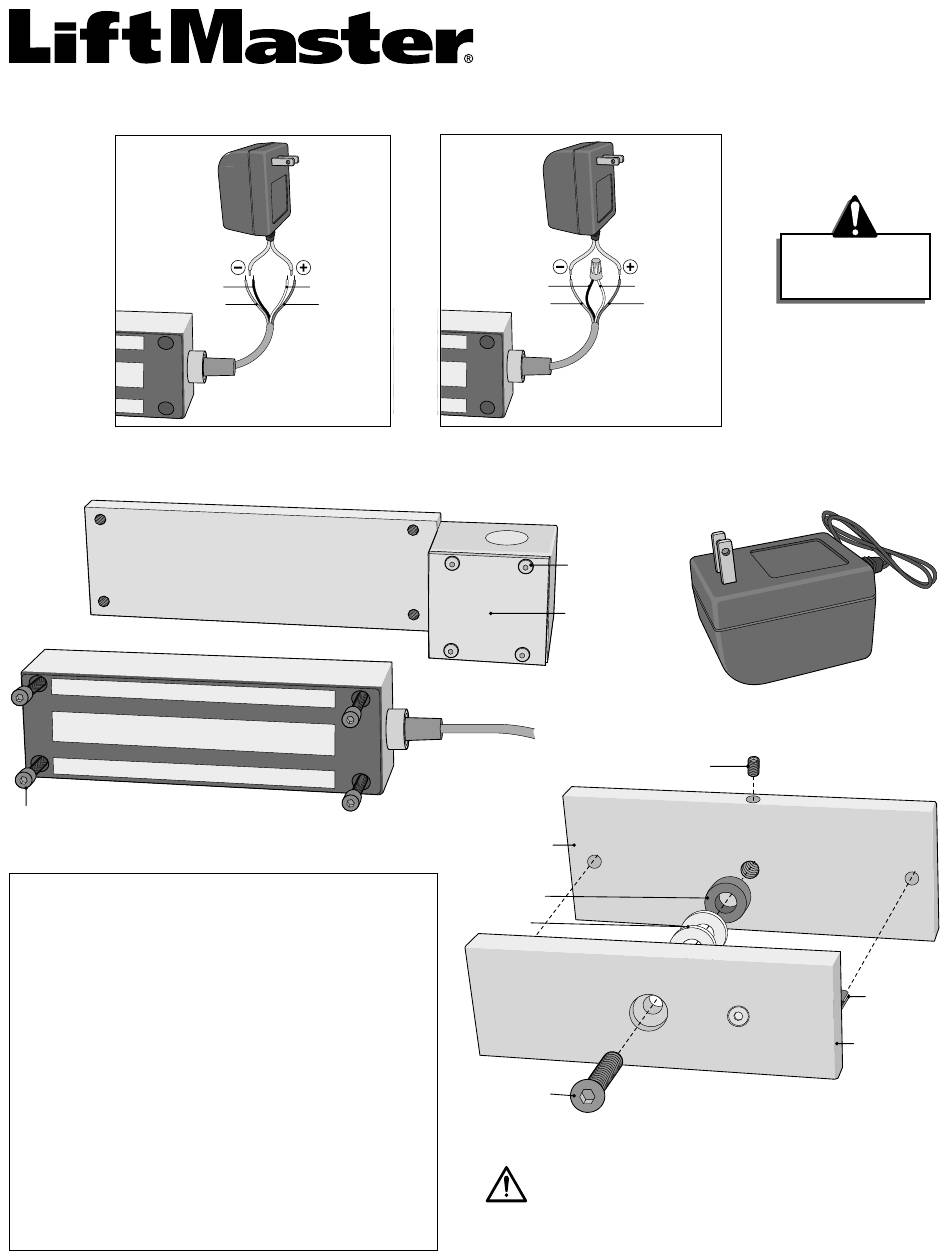

WIRING INSTRUCTIONS
Wiring 12 Vdc or 24 Vdc Transormer
12 Vdc Transormer
(Provided)
HARDWARE LIST AND SPECIFICATIONS
Magnetic Lock Plate and Junction Box
Magnetic Lock
Magnetic Lock Screws (4)
Housing: Stainless Steel
Junction Box: Steel
Magnet Plate: Steel
Plating: Zinc Clear
Power Supply
12 Vdc Supply:
Transformer: input 120 Vac
Output: 7.2 VA 12 Vdc @ 600 mA
24 Vdc Supply (Not provided):
Transformer: input 120 Vac
Output: 14.4 VA 24 Vdc @ 600 mA
Current draw
250 mA @ 24 V, 500 mA @ 12 V 600 mA
• If power supply is 12 Vdc and wire is 50 ft. use
18 AWG, if wire is 150 ft. use 14 AWG
• If power supply is 24 Vdc and wire is 50 ft use
22 AWG, if wire is 150 ft. use 18 AWG
Black White
Green
Red
12 Vdc @ 500 mA
WIRING & SPECIFICATIONS
24 Vdc Transormer
(Not Provided)
Black
Green
24 Vdc @ 500 mA
Junction Plate
Cover Screws (4)
Junction Box Cover
Armature Side Screw
Armature Plate
Rubber Washer
Washers
Armature Screw
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California to
cause cancer or birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
Do Not Use Wire
Smaller than
White
Red
Transformer
Model MG 1300
22 AWG
Guide Pins (2)
Armature
