57CM GARDEN ROLLER
ITEM No. 577182
Model No. GR57
ORIGINAL INSTRUCTION MANUAL
Please read these instructions fully before starting assembly.
HHGL Limited, MK9 1BA, HHGL (ROI) Limited, D02 X576
Technical Support & Parts
01904 727509
Mon-Fri 9am-5pm Sat-Sun 11am-4pm
www.coreservice.co.uk
Oct. 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GR57 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sovereign GR57

  • Page 1 57CM GARDEN ROLLER ITEM No. 577182 Model No. GR57 Technical Support & Parts 01904 727509 Mon-Fri 9am-5pm Sat-Sun 11am-4pm www.coreservice.co.uk ORIGINAL INSTRUCTION MANUAL Please read these instructions fully before starting assembly. HHGL Limited, MK9 1BA, HHGL (ROI) Limited, D02 X576...
  • Page 2: Table Of Contents

    CONTENTS General safety warnings Intended use Warnings symbols In the box Assemby Operation Maintenance Troubleshooting Technical data Disposal Getting help Warranty...
  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS Safety warnings WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in serious injury. WARNING! Read all safety warnings and instructions designated by the symbol. Save all warnings and instructions for future reference.
  • Page 4 General safety • Keep this operating and maintenance manual in a safe place for future reference. • Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. • Never allow children or people unfamiliar with these instructions to use the lawn roller.
  • Page 5 operate the tool under the influence of alcohol, medication or drugs. • Use tool appropriately. This tool is only intended for rolling surfaces and freshly sown seed (such as, grass seed and seeds in beds) to ensure that the seed is perfectly inserted in the soil. It has been designed for use in private and hobby garden areas only.
  • Page 6 • Stay alert, watch what you are doing and use common sense when operating the lawn roller. Do not use the lawn roller while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating tools may result in serious personal injury.
  • Page 7 • Grip the lawn roller securely. The operator should use two hands on the upper handle. • Keep the handle dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the lawn roller in unexpected situations.
  • Page 8: Intended Use

    INTENDED USE This lawn roller has been designed for rolling surfaces and freshly sown seed in private and hobby garden areas. It should only be used for its prescribed purpose, and any other use is deemed to be a case of misuse. PLEASE NOTE: Our equipment has not been designed for use in commercial, trade or industrial applications.
  • Page 9 Warning! Read the user instructions carefully. Wear protective gloves. Wear safety shoes. Always keep the roller on the ground when working. Keep bystanders away. Do not work whilst people, especially children or pets, are in the working area. Do not use in the rain or leave the roller outdoors while raining.
  • Page 10: In The Box

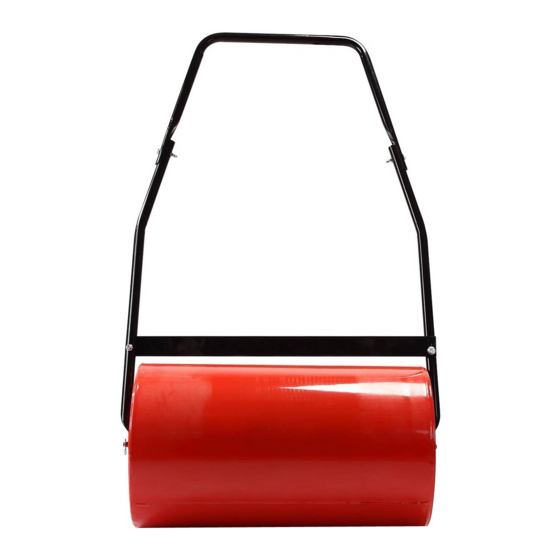

    IN THE BOX Parts A. Roller B. Dirt wiper C. Lower handle D. Upper handle E. Bolt F. Nut G. Pin H. Sealing ring I. Sealing cap...
  • Page 11: Assemby

    ASSEMBLY WARNING! You will need 8mm, 13mm and 14mm open-ended wrenches for assembling the garden roller. Always take care when removing the packaging, to prevent damage to you or to the garden roller. Make sure that you have sufficient space to put the garden roller down.
  • Page 12 Connecting of the dirt wiper with the lower handles Connect the dirt wiper (B) with the right and left lower handles (C), using the two bolts supplied, as shown below. Connecting of the upper handles Connect the upper handles (D) with the lower handles (C), using the two bolts supplied, as shown below.
  • Page 13: Operation

    OPERATION Filling the roller with water or sand Tilt the roller and make sure the sealing cap faces you, then fill it with either water or sand. Tighten the sealing cap (I) with a wrench. WARNING! Always wear safety gloves when doing any work on the lawn roller.
  • Page 14: Maintenance

    MAINTENANCE To ensure long and reliable service, carry out the following maintenance regularly. Check for obvious defects, such as loose fixings and worn or damaged components. Check that parts are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.
  • Page 15: Technical Data

    TECHNICAL DATA Model no. GR57 Roller width 57cm Roller diameter 32cm Volume Total height with handle 106cm Net weight 11kg DISPOSAL The garden roller and its accessories are made of various recyclable materials. Dispose of the garden roller in accordance with your local recycling regulations.
  • Page 16: Warranty

    WARRANTY This product is covered by a 1 year warranty. The warranty covers any manufacturing defect in materials, workmanship and finish. Any claim under this warranty must be made by going to your nearest Homebase store, taking your proof of purchase with you, and claims must be made within 1 year of the date of purchase.
