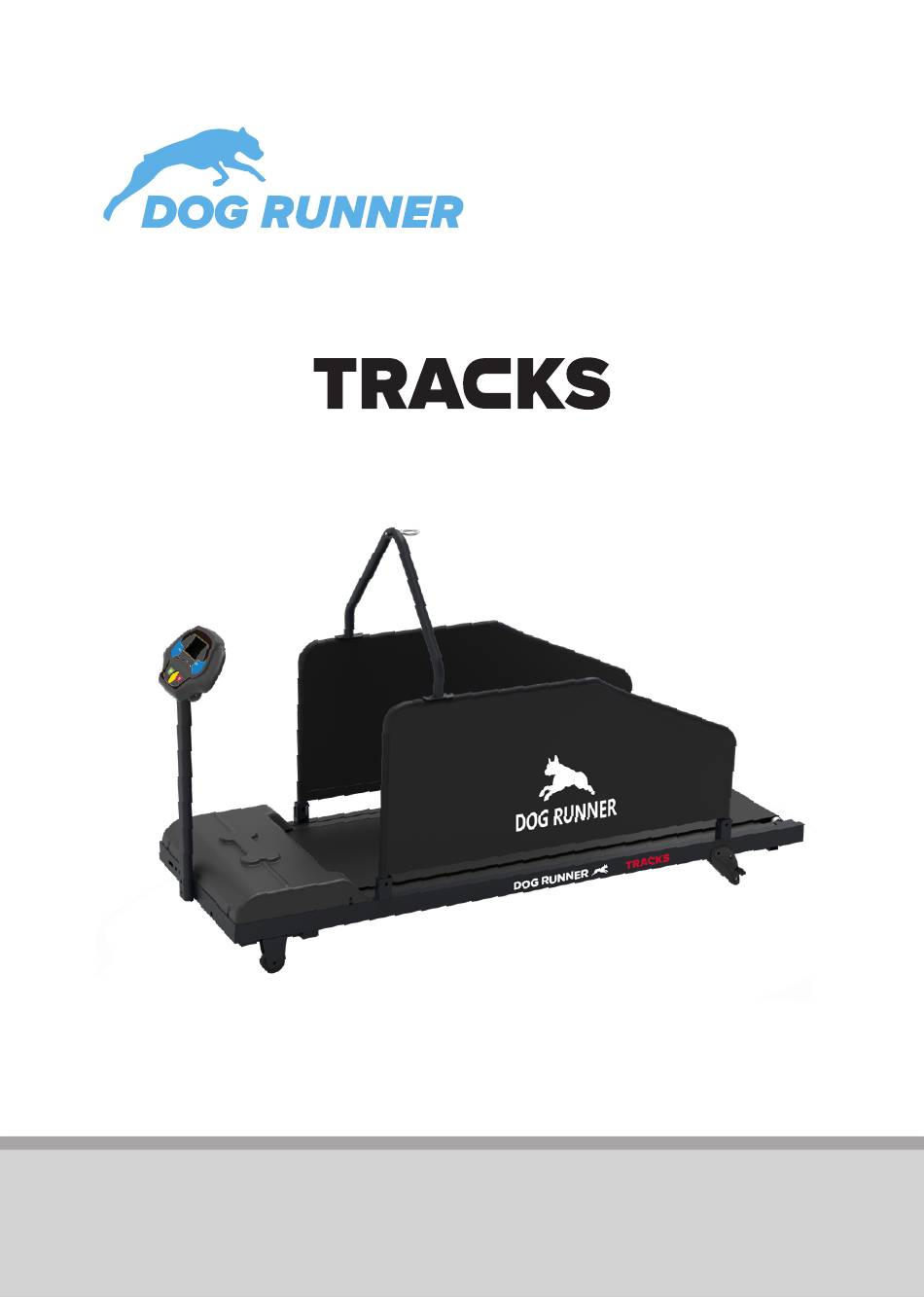

- Page 1 User's Manual THE SPECIFICATIONS OF THIS PRODUCT MAY VARY FROM THIS PHOTO AND ARE SUBJECT TO CHANGE WITHOUT NOTICE. FOR MAXIMUM EFFECTIVENESS AND SAFETY, PLEASE READ THIS USER’S MANUAL BEFORE USING YOUR TREADMILL.
-
Page 2: Table Of Contents
IINDEX 1. OVERVIEW DRAWING ........2 2. IMPORTANT SAFETY INSTRUCTIONS .... 3 3. GROUNDING WIRES INSTRUCTIONS....4 4. PRE-ASSEMBLY CHECK LIST ......5 5. ASSEMBLY STEPS ..........6 6. EMERGENCY STOP SYSTEM ......8 7. MAINTENANCE ........... 9 8. COMPUTER OPERATION INSTRUCTIONS ..10 9. -
Page 3: Overview Drawing
OVERVIEW DRAWING Hooker rack Side rail cover (R) Computer Safety key Side rail cover (L) Main frame welding... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using this treadmill, basic precautions should always be followed, including the following: ● To ensure user safety and protect the unit, read all the instructions before assembling and using the treadmill. WARNING: ● Do not use this product outdoors, near swimming pools or in damp, wet locations. ●... -
Page 5: Grounding Wires Instructions
GROUNDING WIRES INSTRUCTIONS The treadmill needs special power supply: Power supply voltage (V) Frequency (HZ) Rated current (A) 50/60 50/60 50/60 50/60 50/60 240+ 50/60 DANGER! Wirings follow the local country electrical regulations, high voltage, low voltage wires, and grounding wires must be separately transported and can’t connect with or twist other wires. -
Page 6: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Description Q’ty Description Q’ty Main frame welding Hex screw Hooker rack Cap nut Computer tube welding Truss phillips self tapping screw Computer Curved washer Safety key Nylock L shaped Hex Wrench Washer Cross wrench tool Silicon oil... -
Page 7: Assembly Steps
ASSEMBLY STEPS Step 1. Rotate the left and right side doors (A) upward. Note: Firstly, rotate one side door and fixed by screw, secondarily rotate the other side door and fixed by screw. Step 2. Assemble right & left side doors by hex screw (a), curved washer (d), and cap nut (b) . - Page 8 Step 4. 1. Pull out the wire and release wire through console welding tube assembly (C). 2. Tighten computer welding tube assembly (C) with Hex screw (a), washer (f) by hex Wrench (F) as left figure showing. Step 5. 1. Connect computer cable (D) with cable port from computer welding tube assembly (C).
-
Page 9: Emergency Stop System
EMERGENCY STOP SYSTEM ONDERHOUD This treadmill is equipped with safety system. The safety key shown as below drawing, a cord connects the security clip to the red STOP key on computer. User must attach the security clip to your dog’s harness before to begin any workout. Emergently stop treadmill by pulling the cord to suspend the operation. -
Page 10: Maintenance
MAINTENANCE Running Belt Adjustment If the running belt is not in the center, stop the treadmill then adjust the Hex Screw in the Rear End Cap by the Hex Wrench. For example, if the running belt is moving towards the left side, turn the left Hex Screw about 1/4 circle (clockwise). -
Page 11: Computer Operation Instructions
COMPUTER OPERATION INSTRUCTIONS 1. COMPUTER DISPLAY DESCRIPTION: 1.1 SPEED 1.1.1 MAX SPEED：14.0KMH 1.1.2 MIN SPEED: 0.8KMH。 1.1.3 Display function 1.1.3.1 Exercise mode: Display current exercise speed value 1.1.3.2 Setting mode: 0.8 KM/H - 14.0 KM/H 1.1.3.3 Version display: Turn on power and start the machine, attach safety key, computer display all read outs, speed read out shows software version No. - Page 12 1.3 TIME 1.3.1 In exercising mode: TIME read out display range 0:00 – 99:59 (Minutes: Second) , over 99:59 will retrun to ZERO to start new countdown. 1.3.2 In setting mode: Setting range 5:00 – 99:00, set stepping 1.00 ,TIME icon will flash when set countdown mode.
- Page 13 2.2.2.3 Program Table: 4 Pre-set programs P01-P04 as following listed. Each pre-set program has 10 different segments with varied speed and tme for each segment as below illustrated. P01 Speed P02 Speed P03 Speed P04 Speed User setting program – can customized program for speed and incline can be saved.
- Page 14 2.4.2.5 Computer Window Topic and Display Range: Window Topic Display Range 1) Min 0.8-Max 14.0 (KPH), adjustment step 0.1/ SPEED per time. 2) Will show version no. right after power on. 1) In exercising mode: 0.0-999 (KM). DISTANCE 2) In setting mode: 1.0-999 (KM), adjustment step 1 km/ per time.
-
Page 15: Exploded View
EXPLODED VIEW... -
Page 16: Parts List
PARTS LIST Description Q’TY Spec. Main frame welding SGP2XA00 Metal guard rails B00SGP2X Console welding tube assembly C00SGP2X Hooker rack D00SGP2X Square end cap PP502515 Square end cap PP132612 Power cord retaining ring PL6P-4 Overload switch FL2-6A I/O switch Power cord FD22100 Controller F900135-220V... - Page 17 Description Q’TY Spec. Belt blocking sheet NZ1155425 Washer phillips self tapping screw Φ4*12 Manual Incline base PS1426339 EVA pad 80X20X4.0t Pop pin knob SCM1050 Truss hex screw M8*50*15mm Nylock Φ4*12 Lower motor cover PS1426339 Footrail 80X20X4.0t Transportation wheel SCM1050 Truss hex screw M8*50*15mm Motor cover M8XP1.25...
- Page 18 ORIGINAL PRODUCT OF DOG RUNNER INTERNATIONAL - Designed in Belgium - Europe -...
