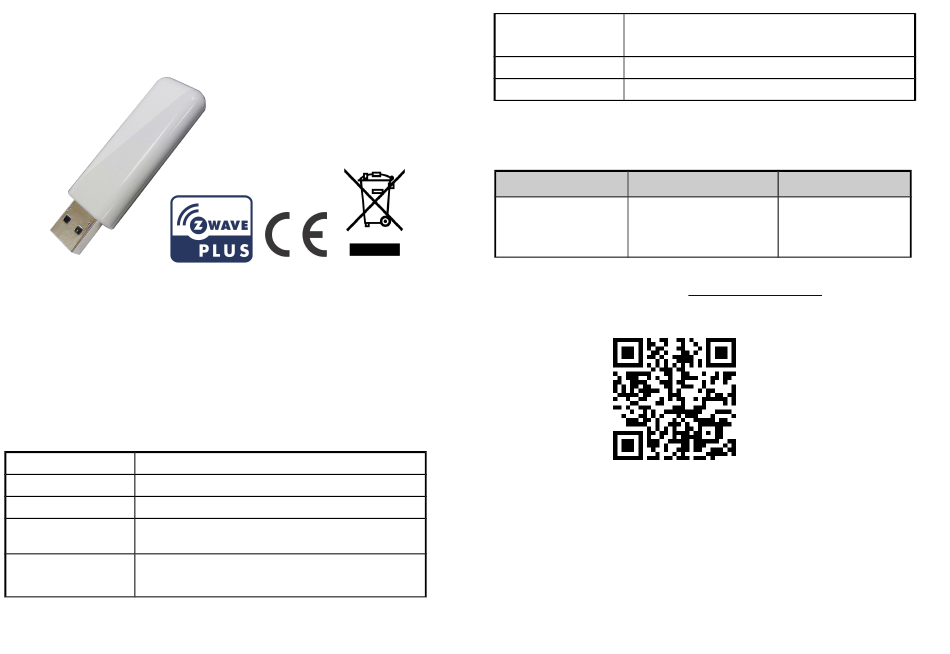

PAU01
Z-Wave Dongle
Introduction
The "Philio Z-Wave Utility" application is a tool for Philio RD testing, and also suitable
for product line testing in factory.
The purpose of this manual is to help user familiar the functionality of the
application, and operate the user interface.
This tool is for Z-Wave product, some concept of the Z-Wave network, or the
specification of the Z-Wave command, please refer to the Z-Wave SDK first.
Specifications
Operating Voltage
DC5V/1A from USB
Operating Temperature
-10°C - 55°C (85% humidity)
Storage Temperature
-30 C ~ 85°C
RF Range (distance)
Minimum 40M in door and 100M in outdoor, line of
sight
Frequency Range
868.40MHz; 869.85MHz (EU)
908.40MHz; 916.00MHz (US)
916.00 MHz (IL), (Israel),
920~924MHz (Taiwan; Korea)
RF Power
+5dBm
FCC ID
RHHPAU01
** Specifications are subject to change and improvement without notice.
Troubleshooting
Symptom
Cause of Failure
The device can not
The device may in a Z-
join to Z-Wave™
Wave™ network.
network
For Instruction to http://
1
(PAU01-IL)
Recommendation
Exclude the device
then include again.
www.philio-tech.com
Advertisement
Summary of Contents for Philio PAU01
- Page 1 For Instruction to http:// www.philio-tech.com Introduction The “Philio Z-Wave Utility” application is a tool for Philio RD testing, and also suitable for product line testing in factory. The purpose of this manual is to help user familiar the functionality of the application, and operate the user interface.
- Page 2 1. Installation 1.1. Install Dongle Driver The dongle need the PC driver. Please extract the “ZW040x_USB_VCP_PC_Driver.zip”. There is a uzb.inf file. Insert the dongle to the PC, in the first time, the PC will issue the driver can't found. You can observe the Control Panel → System and Security →...
- Page 3 Fill the driver file location. And click “Next”. Wait a while. Install OK. Select “Install this driver software anyway”.
- Page 4 2. Start Insert the USB dongle, and execute the “PhilioZWaveUtil.exe” to start the application. If the application can’t find the USB dongle, it will show the pop window, and click the OK button to close the application. Figure 1 USB dongle not found Normally, the application will read controller information from the USB dongle;...
- Page 5 Home ID: 3. Binding The home ID of the controller. This function tab is for user to maintain the Z-Wave network, include Node ID: or remove a device from the network, or add dongle to the other The node ID of the controller. If the controller is secondary network.
- Page 6 Now press the learning key on the device, usually the Z-Wave devices include it. But before you execute the include operation, please make made from Philio, press the learning key three times the device will sure that device is not be included to other network. If it is, please into the learn mode.
- Page 7 Figure 7 Include a new device Figure 8 Controller into exclusion mode PS: In the including procedure, you may saw the “Report Form” pop up. More information of the “Report Form”, please refer to the “8 Now remove the device from the controller, press the learning key Report Form”.
- Page 8 The content of the report. 4. Report Form 4. Operation Buttons: The “Report Form” will show up, when the dongle receive the report You can save, reload or clear the history report. And also can from the other devices. For instance, you send a “Basic Get” command close the “Report Form”.
- Page 9 Some commands always can send, no mater the device is supported or not. 5. Control Panel: Figure 13 Select the command Setting the arguments of the command, and send it out. Before you send out the command, you must make sure the Z-Wave device is in sleep mode or not.
- Page 10 At the end, click the send button to send out the command. Some command types will response the report. So the “Report Form” will pop up. please refer to the “8 Report Form”. 6. Consistent Test This page is for test the RF command is send to the device correctly. Figure 14 Check the options Select the command type that you want to send, and fill the arguments.
- Page 11 You can choose send the NOP command or the basic command. The interval field is for setting the interval time between each command. The repeat field is for setting how many commands will be sent. Figure 19 Start testing FCC Interference Statement Figure 18 Using the basic command This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 12 They can take this product for environmental safe recycling. www.philio-tech.com Philio Technology Corporation 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
