Summary of Contents for BUSCH 6224/2.0-WL

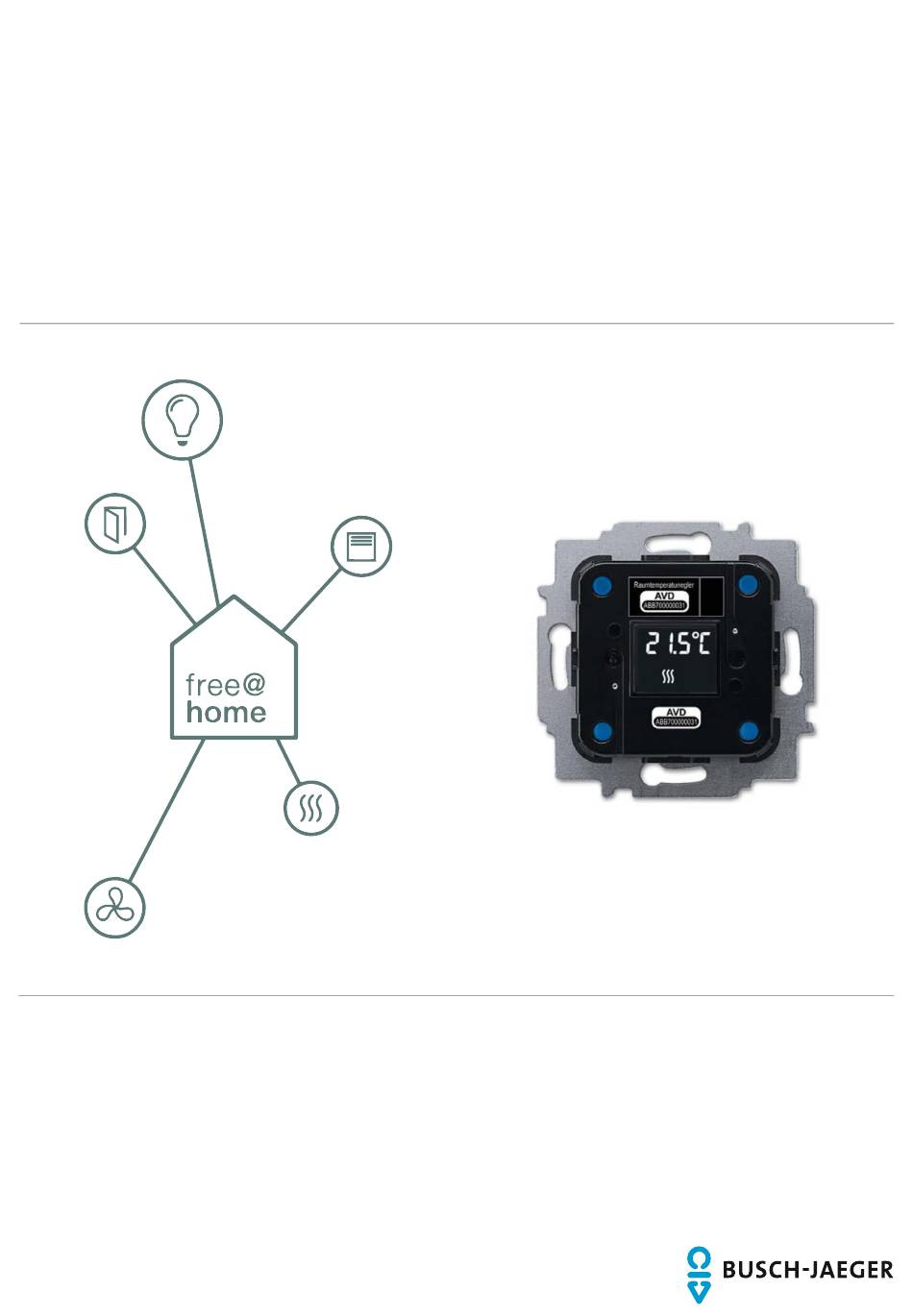

- Page 1 Product manual │ 13.05.2019 Busch-free@home ® Room temperature controller, wireless 6224/2.0-WL Room temperature controller/heating actuator, wireless 6224/2.1-WL...
-
Page 2: Table Of Contents
Table of contents Table of contents Information on the manual .......................... 3 Safety ................................. 4 Information and symbols used ......................4 Intended use ........................... 5 Improper use ........................... 5 Target group / Qualifications of personnel ..................5 ... -
Page 3: Information On The Manual
If you pass the device on, also pass on this manual along with it. Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact Busch- Jaeger or visit our Internet site at: www.busch-jaeger.de/freeathome... -
Page 4: Safety
However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. Busch-Jaeger accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide... -
Page 5: Intended Use
Each use not listed in Chapter 2.2 “Intended use“ on page 5 is deemed improper use and can lead to personal injury and damage to property. Busch-Jaeger is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user/operator. -
Page 6: Safety Instructions
Safety Safety instructions Danger - Electric voltage! Electric voltage! Risk of death and fire due to electric voltage of 100 … 240 V. Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death. -
Page 7: Setup And Function
The scope of supply only contains the flush-mounted insert [1]. It must still be completed with a cover frame [2] and a cover plate [3]. Notice Additional information about the switch ranges is available in the electronic catalogue (www.busch-jaeger-catalogue.com). Product manual 2CKA001473B9190 │7... -
Page 8: Overview Of Types
Sensor Actuator Switching Article no. Product name channels channels load Room temperature 6224/2.0-WL controller, wireless Room temperature 6224/2.1-WL controller/heating 1 x 3680 W actuator, wireless Table 1: Overview of types Functions The following table provides an overview of the possible functions and applications of the... -
Page 9: Device Overview
Setup and function Device overview Fig. 2: Device overview of room temperature controller [1] Phase sensing L [2] Mark TOP [3] Multi-point connector for sensor [4] Spring plug-in terminal for connecting an external temperature sensor [5] Bottom terminal block Fig. 3: Sensor [1] Sensor with display ... -
Page 10: Technical Data
Technical data Technical data Designation Value Operating voltage 230 V AC, 50/60 Hz L, N (option), inputs and outputs non- floating Screw-type terminal: Connection 2 x 2.5 mm² rigid; 2 x 1.5 mm² flexible With protective cover and reset (optionally Claw removable) Transmission protocol... -
Page 11: Dimensional Drawings
Technical data Dimensional drawings Notice All dimensions are specified in mm. All device types listed in this manual have the same dimensions. Fig. 4: Dimensions of all described device types (all dimensions in mm) Product manual 2CKA001473B9190 │11... -
Page 12: Connection And Installation
Planning instructions Note Planning and application instructions for the system are available in system ® manual for Busch-free@home . This can be downloaded via . Note Transmitter and receiver communicate via radio control. The transmission range depends on the structural conditions. Walls and ceilings, especially steel reinforcements or metal claddings, reduce the transmission range. -
Page 13: Safety Instructions
Connection and installation Safety instructions Danger - Electric shock due to short-circuit! Risk of death due to electrical voltage of 100 … 240 V during short-circuit in the low-voltage conduit. – Low-voltage and 100 … 240 V conduits must not be installed together in a flush-mounted box! –... -
Page 14: Circuit Diagrams
Connection and installation Circuit diagrams 10 A 16 A Fig. 5: Electrical connection [A] 6224/2.1-WL [B] 6224/2.0-WL [C] Temperature sensor 6226/T (optional; setting via parameterization) Product manual 2CKA001473B9190 │14... -
Page 15: Installation
Connection and installation Installation Notice The devices have been prepared for installing in flush-mounted boxes in connection with the corresponding support ring. The device insert has already been inserted in the support ring. To install the device, perform the following steps: Notice The sensor must be pulled off the flush-mounted insert before mounting! 1. - Page 16 Connection and installation 6. Mount the cover frame. Fig. 9: Mounting the cover fame 7. Attach the cover (with mounted sensor) to the flush-mounted insert. Observe the correct position of the sensor connection. Fig. 10: Mounting the sensor Product manual 2CKA001473B9190 │16...
-
Page 17: Commissioning
(in case of an actuator, e.g. to "Living room ceiling light"). The devices must be parameterised for the use of additional functions. Notice General information about commissioning and parameterization is available in ® the Busch-free@home system manual. Product manual 2CKA001473B9190 │17... -
Page 18: Coupling Of Wireless Devices With The System Access Point
Commissioning Coupling of wireless devices with the System Access Point free@home wireless devices must first be coupled with the System Access Point before they can be used in a project. The devices exchange a security key during the coupling process. Communication between devices is carried out encrypted after coupling and they are firmly connected with the System Access Point. - Page 19 Commissioning 2. Keep the button at the bottom left pressed. 3. Switch the device on again. The LED flashes slowly for 10 seconds, then fast for 5 seconds and then goes out. The factory settings are restored and the device can now be programmed again. ...
-
Page 20: Allocation Of Devices And Definition Of Channels
Commissioning Allocation of devices and definition of channels The devices connected to the system must be identified, i.e. they are allocated to a room according to their function and are given a practical name. The allocation is made via the device function of the Web-based user interface of the System Access Point. - Page 21 Commissioning Fig. 13: Pop-up window with the suitable devices Identification The device can be identified via the serial number or via switching. Identification via serial number Fig. 14: Identification via serial number Compare the serial number and the short ID of the identification label, which is glued on the ■...
- Page 22 Commissioning Identification via switching (only suitable for actuators) Fig. 15: Identification via switching 1. Select a device and a channel from the list. 2. Press the button in the detailed view of the device. The connected load is switched. 3. Repeat the last two steps until you have located the searched for device. ...
-
Page 23: Setting Options Per Channel
Commissioning Setting options per channel General settings and special parameter settings must be made for each channel. The settings are made via the allocation function of the Web-based user interface of the System Access Point. Select device Fig. 16: Select device 1. -
Page 24: Parameter Settings Of Room Temperature Controller
Commissioning 6.3.1 Parameter settings of room temperature controller Calibration process during initial commissioning Notice At initial commissioning and connection to the system the device should not be used for at least 3 hours. At initial commissioning and connection to the system the device should not be used for at least 3 hours. - Page 25 Commissioning [1] Changing the name [2] Deleting the channel (dustbin icon) [3] Switching the actuator via the button [4] Selection of the floor [5] Selection of the room [6] Setting the Eco temperature reduction in °C – The −/+ buttons can be used to specify the value the temperature is to be reduced to when the ECO mode is activated.
-
Page 26: Links
Commissioning Links The sensors and actuators created via the allocation function can now be linked with each other. This allows simple switch-off circuits or two-way circuits to be implemented. Linking is made via the linking function of the Web-based user interface of the System Access Point. -
Page 27: Update
Update Update A firmware update is carried out via the Web-based user interface of the System Access Point. Product manual 2CKA001473B9190 │27... -
Page 28: Operation
■ completed with a suitable cover plate and a cover frame. Additional information on the switch ranges is available in the electronic ■ catalogue (www.busch-jaeger-catalogue.com). Fig. 20: Operation [1] ECO mode, press the button [2] Increase in temperature reduction; press the button [3] Temperature On/Off;... - Page 29 Operation The room temperature controller has 4 operating modes that can be adjusted locally: Comfort mode You are in the room for a longer period of time; the comfort temperature is to be Application reached. Behaviour of the The display indicates the set-value temperature that has been set. The controller RTC: aims at this temperature.
-
Page 30: Displays / Messages
Operation Displays / messages Fig. 21: Displays [1] Controller On / display of set-point temperature [2] Controller Off [3] Heating active [4] Cooling active [5] Frost protection mode active [6] Eco mode (display 'ECO') [7] Display of comfort mode heating [8] Display of comfort mode cooling [9] Display of ECO mode [10] Display of OFF mode... -
Page 31: Maintenance
Maintenance Maintenance The device is maintenance-free. In case of damage, e.g. during transport or storage), do not perform repairs. Once the device is opened, the warranty is void. Access to the device must be guaranteed for operation, testing, inspection, maintenance and repairs (according to DIN VDE 0100-520). -
Page 32: Notes
Notes Notes Product manual 2CKA001473B9190 │32... -
Page 33: Index
Index Index A N Actuator ................. 8 Notes ..................32 Add device ................20 O Allocation of devices ............20 Operation ................28 C Overview of types ..............8 Circuit diagrams ............. 14, 15 P Cleaning ................31 Commissioning ..............17 Parameter settings of room temperature controller .....24 Connection and installation .......... - Page 34 Busch-Jaeger Elektro GmbH A member of the ABB Group PO box 58505 Lüdenscheid Freisenbergstraße 2 58513 Lüdenscheid www.BUSCH-JAEGER.de info.bje@de.abb.com Central sales service: Tel.: +49 2351 956-1600 Fax: +49 2351 956-1700 © Copyright 2019 Busch-Jaeger Elektro GmbH All rights reserved...
