Page 3 To Users Thank you for purchasing our product! This Manual is designed to make you quickly grasp use of this device. In order to avoid physical injury or property loss due to improper operation, please read this Manual carefully before using this device. Notice The device meets the requirements of FCC PART 90, PART 97 and PART 15.
Page 4: Rf Radiation Information
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ISEDC RSS warning This product meets the applicable Industry Canada technical specifications. / Le présent matériel est conforme aux specifications techniques applicables d’Industrie Canada.
Page 5 ·In vehicles with airbags, do not place the radio in the area where airbag deployment may be involved. ·Please turn off the radio before entering flammable or explosive environment. ·Do not replace or charge the battery in a flammable or explosive environment.
Page 6 RF Exposure Compliance and Control Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/ controlled environment exposure limits always adhere to the following procedures. Guidelines: • Do not remove the RF Exposure Label from the device. •...
Page 7 • For a list approved accessories please consult your local dealer for information. European Union (EU) Waste of Electrical and Electronic Equipment (WEEE) directive ： The European Union's WEEE directive requires that products sold into EU countries must have the crossed out trash bin label on the product (or the package in some cases).
Page 8 lors de la transmission (en termes de mesure pour la conformité aux normes). • Tenez la radio en position verticale devant le visage avec le microphone (et les autres parties de la radio, y compris l'antenne) à au moins 2,5 cm du nez. Garder la radio à la bonne distance est important car les expositions RF diminuent avec la distance de l'antenne.
Page 9: User Interface
User Interface...
Page 10: About The Device

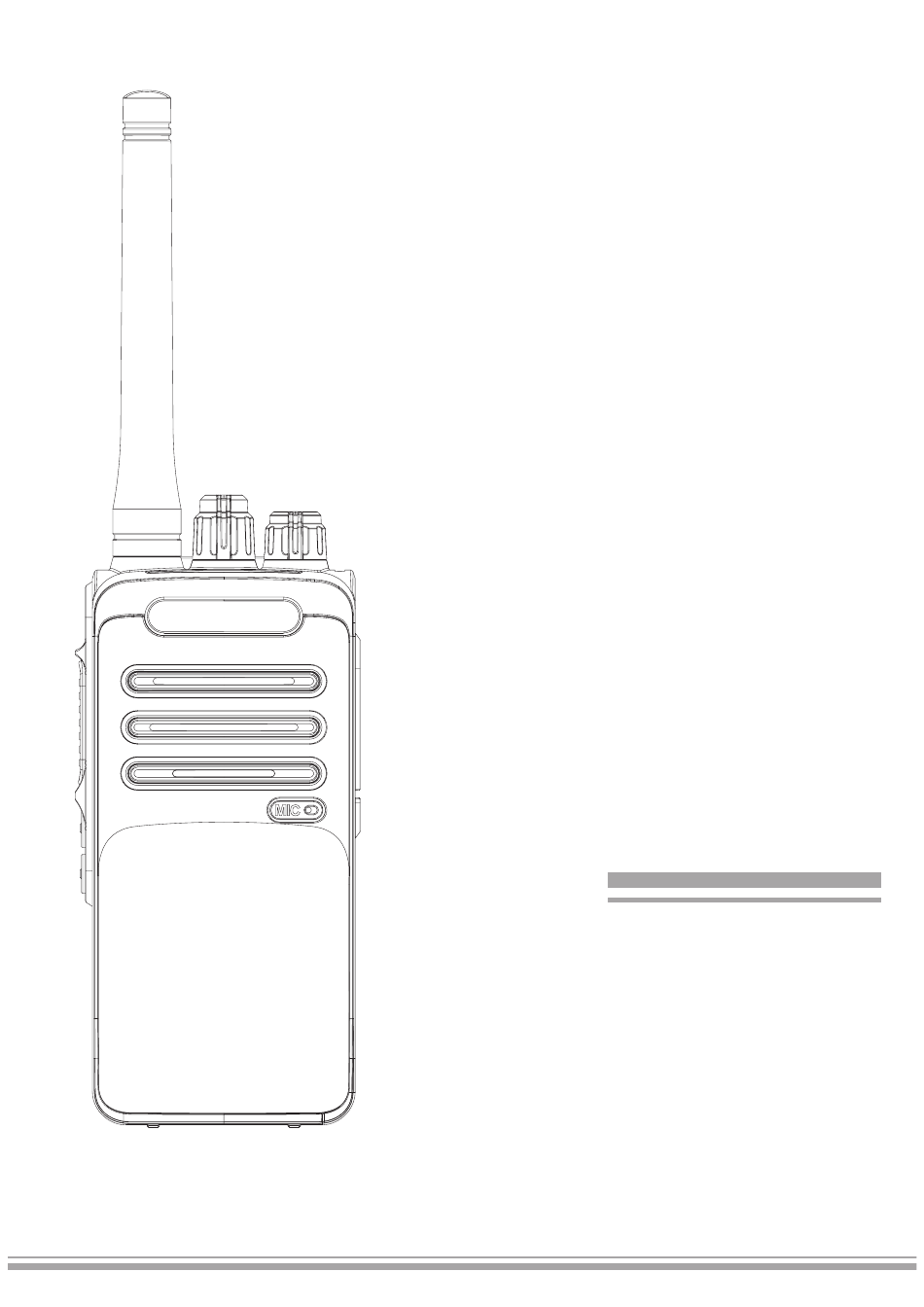

About the Device Antenna Power switch/Volume knob Alarm key LED indicator PTT key Interface P1 key Speaker P2 key Microphone Channel selection knob Radio LED Indicators LED Indication Radio Status Standby Blinking Green Low Battery Blinking Red Transmit (TX) Solid Red Receive (RX) Solid Green Programming Mode (Read from Radio)
Page 11 Power On/Off and Volume Control Power on/off: Turn the power switch knob to turn on/off the radio normally. Note: The battery needs to be charged, otherwise the radio cannot be turned on under low power state. Volume control: In standby state, turn the knob clockwise/ counterclockwise to adjust the volume that fits your ears.
Page 12: Antenna Installation
Antenna Installation Align the antenna with the connector on the top of the radio, and screw it in clockwise until it is tightened. Note: Do not hold the radio by its antenna; otherwise, the performance and service life of radio may be affected. Belt Clip Installation Step 1: Remove the belt clip...
Page 13: Charging Function
Charging Function Battery pack charging Device charging Charge Indicator LED lndicator Charge Status LED no light No load LED glows red Charging LED glows green Fully Charged Charging precautions: ·Please use the original charger tray of the model for charging. ·...
Page 14: Channel And Zone Selection
· The battery pack should be stored in a cool and dry place after being fully charged. Do not expose the battery pack near the fire or to the sun, otherwise there are safety risks. ·During charging, it is not recommended to transmit the radio. ·The battery pack may slightly heat up during charging, which is a normal phenomenon.
Page 15 Transmitting/Receiving After starting up successfully, the user can conduct various call operations. Precautions for radio use: ·When the radio is transmitting, keep the radio in a vertical position, and keep the microphone 2.5-5 cm away from the mouth. When transmitting, the radio should be at least 2.5 cm away from the head or body.
Page 16: Program Button
Program Button User can configure program button functions via programming software. Corresponding features as below: - None - Monitor - Scan On/Off - Direct Mode On/Off - High/Low Power - Emergency Call - One Touch Call - Zone Selection - VOX On/Off - GoGrouping 功...
Page 17: Password Configuration
Password Configuration 1. To prevent information leakage, you can set the reading and writing password through programming software. 2. Each time you read or write, you must enter the correct 8-digit password before operating. 3. To cancel the password, clear the password and confirm. 4.
Page 18: High/Low Power
Scan List Configuration 1. The scan list can contain analog channels and digital channels. 2. After configuring the scan list, the scan switch should be turned on. 3. Turn on/off the scan list through preprogrammed [P1/P2] key. 4. During scanning, the channels scanned include the channels in the scan list and the current main channel.
Page 19: Color Code
such as alarm channel, re-transmission times, and alarm type. 2. Emergency call supports the digital channel and analog channel. 3. Set the side button as the“Emergency Call” button in the “programmable button”. 4. When Analog or Digital channel triggers emergency call, an emergency call code will be sent.
Page 20 Contacts 1. Contacts are only valid for digital channels. 2. There are three kinds of contacts: private call, group call and all call; and each digital channel needs to be set through programming software. 3. When making private call, only when the frequency is the same, the other party's ID exists and is in standby state communication can be made.
Page 21 on the interface. 3. Configure “One touch call” through programming software and send “Remote Monitor”. Radio Check (Private call only) Radio check is used to check whether it can communicate normally with the other party. 1. Configure “One touch call” through programming software to send “Radio Check”.
Page 22 Note: Changing the channel will cover the leader's frequency setting include contact, color code or tone code settings. 1. Configure the programmable key as a “GoGrouping” through the programmable software. 2. A group of radios in mutual communication, one or more sets to operate the temporary teaming function: press the programmable button preset as “GoGrouping”...
Page 23: Voice Control Function
by writing frequency or receiving the "activation" command. Activate (Private call only) 1. The activation command is to remove kill status. 2. After sending activation command, it can change the other party from remote kill state to active state. After restarting, it can be used normally.
Page 24: Power Saving Function
Power saving function To extend battery life, the user can enable power saving mode. In the power saving mode, the user can press [PTT] key to transmit or the radio can receive normally when a signal is detected. The power saving function can be enabled/disabled by programming software.
Page 25: Optional Accessories
Optional Accessories Default accessories of the device are included in the product packaging box. For more information about accessories, please consult your local dealer. Disclaimer This manual strives for the accuracy and completeness of its content during the preparation. Repeated review has been carried out, and the company will not assume any responsibility for errors or omissions that may occur during the output and printing process.
