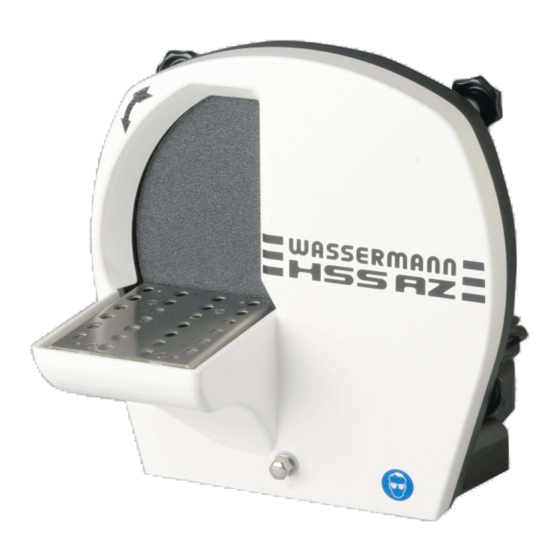

- Page 1 User manual HSS-AZ Plaster model trimmer with replaceable foil grinding disc or segmentally diamonded Dia-Quick grinding disc, with or without solenoid valve Figure 1: HSS-AZ WASSERMANN DENTAL-MASCHINEN GMBH...
- Page 2 Keep this instruction manual in a safe place where it can be referred to as required at any time. Company address: Wassermann Dental-Maschinen GmbH Rudorffweg 15-17 D-21031 Hamburg, Germany Tel. : +49 (0)40 / 730 926 – 0 Fax.: +49 (0)40 / 730 37 24 E-mail: info@wassermann-dental.com...
-
Page 3: Table Of Contents
- 2 - Contents CONTENTS ..........................2 FOR YOUR SAFETY ......................4 ................... 4 ORRECT USE OF THIS PRODUCT ................ 4 AFETY SYMBOLS USED IN THIS MANUAL ..................... 5 AFETY GUIDELINES ....................6 OTENTIAL DANGERS ..................... 6 OUR USER MANUAL .............. - Page 4 - 3 - MAINTENANCE ....................... 14 ......................... 14 ERVICING ....................14 ROUBLESHOOTING ....................15 OIL GRINDING WHEELS ..................... 15 RINDING WHEELS ......................16 CCESSORIES WARRANTY......................... 17 EC CONFORMITY CERTIFICATE ................18...
-
Page 5: For Your Safety
1 For your safety 1.1 Correct use of this product The HSS-AZ plaster trimmer is used in dental laboratories and is designed exclusively for grinding (trimming) plaster models. To prevent damage to the trimmer and/or to the blade, it must be used only with plaster. -
Page 6: Safety Guidelines
Do not wear gloves. If you have long hair, wear some form of protection such as a hair net. When working with the HSS-AZ, do not wear rings, chains, bracelets or similar jewellery. Be sure to shut off the tap at night and over the weekend. -
Page 7: Potential Dangers
The unit must be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the non-observance of these instructions. -
Page 8: Authorized Users
Do not open the unit until the grinding wheel has come to a complete stop. The HSS-AZ plaster model trimmer does not require any maintenance. However, if you open the wheel chamber for cleaning or to change the wheel, be sure to clean the sealing surfaces and coat them with a new application of water-insoluble grease (Top 2000). -
Page 9: Care
- 8 - 2.2 Care We recommend removing any caustic traces of plaster from the outside of the unit from time to time using a damp cloth. The HSS-AZ does not require any other care. 3 Use/Application The HSS-AZ trimmer is used for grinding (trimming) plaster models. -
Page 10: Set-Up And Storage
- 9 - 4.2 Contents HSS-AZ Item no.: 162996 including foil grinding disc Included in delivery Item no.: Inclined support 168037 Supply hose 1m 320006 Discharge hose 1m 320017 Brush spindle left* 152025 4.3 Set-up and storage When you set up the unit, make sure that the grinding wheel is accessible and that the unit is close to the plaster cutter. -
Page 11: Operation
- 10 - 5 Operation 5.1 Technical data Motor power 750 Watt Voltage 220-240 V / 50/60 Hz Power consumption Duty cycle S6 – 40 % Speed 3000 rpm Weight 19.2 kg Dimensions Width 290 mm Height 320 mm Depth 380 mm Table 120 mm projecting... -
Page 12: Water Regulation
- 11 - 5.2 Water regulation The water supply is regulated at the tap. The flow of water is sufficient if the grinding wheel is close to its natural colour when grinding. When grinding, use light pressure only and do not move the model to the right or left. You should, of course, always work with fully set plaster models, as wet plaster can cause blockages, especially in drain hoses. -
Page 13: Rinsing Water Hose
- 12 - 6.2 Rinsing water hose Locate the rinsing water hose (thinner hose with woven insert) between the tap and the hose connector on the trimmer. This connector is at the rear, under the motor. Use the clamps already on the hose to connect it, tightening them securely. There should be a stopcock between the tap and the feed hose so the hose is not under continuous pressure when the trimmer is not being used. -
Page 14: Assembly
In that case, use a sealing cap instead of the drain connection. 7 Assembly 7.1 Installing the angled mount The angled mount is inserted as required in the HSS-AZ support plate. Please follow the guidelines below. When working with the angled mount, make sure that it has been installed correctly. -
Page 15: Supports
- 14 - 8 Supports The HSS-AZ plaster trimmer does not need any other support than the one described in 7.1 Installing the angled mount. 9 Maintenance 9.1 Servicing For details of maintenance, see 2.1 Maintenance. Otherwise, the trimmer does not require any special maintenance. -
Page 16: Foil Grinding Wheels
- 15 - 9.3 Foil grinding wheels These wheels can be turned around and remounted after one side has been used up, thus allowing you to continue working. This increases wheel life considerably. 9.4 Replacement grinding wheels Replacement wheels are always supplied with a tube of grease for sealing the wheel chamber. -
Page 17: Accessories
- 16 - 9.5 Accessories HSS-AZ Item no.: 162996 including foil grinding disc Accessories Item no.: (HSS-AZ) 168056 Wall console Polishing trough with extractor nozzle* 143130 Polishing trough without extractor nozzle* 143140 Polishing trough base complete * 161115 Brush spindle left*... -
Page 18: Warranty
- 17 - 10 Warranty The warranty period for our equipment is 12 months. If faults occur within the warranty period, contact your dental depot or get in touch directly with our Service department. Your plaster model trimmer should only be operated in perfect condition. If faults occur which could harm operators or third parties, the unit should not be used until it has been fixed. -
Page 19: Ec Conformity Certificate
Plaster model Dental-Maschinen GmbH trimmer for dental Rudorffweg 15 - 17 applications D-21031 Hamburg Model: HSS-AZ plaster trimmer without solenoid valve (162 998) HSS-AZ plaster trimmer with solenoid valve (162 999) Applicable DIN EN 61010-1:2004 standards: DIN EN 61000-6-3:2005 DIN EN 61000-6-1:2002... - Page 20 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...
