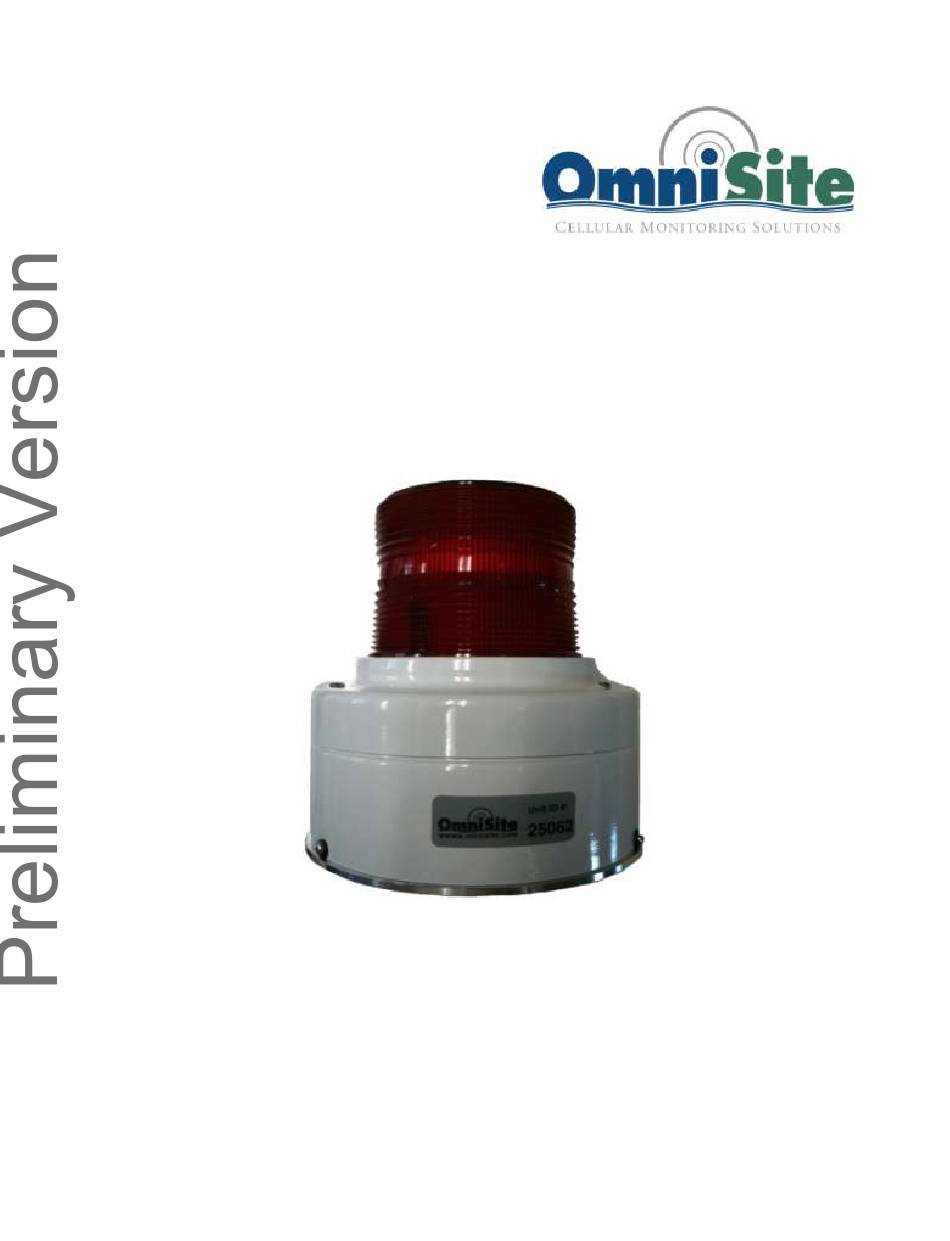

- Page 1 SmarteLight v1.0 Manual Revision: 1.1 Date: 8/19/2011 SmarteLight v1.0 Manual Revision: 1.1 Page i OmniSite...
-
Page 2: Table Of Contents
10.1 Callout List ..........................12 10.1.1 Recipient Library ........................12 10.1.2 Callout List Manager ......................14 10.1.3 Callout List Recipients ......................15 11. Troubleshooting Tips ..................... 16 12. Replacement Parts ......................16 SmarteLight v1.0 Manual Revision: 1.1 Page ii OmniSite... - Page 3 13. Service Contract ......................17 SmarteLight v1.0 Manual Revision: 1.1 Page iii OmniSite...
-
Page 4: Revision History
Revision History Version Name Reason For Changes Date David L. Brown Initial Revision 6/30/2011 David L. Brown Preliminary End User Release 8/18/2011 SmarteLight v1.0 Manual Revision: 1.1 Page iv OmniSite... -
Page 5: Notice
Contact Information OmniSite 494 S. Emerson Ave, Suite E Greenwood, IN 46143 Phone: 317-885-6330 Email: techsupport@omnisite.com Web: www.omnisite.com SmarteLight v1.0 Manual Revision: 1.1 Page v OmniSite... -
Page 6: Introduction
Congratulations – you just bought the best. The OmniSite system provides two-way communications using our patented WINGS™ (Wireless Information Network Gateway Standard) over a cellular network. The low cost of the OmniSite method makes remote monitoring very affordable, and allows our devices to operate on GSM networks worldwide. OmniSite takes pride in having the most complete coverage and the best reputation in the industry. -
Page 7: Purpose

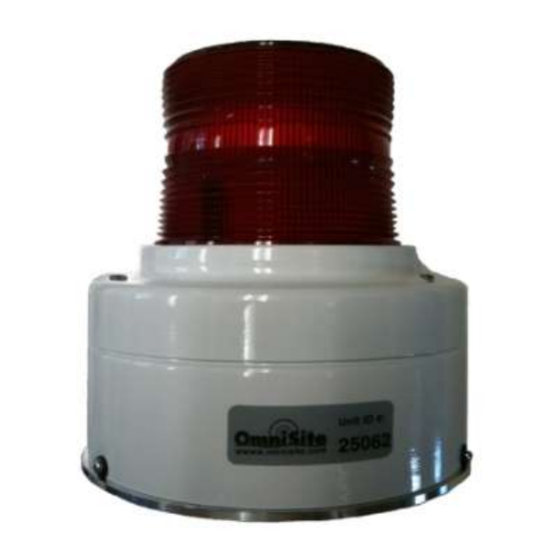

1.2 Purpose The OmniSite SmarteLight is a low cost, effective Cellular Alarm Monitor that is easy to install and set up. This manual provides the information needed to install the SmarteLight, connect the input, and the general usage of the product. -
Page 8: Electrical Specifications
120 VAC +/- 20% Alarm Signal Input Current Maximum 0.5 A (including bulb) Output Relay Voltage Maximum 100 VDC or 125 VAC Output Relay Current Maximum Backup Battery Voltage Nominal 9 VDC SmarteLight v1.0 Manual Revision: 1.1 Page 3 of 17 OmniSite... -
Page 9: Installation
3. Installation 3.1 Required Tools 1” stepper bit or hole saw 7/32” drill bit 1 ¼” minimum size adjustable wrench 5/16” wrench or socket SmarteLight v1.0 Manual Revision: 1.1 Page 4 of 17 OmniSite... -
Page 10: Installation Procedure
7) Thread the chase nipple through the hole in the control panel surface and into the bottom of the SmarteLight 8) Thread the 5/16” bolts into the holes in the bottom of the SmarteLight 9) Installation is complete Control Panel... -
Page 11: Hardware I/O Connections
4.1.4 Disable Switch – A and B These wires disable the module when they are shorted to each other. The intention is to utilize a remote mounted switch to enable and disable the system. SmarteLight v1.0 Manual Revision: 1.1 Page 6 of 17... -
Page 12: Connection Diagrams
4.2 Connection Diagrams 4.2.1 Continuously Powered Continuously powered installations are intended for new/OEM applications that can utilize all features of the system. SmarteLight v1.0 Manual Revision: 1.1 Page 7 of 17 OmniSite... -
Page 13: Field Replacement
4.2.2 Field Replacement Field replacement installations are intended to replace an existing alarm light in the field with a SmarteLight. SmarteLight v1.0 Manual Revision: 1.1 Page 8 of 17 OmniSite... -
Page 14: Status Leds
5. Status LEDs The SmarteLight has LEDs that are used to convey status to the user. This radio status is the right most LED when viewing the SmarteLight from the front. The system status is the left most LED when viewing the SmarteLight from the front. -
Page 15: System Status Led Patterns
6.2 Backup Battery Monitoring The SmarteLight utilizes a non-rechargeable lithium battery (OmniSite P/N: SL-BAT-9V-A1). When the backup battery voltage drops to 6.0, a low battery alarm condition is transmitted. When the backup battery voltage drops to 5.0, the system switches off the battery so the module can no... -
Page 16: Input Alarms
Input state change alarms are transmitted when voltage is detected and removed from the “Alarm Signal” wires. There is 5 second alarm delay before an alarm is transmitted. Although the SmarteLight has only one alarm channel, several field alarms can be wired in series or parallel to supply a “general” alarm. -
Page 17: Guarddog Setup
These recipients will receive a Text Message for each active notification. To setup an SMS recipient just type in the phone number and choose the carrier for the number using the carrier dropdown. SmarteLight v1.0 Manual Revision: 1.1 Page 12 of 17... - Page 18 Just use the provided email as an email recipient. If you would like your carrier added to our dropdown, SmarteLight v1.0 Manual Revision: 1.1 Page 13 of 17...
-
Page 19: Callout List Manager
When you are finished, click the in the upper right corner of the Callout List Manager window and the callout list dropdown will refresh to reflect any changes you made. SmarteLight v1.0 Manual Revision: 1.1 Page 14 of 17 OmniSite... -
Page 20: Callout List Recipients
(later). To insert a recipient between entries, just edit a blank entry using the steps above and then use the arrows to arrange them as appropriate. SmarteLight v1.0 Manual Revision: 1.1 Page 15 of 17... -
Page 21: Troubleshooting Tips
I didn’t set it up on the completed unit 24 hours before installation website prior to installation 12. Replacement Parts Part Number Description SL-LENS-RED Red Lens SL-LEN-AMBER Amber Lens SL-BULB-50W 50W Bulb SL-BAT-9V Backup Battery SmarteLight v1.0 Manual Revision: 1.1 Page 16 of 17 OmniSite... - Page 22 Shipping of the product to OmniSite will be at the customer’s expense. Where to Buy: Purchase the Omnisite 100% Guaranteed Service Contract direct from Omnisite or from any of our authorized Master Representatives. Contact us at 317-885-6330 or sales@omnisite.com SmarteLight v1.0 Manual Revision: 1.1...
