Summary of Contents for Arizer AST110

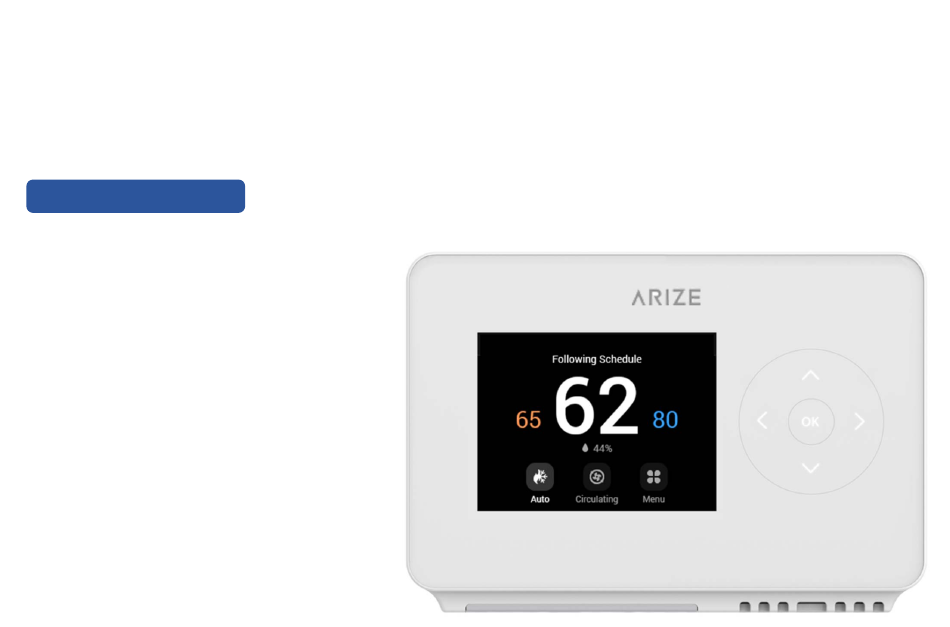

- Page 1 ARIZE Smart Thermostat AST110 User Manual...
- Page 2 Installation Guide AST110 Smart Wi-Fi Thermostat First things first. Here ’ s what you ’ l l find in the box Wi-Fi Thermostat Two screws and anchors Wire labels Jumper wire...
- Page 3 You may also need these tools: Phillips screwdriver Level Pencil Home Wi-FiPassword Compatibility Section For conventional ( gas / oil / propane / electric ) heat-pump and dual fuel systems. > 2-Heat & 2-Cool >1-Heat & 1Cool >Heat Only >Cool Only >Heat Pump with Auxiliary Heating and Emergency Heating C-Wire required to power the thermostat...
- Page 4 Incompatible wiring and voltage Please check your old thermostat’s wall plate have any below indicators? • Does not work with electric baseboard heat ( 110VAC~240VAC ) • Does not work with millivolt systems • Does not support S terminals for indoors and outdoors sensors. 240 VAC L1 L2...
- Page 5 Download the App Search Arize Resident in the App Store or Google Play Store,then download...
-
Page 6: Installation
Installation This AST110 thermostat is designed to work on most 24V-AC ow voltage heating and cooling systems such as gas and oil furnaces, heat pumps, and single or dual-stage systems. Switch off power Step 1 This protects you and avoids blowing a fuse in your equipment. - Page 7 Check that your system is off Step 2 Confirm your system is off by turning on your heat ( during winter ) or your AC ( during summer ). Wait a few minutes—you should not feel air coming from your vents. NOTE : If you have a digital thermostat with a blank...
- Page 8 Take a picture of the wires Step 4 Take a picture of your existing wall plate’s wiring and save it for reference. Make sure you can read the wire terminal labels. Label the wires Step 5 Use the wire label provided with your new thermostat to label each wire on your old wall plate.
-
Page 9: Step 7 Mount The New Wall Plate
Disconnect the wires and remove the old wall plate Step 6 Disconnect the wires from the old thermostat one by one, you may need a screwdriver to release wires from terminals. NOTE : Wrap the wires around a pen or pencil so they don’t fall back into the hole in the wall. -
Page 10: Conventional System
Look at the thermostat wiring photo you took. The following are wiring diagrams for common systems, please confirm you have a C connected to your old thermostat. Terminal Conventional System Heat Pump System Power for cooling, 24V Power for cooling, 24V Power for heating, 24V Power for heating, 24V Common wire, 24V... - Page 11 Single Stage Heat / Two Stage Heat- Furnace / Boiler with C wire Y2 O/B/W2 Thermostat 1st Stage Heat 2nd Stage Heat Combined Single Stage Heat and Single Cool Stage with C wire （ Remove Pre-installed Jumper ） Cool Furnace and Air Conditioner Y2 O/B/W2 Thermostat...
- Page 12 Single Stage / Two Stage Heat Pump with Emergency Heat and Auxiliary Heat with C wire Y2 O/B/W2 Thermostat U X1st Single Stage Cool / Two Stage Cool‒Air conditioner Y2 O/B/W2 Thermostat 1st Stage Cool 2nd Stage Cool...
- Page 13 Dual Fuel System-Combined Single Stage Heat Pump and Single Stage Furnace with C wire Y2 O/B/W2 Thermostat...
- Page 14 If you do not have a C-wire connected to your old thermostat, please check below wiring diagram. Do you have a spare wire? Yes. Check for spare wire behind your wall plate or old thermostat, if you have a spare wire, connect it to the C terminal on the new wall plate.
- Page 15 Conventional system without the C wire (also commonly called a 4-wiresystem ) Remove cover from furnace or heating system, open the heating and cooling system’s cover to find the control board. You should see the same terminal labels that are on your thermostat, move the G wire to the C terminal, then use the included jumper wire to connect G with Y.
- Page 16 Heat only 3-Wire system Heating wiring terminal Move G wire to C terminal Thermostat Move G wire to C terminal...
- Page 17 Cool only 3-Wire system A/C wiring terminal Move G wire to C terminal Thermostat Move G wire to C terminal...
- Page 18 Attach Thermostat to the Wall Step 9 First align the two clips on the back of the AST110 into the corresponding slots on the top of the wall plate. Firmly press forward to secure PUSH it into position.
- Page 19 Power on and Enjoy Step 10 Turn on the switch that controls your heating and cooling system, th thermostat will power on and prompt you to start the setup. If you are having trouble, please refer to our help guide. Switch Breaker box...
-
Page 20: Initial Setup
User Manual AST110 Smart Wi-Fi Thermostat Initial Setup Device Initial Setup Step 1 For a quick and easy way to begin using your new smart thermostat, the device will automatically direct you to the Initialization Setup process once it’s turned on for the first time. - Page 21 Below is a list of helpful tips that may guide you to selecting the correct option for your home. If you have a furnace or boiler： 1. Select Gas/ Oil. 2. Touch OK button to continue. 3. Then select Appliance or Thermostat depending on your personal preferences for fan control.
-
Page 22: Dual Fuel System
If you have a Dual fuel system： 1. Select Dual Fuel and touch OK to next step, 2. Then follow the on-screen instructions to configure the fossil fuel heating appliance settings, 3.Click Next at the button of the screen to continue to configure the heat pump heating appliance settings. - Page 23 Wi-Fi Setup A reliable Wi-Fi connection is required in order to access smart features such as remote access, weather forecast and more. Please follow on-screen instructions to complete the Wi-Fi setup.
- Page 24 Add Device to your Account Step 2 You can ask the property manager to assign the thermostat to your account...
-
Page 25: Main Screen
User Manual AST110 Smart Wi-Fi Thermostat Main Screen Indoor temperature Heating Setpoint Cooling Setpoint Indoor Humidity Current Mode Menu Entry Current Fan Mode... -
Page 26: Advanced Setting
Advanced Setting: To access the Equipment Setup, click on a setting and use the scroll wheel to modify the default value by following steps: Menu- Setting- Advanced setting. Terminal Default Description A temperature range between the current temperature and the heating setpoint, where Deadband 1℉... - Page 27 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
