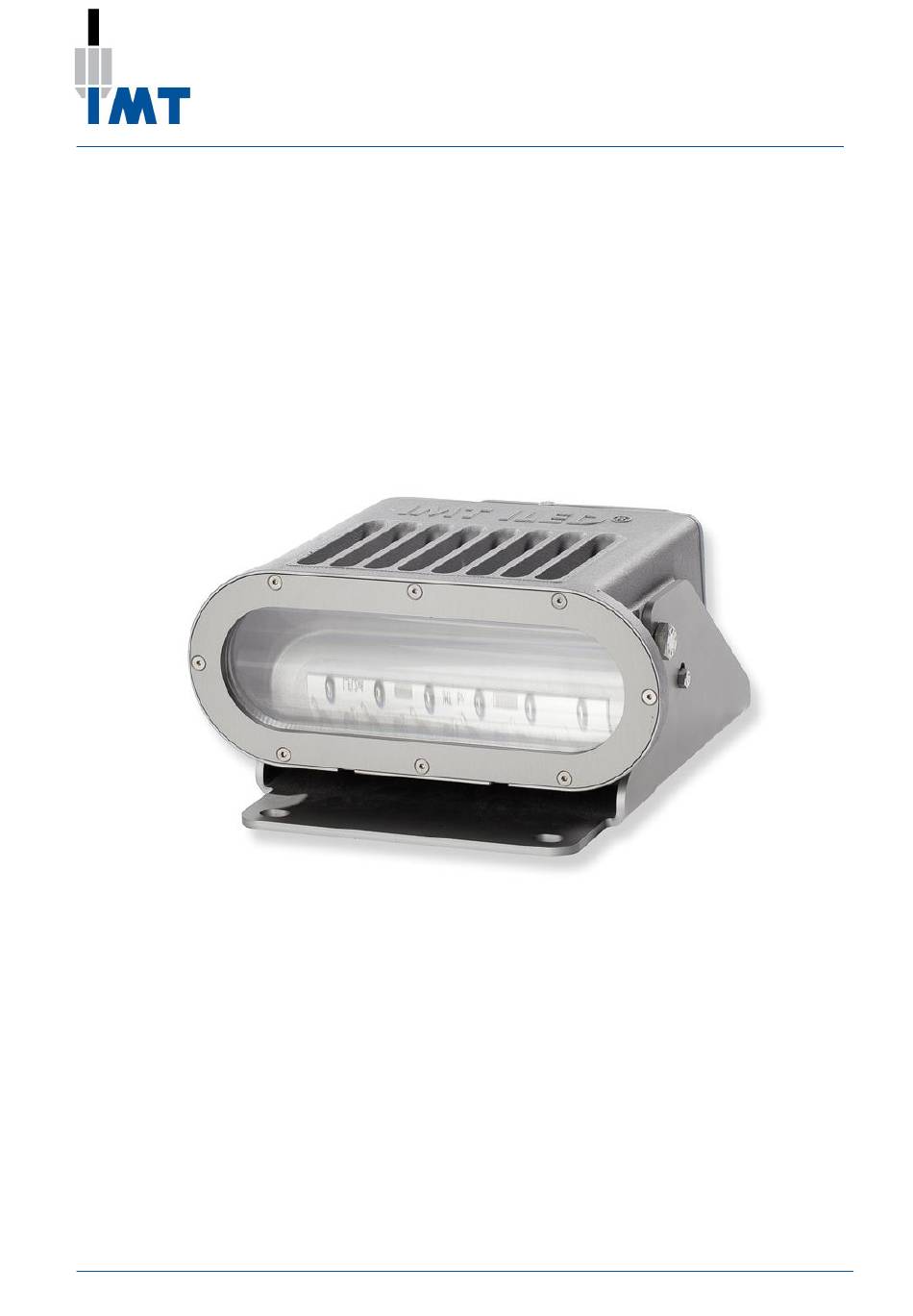

- Page 1 ILED Aquarius Floodlight User Manual...
-
Page 2: Table Of Contents
EU Declaration of Conformity ....................11 Copyright © IMT B.V. All rights reserved. No part of this User Manual may be copied, redistributed, published or changed without the prior written permission of IMT B.V. 901.043.02 User Manual ILED Aquarius Floodlight Version 2.1 201603... -
Page 3: Safety
2. Warranty 2.1 General The warranty for the ILED Aquarius Floodlight light fittings is only valid when the light fitting is used within the operating limits. The operating limits are: The minimum and maximum ambient temperature for the ILED Aquarius Floodlight light fitting is -40°... -
Page 4: Type Plate
: AC Version 420-155mA : DC Version 1,66A Power : Max. 40W Frequency : AC Version 50/60 : DC Version None 3.2 Explosion proof Model The explosion-proof model has a type plate: 901.043.02 User Manual ILED Aquarius Floodlight Version 2.1 201603... -
Page 5: Product Description
: Ex e mb IIC T4 Gb : Ex tb IIIC T135°C Db IP66 4. Product Description All ILED Aquarius Floodlight light fittings are designed for use in demanding surroundings. The various ILED Aquarius Floodlight light fittings: Are sealed for life. -
Page 6: Specifications
: >0,95 Connection : Fitted as standard with a junction box, suitable for a single-phase connection Options The following options are available for all the ILED Aquarius Floodlight light fittings: Mounting brackets 5.2 Dimensions 901.043.02 User Manual ILED Aquarius Floodlight... -
Page 7: Installation
Check the connections that have been made. Close the junction box. WARNING The installation must be carried out in accordance with IEC 60079-14. WARNING The installation must be carried out in conformance with (NEN-EN) IEC 60079-14. 901.043.02 User Manual ILED Aquarius Floodlight Version 2.1 201603... -
Page 8: Connections
User Manual ILED Aquarius Floodlight 6.3 Connections As standard, there is a terminal block in the junction box of the ILED Aquarius Floodlight which is suitable for a 1-phase connection. Standard AC version: The following connections can be made L and N... -
Page 9: Use
The light fitting can be switched on immediately after installation by switching on the supply voltage. . 7.2 Insulation test Installations in which IMT ILED Aquarius Floodlight light fittings are installed can be tested by means of an insulation test. For this test, apply a maximum of 500 Vdc between earth and (+ and -). -
Page 10: Maintenance
: +31 (0)88 – 12 69 100 : +31 (0)88 – 12 69 101 E-mail : emea-sales-nl@tidelandsignal.com For an up-to-date overview of all national and international contacts, go to our website: www.imt.eu. 901.043.02 User Manual ILED Aquarius Floodlight Version 2.1 201603... -
Page 11: Eu Declaration Of Conformity
Limits for harmonic current emissions (equipment input current up to and including EN 61000-3-2 2006 16A per phase), EC type certificate number Sira 11ATEX3295X and IECEx SIR 11.0142X Culemborg, 22 March 2016 IMT B.V. R.L.L.M.G. Mignot, VP Offshore Oil and Gas 901.043.02 User Manual ILED Aquarius Floodlight Version 2.1 201603... - Page 12 IMT B.V. Pascalweg 10a, 4104 BG Culemborg P.O. Box 88, 4100 AB Culemborg Tel: +31 (0)88 – 12 69 100, Fax +31 (0) 88 – 12 69 101 www.imt.eu, emea-sales-nl@tidelandsignal.com...
