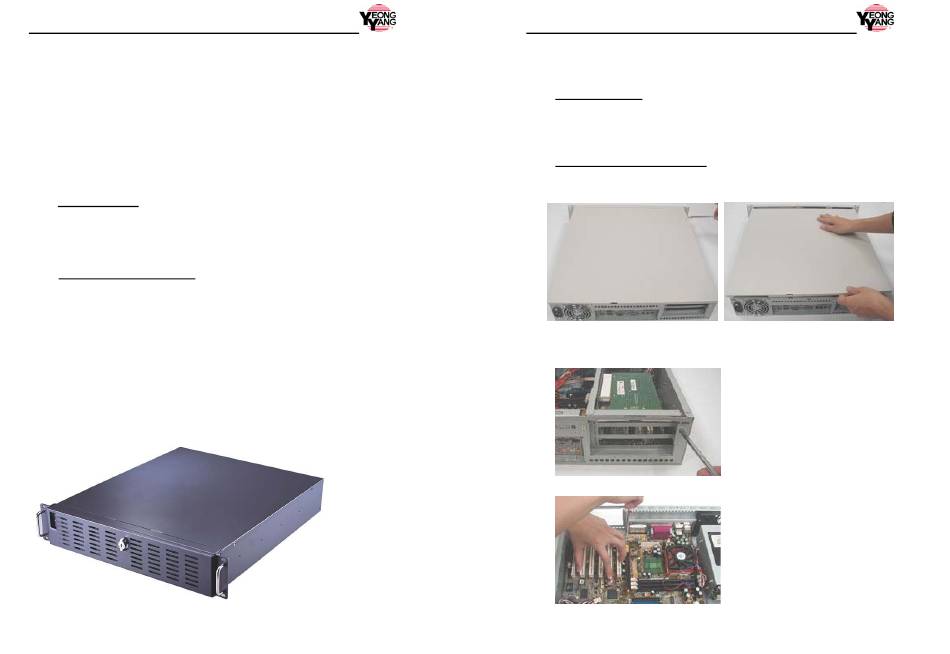

YY-R226
19" Rackmount Chassis
Technical Instruction
I. INTRODUCTION
1. This Cabinet
YY-R2 series 2U 19" rackmount cases are designed for supplying the
best solution of thermal, modules and EMI for various industrial,
business server and telecommunication applications.
2. Component Checklist
Standard Components
♦Chassis
YY-R226
♦
ATX rear window
3 slots PCI
♦Cooling Fan
8cm ball bearing cooling fans
Optional Components
♦Power Supply
PS2 PSU ATX 250~400W; DC to DC
♦Riser Card
various connectors (i.e. PCI+AGP...)
♦
Rear Window
3 slots PCI.
♦
Slide kits
20"telescopic slides are suggested
ZZ17-21002-A
1
II. System Assembly and Disassembly
1. Control Panel
Power LED , HDD LED, USB ports, Power Switch/ Reset switch
2. System assembly steps
2.1. To remove top cover
Loose screws, pull it back and lift up
2.2. Motherboard installation
2
Remove the riser cardholder
first.
Check motherboards mounting
position, install the metal
standoffs into mounting plate.
Install spacer into motherboard.
To mount motherboard onto
the mounting plate, screw in.
(I/O shield must be squeezed
from inside chassis to outside)
ZZ17-21002-A
Advertisement
Summary of Contents for Yeong Yang YY-R226
- Page 1 YY-R226 II. System Assembly and Disassembly 19” Rackmount Chassis 1. Control Panel Technical Instruction Power LED , HDD LED, USB ports, Power Switch/ Reset switch 2. System assembly steps I. INTRODUCTION 2.1. To remove top cover Loose screws, pull it back and lift up 1.
- Page 2 2.3. Power Supply Installation 2.4. 3.5” & 5.25” devices PS2 power supply: assembly Screw the power supply holder Loosen (4) screws, lift up 3.5” & onto chassis. 5.25” driver bracket. Plug the AC inlet adaptor cable to the AC socket. Then tighten power supply with brackets and screws.
- Page 3 2.5. HDD assembly 2.6. Riser card, add-on card Remove the 3.5” HDD driver installation bracket. To assemble riser card into riser card holder. To slot in add-on cards into riser card and screw in bracket. To slot in daughter board of riser card into 5 PCI slot.
- Page 4 2.7. Cable routing Cooling fan could be connected into motherboard, or connect to power supply through an connector changer. Flat cables suggested to be route well by cable tie and cable clip. 2.8. Close top cover Close the top cover with 4 screws.
