Summary of Contents for Amylior PD-A20608

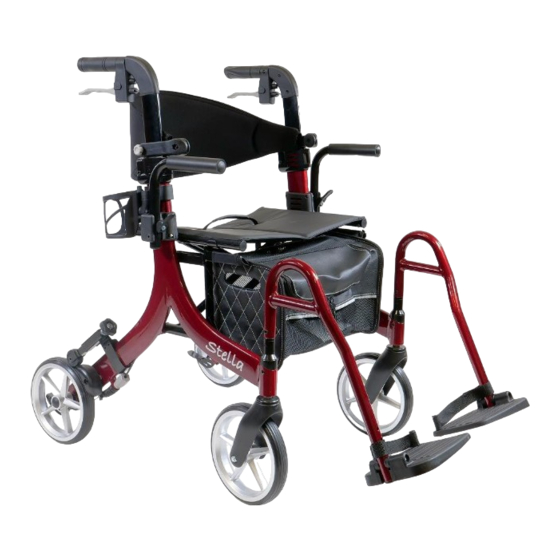

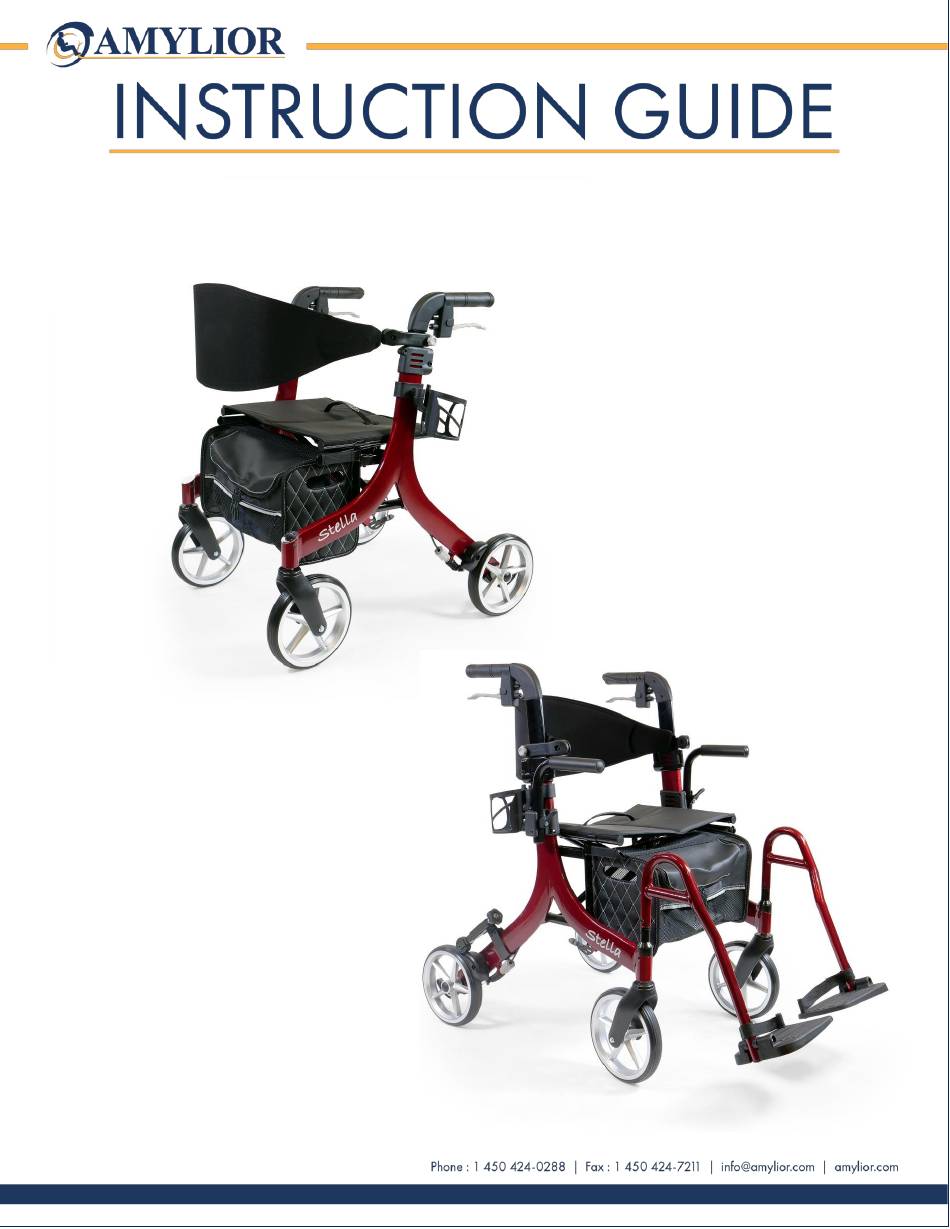

- Page 1 STELLA ROLLATOR ACCESSORY INSTALLATION IG – PD-A20608 – Rev01...
- Page 2 1.5 Brake pressure adjustment. 1.5.1 Loosen both bolts with the 14 mm combination wrench to allow the knob to turn. 1.5.2 Adjust brake pressure by 1.5.3 When the desired pressure is obtained, tightening/loosening the knob. tighten both bolts. IG – PD-A20608 – Rev01...
- Page 3 3.3 Snap both parts onto the frame as shown below. 3.4 Adjust angle of each part as needed. 3.5 Remove both parts. 3.6 Tighten screws. 3.7 Reinstall both parts at the same location as step 3.3. IG – PD-A20608 – Rev01...
- Page 4 4.4 Insert footrest into fork recess. 4.5 Insert screws one after the other, without fully tightening to make sure that the screws are properly aligned. 4.6 Tighten both screws with the 4 mm Allen key. IG – PD-A20608 – Rev01...
- Page 5 5.3 The armrest activation tension can be adjusted by tightening or loosening the screw, using a 4 mm Allen key and a pair of pliers on the release tab side. IG – PD-A20608 – Rev01...
