HALO Max Stand Assembly Instructions
This medical stand was designed and manufactured exclusively for our HALO Max device with the outmost care in safety, mobility
and professional use. We partnered up with
Pryor Products manufactures world-class, industry-leading Class I medical device
mobility products for the healthcare industry.
1
Advertisement
Related Manuals for Halo Max
Summary of Contents for Halo Max
- Page 1 HALO Max Stand Assembly Instructions This medical stand was designed and manufactured exclusively for our HALO Max device with the outmost care in safety, mobility and professional use. We partnered up with Pryor Products manufactures world-class, industry-leading Class I medical device...
- Page 2 HALO Max stand arrive s in box with the following weight and measurements: 68 Inches tall 172 Centimeters tall 20 Inches wide 50 Centimeters wide 9 inches deep 23 Centimeters deep Weights 40 lbs. Weights 18 Kilograms Quick tip: This box is bulky, although 1 person can manage the box and assemble this stand alone, its best to...

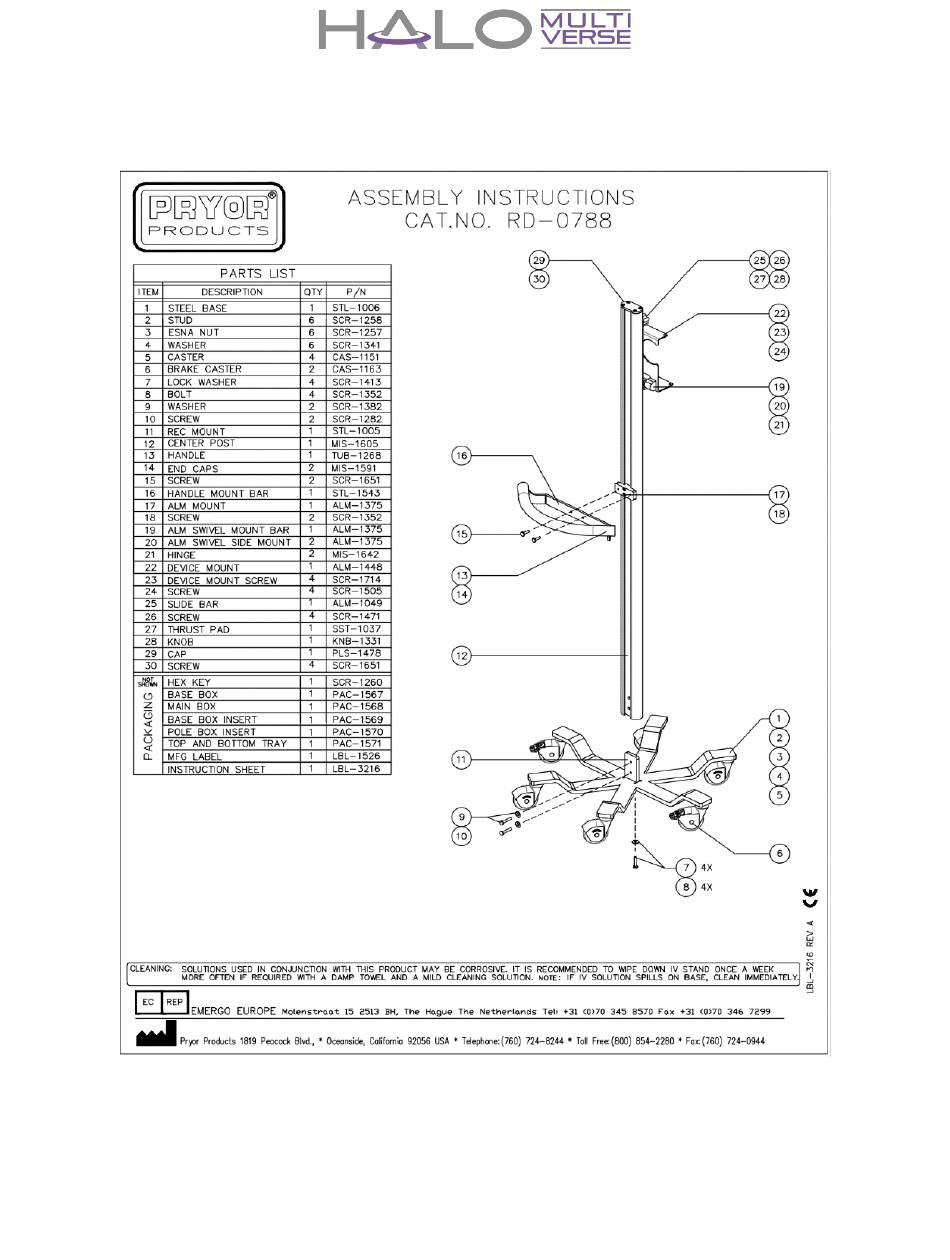

- Page 3 Main Components inside the box • Wheelbase (6 wheels) • Center Post with bracket (for HALO Max device) • Handle Quick tip: Be careful not to throw away the plastic bag with the screws and bolts. It is easily missed and...
- Page 4 Use a hex key/allen wrench to remove 4 bolts from the bottom of the post as seen below Drop center post into wheelbase stem and secure...
- Page 5 Secure center post to wheelbase with 2 bolts included in the bag Remove 2 bolts from back of center post...
- Page 6 Attach handle to the back of the post with the same 2 bolts Now place stand flat on the floor, exposing the bottom side of the wheelbase. Secure with 4 bolts previously removed as shown below.
- Page 7 Your HALO Max stand should look like this and is ready for your HALO Max...
- Page 8 Attach HALO Max device to bracket by way of 4 screws 2 on top and 2 on bottom...
- Page 9 You are now ready to activate your HALO Max Therapy For more information, please contact: Halomultiverse.com haloinfo@halomultiverse Customer Service 888-669-4256...
