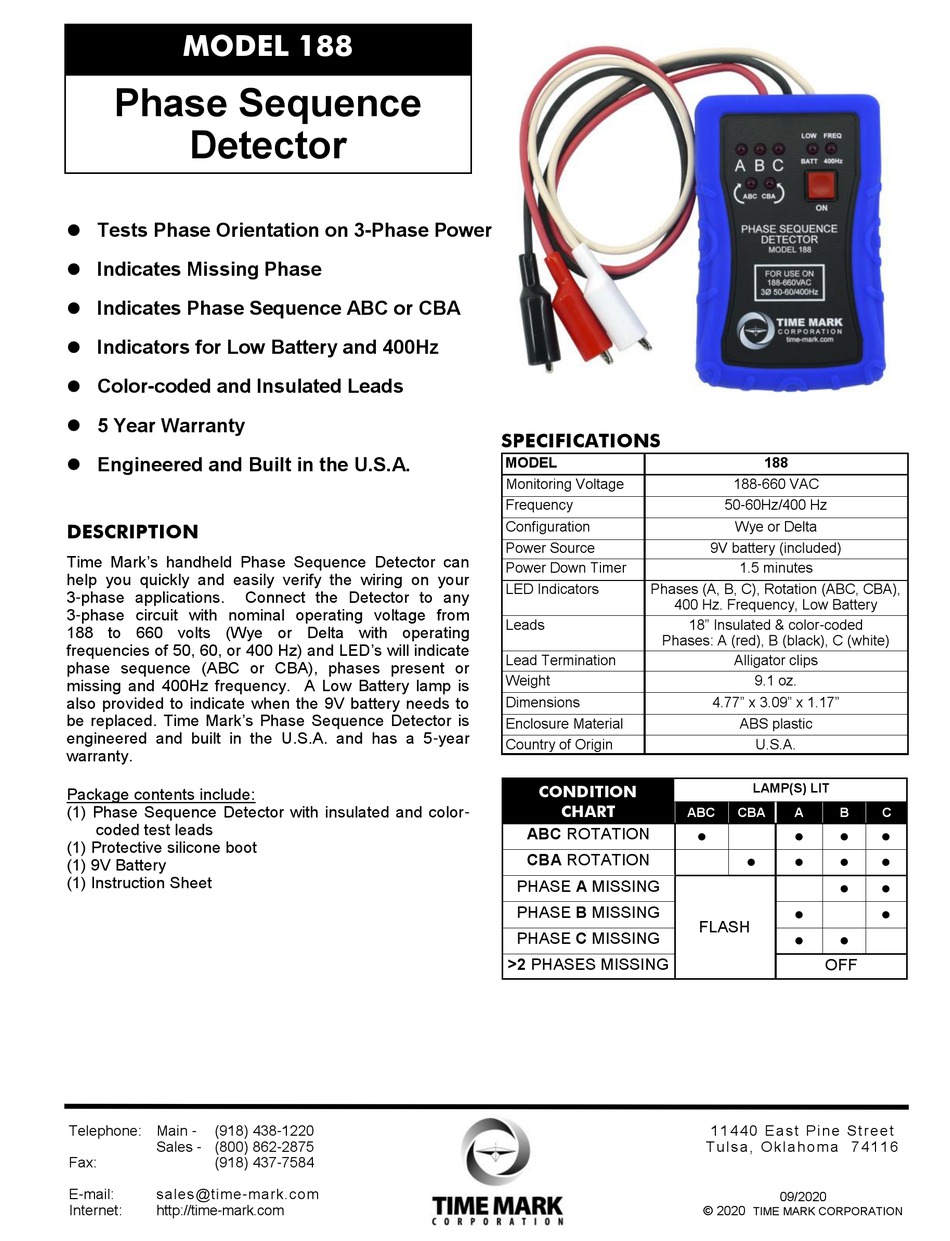

TIME MARK 188 Quick Start Manual

MODEL 188
Phase Sequence
Detector
⚫ Tests Phase Orientation on 3-Phase Power
⚫ Indicates Missing Phase
⚫ Indicates Phase Sequence ABC or CBA
⚫ Indicators for Low Battery and 400Hz
⚫ Color-coded and Insulated Leads
⚫ 5 Year Warranty
⚫ Engineered and Built in the U.S.A.

DESCRIPTION

Time Mark's handheld Phase Sequence Detector can
help you quickly and easily verify the wiring on your
3-phase applications. Connect the Detector to any
3-phase circuit with nominal operating voltage from
188 to 660 volts (Wye or Delta with operating
frequencies of 50, 60, or 400 Hz) and LED's will indicate
phase sequence (ABC or CBA), phases present or
missing and 400Hz frequency. A Low Battery lamp is
also provided to indicate when the 9V battery needs to
be replaced. Time Mark's Phase Sequence Detector is
engineered and built in the U.S.A. and has a 5-year
Warranty.
Package contents include:
(1) Phase Sequence Detector with insulated and color-
coded test leads
(1) Protective silicone boot
(1) 9V Battery
(1) Instruction Sheet
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://time-mark.com

SPECIFICATIONS

MODEL
Monitoring Voltage
Frequency
Configuration
Power Source
Power Down Timer
LED Indicators Phases (A, B, C), Rotation (ABC, CBA),
400 Hz. Frequency, Low Battery
Leads
Phases: A (red), B (black), C (white)
Lead Termination
Weight
Dimensions
Enclosure Material
Country of Origin
CONDITION
CHART
ABC ROTATION
CBA ROTATION
PHASE A MISSING
PHASE B MISSING
PHASE C MISSING
>2 PHASES MISSING
188
188-660 VAC
50-60Hz/400 Hz
Wye or Delta
9V battery (included)
1.5 minutes
18" Insulated & color-coded
Alligator clips
9.1 oz.
4.77" x 3.09" x 1.17"
ABS plastic
U.S.A.
LAMP(S) LIT
ABC CBA A B
• • •
• • •
•
•
FLASH
• •
OFF
1 1 4 4 0 E a s t P i n e S t r e e t
Tu l s a , O k l a h o m a 7 4 1 1 6
09/2020
© 2020
TIME MARK CORPORATION
C
•
•
•
•
