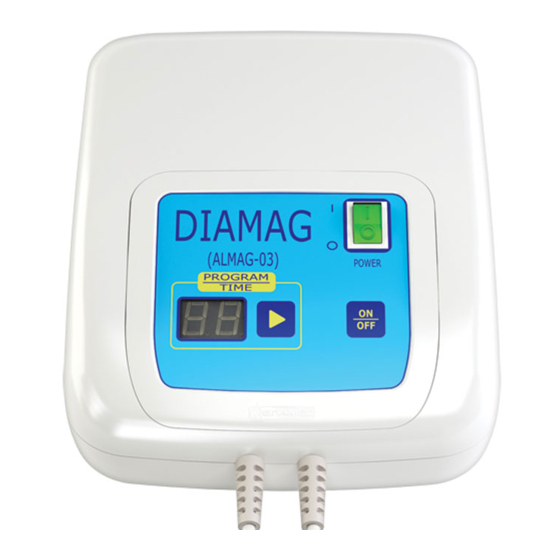

DIAMAG
Dear Customer!
Thank you for purchasing DIAMAG, a device specially designed for
treatment of brain diseases with a low-frequency, low-intensity pulsed
magnetic field at home.
The procedures done by the patient at home do not require special
training or special skills. Please make sure to carefully study the medi-
cal Operating Manual before starting the procedures and correctly fol-
low the treatment methods. This will ensure the most efficient use of
the device.
ATTENTION! The device should be used to treat the diseases
!
listed in the «Indications» section only after a precise diagnosis
has been established.
ATTENTION! No special training or skills are required to carry
!
out the procedures by the patient at home. To ensure efficient
use of device, please carefully study this Operating Manual.
This Operating Manual is a document identifying the basic technical
characteristics and parameters of the device, indications for its use and
the treatment procedures certified by the Manufacturer.
Please keep the Operating Manual throughout the whole service life.
When handing DIAMAG over to another user, please make sure to
hand in the Manual as well.

TABLE OF CONTENTS

Operating Manual
3
5
7
7
7
7
9
13
18
18
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIAMAG and is the answer not in the manual?

Questions and answers

Related Manuals for Elamed DIAMAG

Summary of Contents for Elamed DIAMAG

  • Page 1: Table Of Contents

    Manufacturer. Please keep the Operating Manual throughout the whole service life. When handing DIAMAG over to another user, please make sure to hand in the Manual as well. TABLE OF CONTENTS...
  • Page 2 DIAMAG Guidance and manufacturer’s declaration – electromagnetic emissions and immunity Acceptance Certificate Manufacturer`s Warranty SYMBOLS ON THE DEVICE Warnings related to safety and effective operation. The housing is protected with reinforced insulation. No safety grounding is required. Read the Operating Manual carefully.

  • Page 3: Safety Instructions

    The DIAMAG device is to be connected only to a properly functioning socket with an operating voltage of ~220- 230V/50Hz or ~120V/60Hz (see marking).
  • Page 4 DIAMAG Instructions on environmental protection: Dispose of the device upon termination of its service life as electronic waste at specialized recycling points. Exclusion of liability: the Manufacturer shall not be held liable for damages resulting from non-observance of the above in- structions.

  • Page 5: Intended Use And Operating Principle

    DIAMAG INTENDED USE AND OPERATING PRINCIPLE The device is designed for physiotherapy of brain diseases with a low-frequency low-intensity magnetic field. The device can be applied at physiotherapy departments and offices of healthcare facilities, as well as in home conditions by the patients themselves upon doctor`s advice.
  • Page 6 DIAMAG The «travelling» type field is one which produces sequential excitation of all the emitters of the flexible lines, running from the 1 emitter to the 6 in cycles (Fig.3). The «travelling» field, depending on the program selected, is formed either with single or ‘grouped’...

  • Page 7: Transportation And Storage

    -50 °С to +50 °С and relative air hu- midity of up to 98%. DELIVERY SET The complete delivery set of DIAMAG is listed in Table 1. Table 1 Item Quantity...
  • Page 8 During treatment of migraine attacks with DIAMAG, the patients stated either a complete relief of the pain attack without using pain- Operating Manual...

  • Page 9: Directions For Use

    DIAMAG killers or a decrease in its intensity to a tolerable level that did not require using painkillers. DIRECTIONS FOR USE PREPARATION OF THE DEVICE FOR OPERATION After storage in cold premises, the device should be warmed up to room temperature for 4 hours before use.
  • Page 10 DIAMAG The LED on the indicator starts flashing when placed against the working surfaces of the emitting lines, confirming the magnetic field presence. In order to fix the emitter lines on the patient's head, use special elastic bands. To do this, place the flexible emitting lines against one another as shown in Figure 5.
  • Page 11 DIAMAG Use of the DIAMAG Device Using the «POWER» switch, turn the device power on. With that, the number of the last program used shall be displayed in the control board display box (Fig. 8). With the help of the «PROGRAM» button, set the number of the required program (to be selected as per the «Treatment Procedures»...
  • Page 12 DIAMAG Parameters of the Exposure Programs Program 1 Type of pulsed magnetic field travelling Exposure mode continuous Action mode by pulse packets Repetition frequency of pulse packets / sec Pulse frequency within the packet / sec Field density, mT Exposure time, min.

  • Page 13: Treatment Procedures

    (cerebral arteriosclerosis) at all stages. DIAMAG is used for treatment of the after-effects of a cerebrovascu- lar accident in the acute and sub-acute periods, and the period of re- sidual effects. In the acute period, treatment by DIAMAG is provided...
  • Page 14 (cerebral arteriosclerosis) in the sub-acute period and the period of residual effects. If a patient has previously been under DIAMAG treatment in a specialized care unit, then (s)he or their relatives need to confirm the treatment methods with the doctor who had previously appointed the treatment with DIAMAG to ensure the most effective use.
  • Page 15 Migraine, migraine neuralgia. ATTENTION! With migraine patients, you must always have DIAMAG at hand to be able to carry out the procedure at the first sign of an incipient migraine attack. Timely procedures help to prevent the attack.
  • Page 16 The best procedure duration is until the pain ceases + 2 minutes af- ter that. For instance, when a patient is suffering from a migraine attack and starts the treatment procedure with DIAMAG, the pain stops after 12 minutes. The exposure should then continue for another 2 minutes before the procedure is ended.
  • Page 17 DIAMAG life. Treatment with the DIAMAG device is needed to prevent further degeneration of the cells and to stimulate their further functioning. Treatment method The emitters are placed on the patient's head with the «N» (north) side towards the head so that the No. 1 emitters of each line are over the occipital region, the middle emitters pass over the auricles, and the No.

  • Page 18: Maintenance Support

    The procedures are carried out once a day. The course length is 10- 20 days. MAINTENANCE SUPPORT Maintenance of the DIAMAG device includes preventive inspection, cleaning from dust and dirt, disinfection, and periodic control of its op- erability. The periodic control of the device operability is to be carried out at least once a year.
  • Page 19 DIAMAG 4.2. Device electric power consumption: 10 VA. 4.3. The device generates pulsed magnetic fields of the following types and parameters: a) field types: - «travelling», when there is a serial actuation of all the emitters of the flexible emitting lines from the 1...
  • Page 20 DIAMAG 4.6. The surface temperature of the emitters of the flexible emitting lines does not exceed 41 ºС. 4.7. The setting time of the device operating mode does not exceed 60 s. 4.8. The flexible emitting lines contain labeling of the magnetic field pole: «N»...
  • Page 21 DIAMAG Guidance and manufacturer’s declaration – electromagnetic emissions and immunity Medical electrical equipment needs special precautions regarding EMC and needs to be installed and put into service according to EMC in- formation provided in this document. Attention! The use of mobile radio frequency media may affect MEDICAL ELECTRICAL EQUIPMENT.
  • Page 22 DIAMAG • The use of accessories other than those specified for the device is not recommended. They may result in increased emissions or decreased im- munity of the device Guidance and manufacturer’s declaration – electromagnetic immunity These devices are intended for use in the electromagnetic environment specified below.
  • Page 23 DIAMAG Portable and mobile RF Conducted RF 3 Vrms Complies communications equip- IEC 61000-4-6 150 kHz to 80 ment should be used no closer to any part of the device, including cables, Radiated RF 3 V/m Complies than the recommended IEC 61000-4-3 80 MHz to 2.5...
  • Page 24 DIAMAG Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
  • Page 25 GIKS.941519.106 and is hereby vali- dated as ready-for-service. Date of production _____________________Stamp ______________________________________________ (signature of a person responsible for acceptance) DIAMAG magnetotherapy device is packed according to the re- quirements specified in the design documentation. Date of packing _____________________ Packed by _____________________...
  • Page 26 Please send the device for repairs, together with the Operating Manual and an enclosed explanatory note, to the following address: Manufacturer: ® Yelatma Instrument Making Enterprise, JSC (ELAMED 25 Yaninа St.,Yelatma, Kasimov District, Ryazan Region 391351 Russia e-mail: global@elamed.com tel. +7 (495) 669-1044 www.elamed.com...
  • Page 27 DIAMAG Operating Manual Page 27...
  • Page 28 DIAMAG Operating Manual Page 28...
