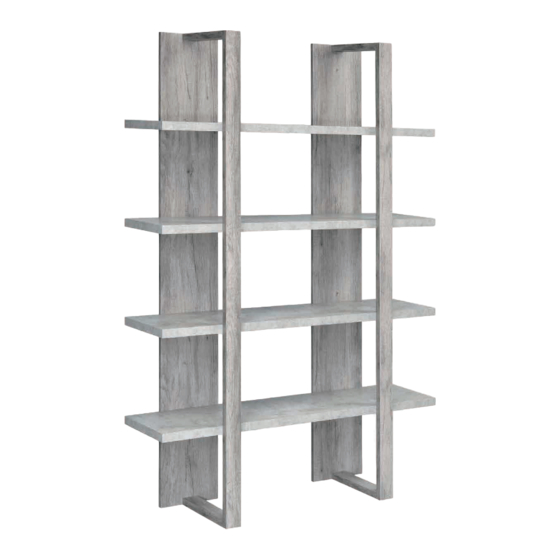

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 882037 BOOKCASE REVISION 0 : 11/26/2020 PAGE 1 OF 7 COASTERFURNITURE.COM...
-
Page 2: Assembly Tips
882037 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. - Page 3 882037 ITEM: STEP 1 x 32 A x 3 x 12 D x 2 INCORRECT CORRECT E x 4 STEP 2 Apply glue on all wooden dowels to ensure integrity of the structure. PAGE 3 OF 7 COASTERFURNITURE.COM...
- Page 4 882037 ITEM: STEP 3 Apply glue on all wooden dowels to ensure integrity of the structure. STEP 4 x 12 x 12 PAGE 4 OF 7 COASTERFURNITURE.COM...
- Page 5 882037 ITEM: STEP 5 STEP 6 COMPLETE PAGE 5 OF 7 COASTERFURNITURE.COM...
- Page 6 882037 ITEM: 432mm(17") 309mm(12.17") 295mm(11.61") 334mm(13.15") 334mm(13.15") 60mm(2.36") 334mm(13.15") 611mm(24.06") 309mm(12.17") Note : Dimension tolerance ±5% PAGE 6 OF 7 COASTERFURNITURE.COM...
- Page 7 ANTI-TIPPING INSTALLMENT INSTRUCTIONS FURNITURE TIPPING RESTRAINT WARNING Injury may result from tipping furniture. This restraint may protect against tipping furniture. Do not allow children to climb on furniture. This restraint is not a substitute for proper adult supervision. Failure to detach this restraint before moving the furniture may result in injury and damage.
