Summary of Contents for Kaidi KDDY008B
- Page 1 User Manual 1.System connection diagram FCC ID: 2AOTUKDDY036 FCC ID: 2AOTUKDH139 2.Product list Mane model Quantity Handset KDH139 power KDDY01B Control box KDDY036 Actuator1 KDYJT014-025 Actuator2 KDYJT014-026 1 / 3...

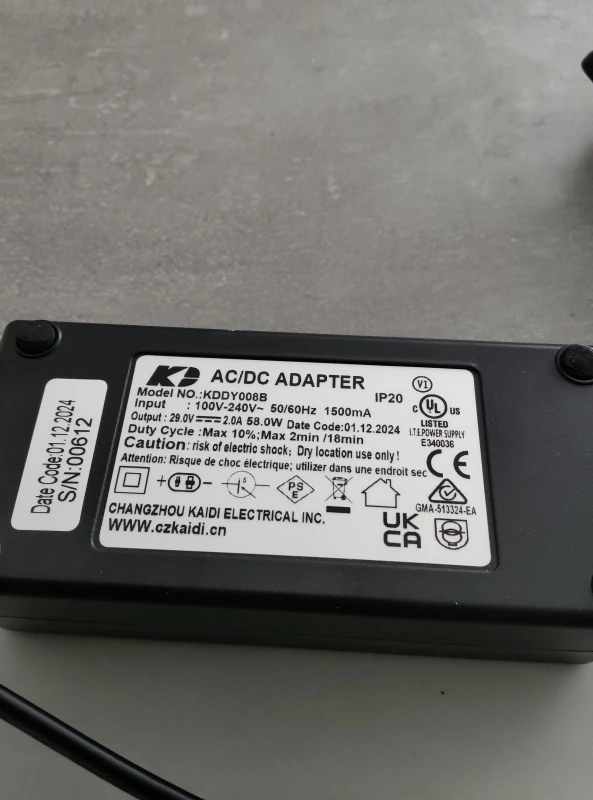

- Page 2 3.Performance parameter 1. Power performance parameters： INPUT AC100～240V 50/ 60Hz OUTPUT 29V DC / 2A Max output 29VDC/4A 2. Control box performance parameters INPUT 29V DC Actuator output 29VDC/4A Overcurrent protection 5A(single) 3.Actuator performance parameters： Actuator1 Actuator2 29VDC/ 4A No-load speed 4-6mm 4-6mm Installation size...
- Page 3 the corresponding functions. 5.Matters needing attention 1、Children, the elderly and people with disabilities, please use under supervision; 2、Do not plug or unplug any cables while the power is on, it may cause malfunction of the operation function. If this happens, you can cut off the main power, and then reconnect it after about 30s to recover;...
Need help?
Do you have a question about the KDDY008B and is the answer not in the manual?
Questions and answers
Charging 24v batterypack
To charge a Kaidi KDDY008B 24V battery pack, use a suitable charger such as the KDDY008F or KDDY008B. You will need a figure-8 lead cable if using these chargers. Charging takes approximately 8 hours, and the charger has a red/green light indicator to show when charging is complete.
This answer is automatically generated
