Open Text Tableau Forensic TX1 Quick Reference Manual

QUICK
REFERENCE GUIDE
Tableau Forensic TX1 Imager

BEFORE USING THE UNIT

Free firmware updates are provided for Tableau Forensic products on a regular basis.
As a best practice before using the unit, we recommend confirming it is running current
firmware. Follow the steps below to confirm the unit is running current firmware:
1. On a Windows PC, visit the Tableau Download Center and download the
Tableau Firmware Update (TFU) installer file –
security.opentext.com/tableau/download-center
2. With TX1 off, remove the TX1's SD card from the back of the unit by firmly
pushing the SD card inward until it clicks, then release.
3. Connect the SD card to the Windows PC and run the TFU utility.
TFU automatically determines if the firmware on the SD card is current or if an
update is available. If an update is available, it can be applied on command.

PRODUCT INTRODUCTION

TX1 operates as a standalone device or with the TX1-S1 Drive Bay for forensic
triage and collection of digital media. The Drive Bay offers cable-less SATA/SAS
destination drive connections and drive cooling.

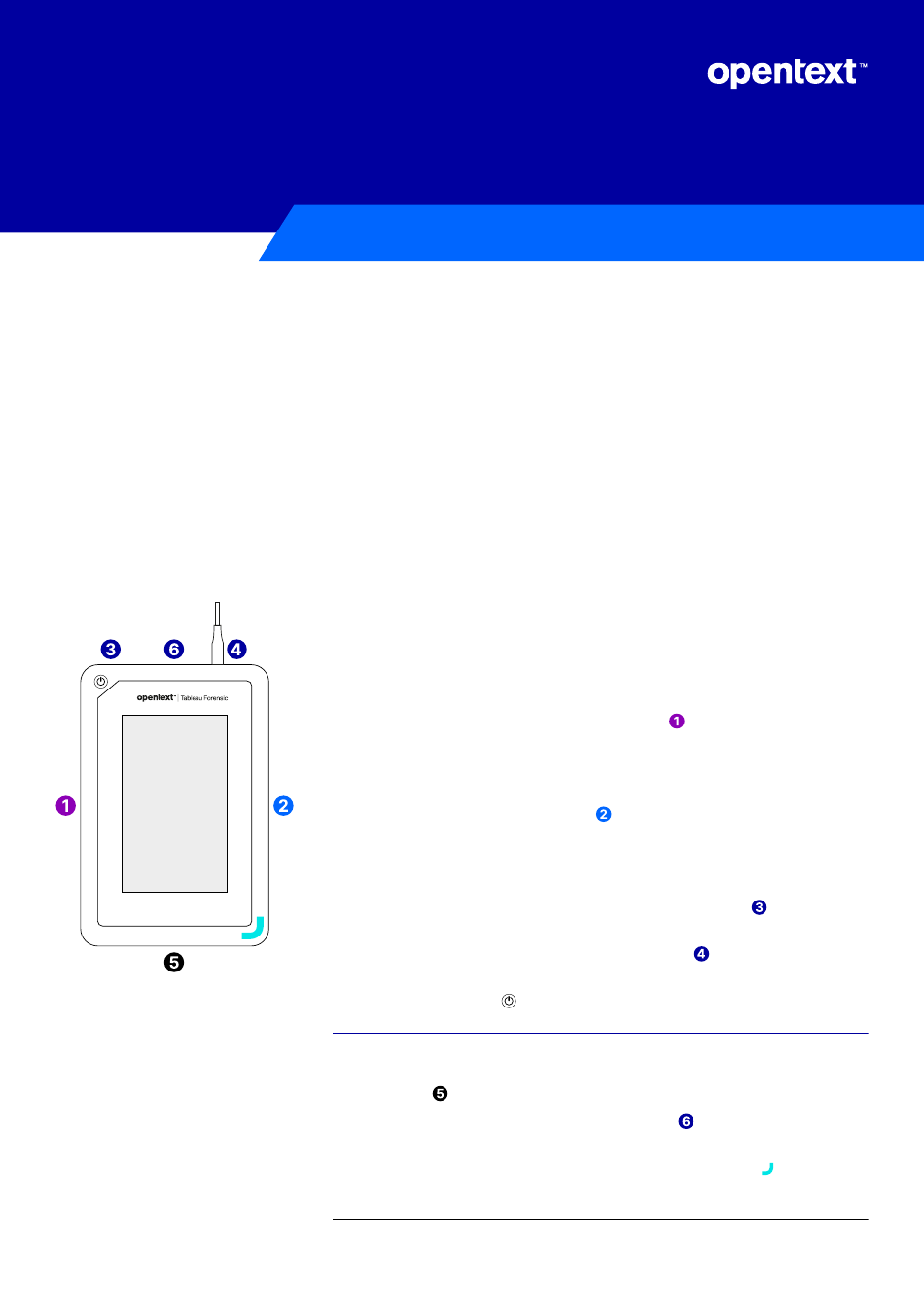

1. Source Drive(s) – Connect one or more drives to the TX1's source (left) side:
SATA/SAS (x2), USB 3.0, PCIe*, FireWire, or IDE**
* TX1 needs to be powered off and a Tableau PCIe Adapter is required to connect PCIe media.
** The Tableau IDE-PCIe Adapter [TDA7-5] is required to connect IDE drives.
2. Destination Drive(s) – Connect one or more drives to the TX1's destination
(right) side: SATA/SAS (x2) or USB 3.0
more 2.5" or 3.5" SATA/SAS drives.
* With TX1 powered off, align TX1 into place on top of the TX1-S1 and then slide TX1 to lock it
in place. See product labels or User Guide for additional instructions.
3. Ethernet – Connect a network cable to the TX1's Ethernet port
network shares. Network shares can be mounted as sources or destinations.
4. Power – Connect the power supply to the TX1's DC In
5. Power On – Press the power button and begin operation through the TX1's
touch-screen interface
USB 3.0 Accessory Ports (Optional) – Connect a USB storage device to save
log files or a USB keyboard for easier data entry via the two front USB 3.0
ports on TX1 .
SD Card Slot – SD card contains the TX1's firmware
insert this SD card into a Windows PC and run Tableau Firmware Update (TFU).
Status LED – Located in lower right corner of the TX1's top panel
White: TX1 starting up, Blue: active job, Green: job successful, Off: idle, Red: error
.
