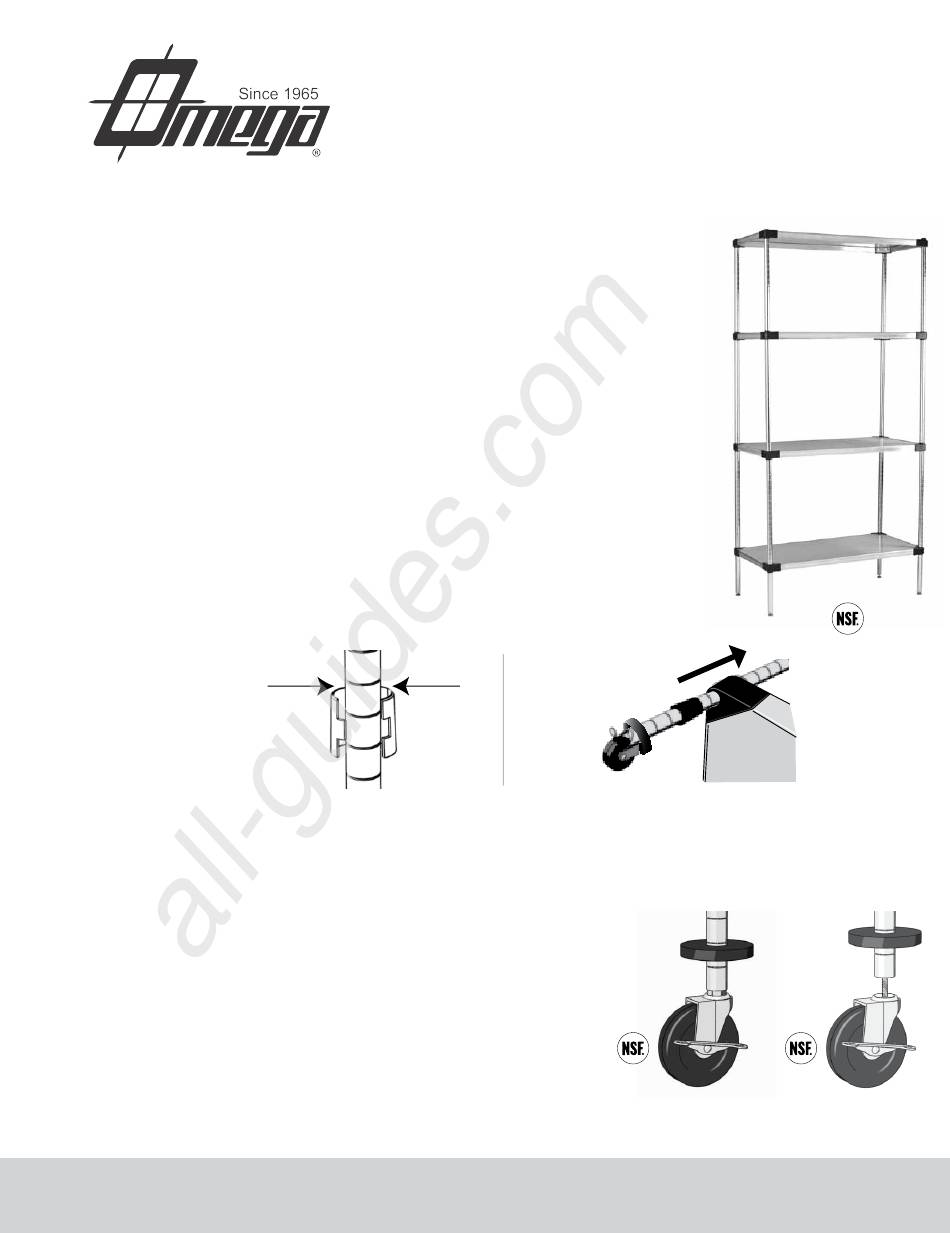

Omega Solid Stainless Steel Shelving Quick Start Manual

Note: Please dispose of loose, round plastic pieces. These are used to separate the shelves for shipping purposes.
Helpful Hint: When placing the plastic tapered sleeves onto the posts (Step 1), slide the plastic tapered
sleeves up or down on the post until you feel it "snap" into the lines or grooves of the post. It is normal to have
a slight gap in-between the two pieces of the plastic tapered sleeves when it is placed on the post.
Step 1 For mobile version, install casters into bottoms of posts.
Choose the desired height of the bottom shelf (for added stability, it is recommended
Step 2
that the bottom shelf is installed no more than 6"(2 – 3 lines) from the floor and the
top shelf no more than 6"(2 – 3 lines) from the top.) Snap two (2) tapered sleeves,
with the word UP on top, at the desired height on each post. Shelves can be adjusted
every 1". (Note: Double grooves in the posts are placed every 8th groove for simple
shelf height reference.)
Step 3 Place shelf on its side, making sure the wider portion of the four (4) round shelf collars are
facing the bottom of the unit, slide the top of the posts through the round shelf collars on each
corner of the shelves. Push the shelves firmly onto the tapered sleeves.
Step 4 After installing the bottom shelf, set the unit upright.
Snap the tapered sleeves into place on posts at the next desired shelf height. Slide
Step 5
the shelf down from the top of the posts onto the tapered sleeves and repeat this
step for the remaining shelves. (Note: A rubber mallet may be used to tap each corner
of the shelves so they firmly install onto the tapered sleeves. Note: The leg levelers may
need to be utilized in order to make the unit level or flush against the wall.)
HEAVY OBJECTS MUST BE PLACED--NOT DROPPED--ONTO THE SHELVES!!
WARNINg:
DIAgRAM 1
5" TRP Stem Casters with Bumpers
Model# FTPRCST5
Polyurethane Stem Casters with Bumpers
Model# FSCAST5 5"
Polyurethane Threaded Casters with Bumpers
Model# FTCAST5 5"
Slide a plastic bumper up the bottom of post about 4˝ - 6˝, smooth side facing up.
Step 1
For stem - Install caster by inserting it into the hole in the bottom of the post.
Step 2
For screw-in - Remove leveling assembly by turning it counter-clockwise.
Install caster by screwing it into the hole at the bottom of the post.
Step 3 Slide the plastic bumper down to the bottom of the post.
Step 4 Repeat these steps to install the remaining 3 casters.
Then assemble shelving unit.
Step 5
Note: The casters can be locked in place by turning the steel lock mechanism
counter clockwise on the side of two of the casters.
Weight capacity - Stem - 300 lbs. per caster Screw-In - 200 lbs. per caster
Call Customer Service at 1-800-221-8665 | Fax 631-563-5041 | www.precisiontools.com
All manuals and user guides at all-guides.com
Solid Stainless Steel Shelving
Top
Top
ASSEMBLY
INSTRUCTIONS
DIAgRAM 2
5" Industrial Stem
Casters with Bumpers
5" Industrial Screw-In
Casters with Bumpers
rev. 1112
