OPERATION AND MAINTENANCE
MANUAL
BATTERY-POWERED TORQUE WRENCHES
IMPORTANT SAFETY INFORMATION ENCLOSED.
READ THIS MANUAL BEFORE OPERATING TOOL.
IT IS THE RESPONSIBILITY OF THE EMPLOYER TO
PLACE THE INFORMATION IN THIS MANUAL INTO
THE HANDS OF THE OPERATOR. FAILURE TO
TBEW
MODEL：
OBSERVE THE FOLLOWING WARNINGS COULD
RESULT IN INJURY.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Fuel TBEW
- Page 1 IMPORTANT SAFETY INFORMATION ENCLOSED. READ THIS MANUAL BEFORE OPERATING TOOL. IT IS THE RESPONSIBILITY OF THE EMPLOYER TO PLACE THE INFORMATION IN THIS MANUAL INTO THE HANDS OF THE OPERATOR. FAILURE TO TBEW MODEL： OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.

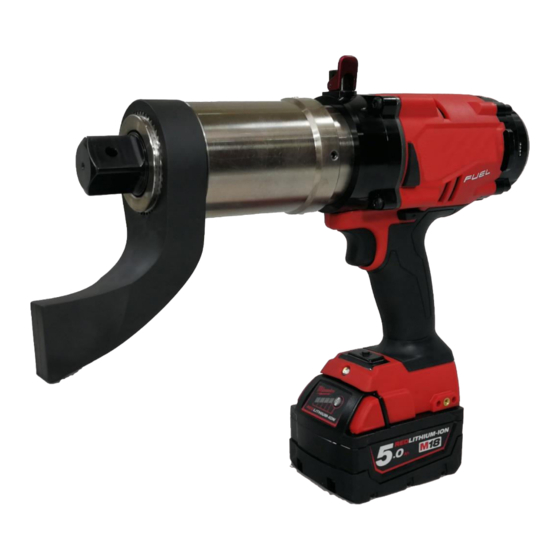

- Page 2 2.0 Functional Description Product Overview：TBEW series battery torque wrench is a hand-held rotary power tool, with a reaction arm, can be precisely set the torque for the completion of a nut or bolt tightening / loosening job, with a torque compensation function which can help clients calibrated when they doubt the output accuracy: drive part with high-efficiency brushless DC motor, high-speed smart chip control, LED display, mechanical parts using planetary gear mechanism.
- Page 3 Battery torque wrench component 1-SQUARE DRIVE 2-REACTION ARM 3-GEAR BOX 4-LOCKING BUTTON 5-MOTOR 6-TRRIGER TO START 7-SWITCH POWER ON/OFF 8-REMOVE BATTERY BUTTON 9-BATTERY 10-LED SCREEN 11-WORK INDICATING LAMP 12- TORQUE INCREASE 13-CONFIRM BUTTON 14- REDUCE TORQUE 15-LOOSEN OR TIGHTEN BUTTON PRESS NO.7 SWITCH ON/OFF, NO.10 SHOWS SYSTEM START, PRESS NO.7 AGAIN SYSTEM STOP AND POWER OFF Page 3...
- Page 4 IMPORTANT WHEN USING THE TOOL (TIGETHNING OR LOOSENING) LOCKING BUTTON: ADJUST THE MOTOR POSITION (UNLOCK HELPS USER EASIER TO ADJUST POSITION OF HANDLE) UNLOCK（MOTOR FREE ROTATING SEPERATE WITH GEAR BOX） LOCK（PULL THE BUTOON UP） BEFORE PRESS THE NO.6 TRIGGER, FIND A STRONG ENOUGH REACTION POINT FOR THE NO.2 REACTION ARM AND PULL THE BUTTON UP TO LOCK THE MOTOR.
- Page 5 SWITCH NO.15 Tighten OR Loosen LED SCREEN INFO BATTERY PRESET TORQUE REACH TORQUE REVERSE AUTO OFF /AUTO AUTO REVERSE FUNCTION：PRESS“+”BUTTON AND HOLD FOR 1-2 SECOND，IT WILL CHANGE TO AUTO ON, WHEN TIGETHNING THE NUT, WHEN REACH TORQUE KEEP HOLD THE NO.6 TRIGGER WRENCH WILL AUTO REVERSE FOR 15 DEGREE (THE AUTO REVERSE WORK ONLY WHEN THE USER KEEP HOLDING THE NO.6 TRIGGER).
- Page 6 Second operating model-------Bolt grade selection Press“C”button，enter bolt size select，Press“+” “-”button and move top of the“M” Press “C” button， enter bolt size select， Press “+” “-” button to change bolt grade (DIN Standard bolt)； Press“C”button，enter bolt grade select，Press“+” “-”button to select the bolt grade；...
- Page 7 torque compensation process. Torque compensation function may need several times to adjust in order to reach the target calibration result This torque output accuracy should be calibrated in every 6 month if it needs. 5.0 Operation process 1. Press the No.7 button switch on the wrench 2.
- Page 8 8.6 Avoid erroneous holding machine posture. When operating the machine to make sure footing and to keep in balance. Correct operating posture can help you in emergency situations in a timely manner to control power tools. 8.7 wear suitable clothes. Not too loose clothes to wear at work , it can not wear jewelry. Keep your hair , clothing and gloves touching the rotating parts of the machine .
