Instructions for
Multicooker
Applicable to the following models:
Your agent:
We, manufacturer
hereby declare that these products comply with the following standards:
Low Voltage Directive
EMC Directive
ROHS Directive
Food contact
WEEE
Standards:
Romanel-sur-Morges, June 15th, 2017
Date de création: 29.03.07
Fabrique SA
VMC-3

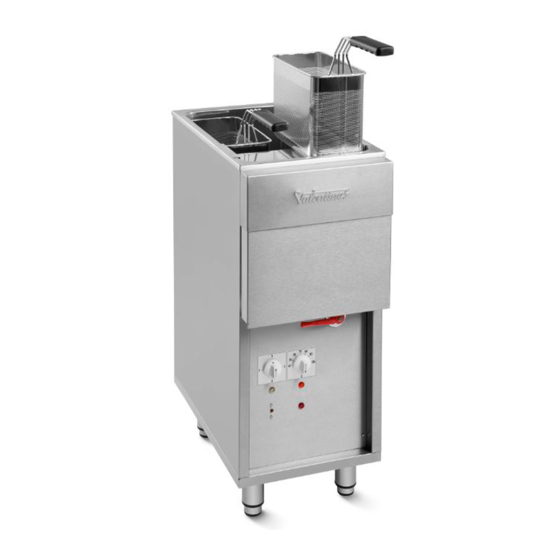

Multicooker VMC-3
on feet
DECLARATION OF CONFORMITY
Valentine Fabrique SA
Z.I. Moulin-du-Choc E
CH – 1122 Romanel-sur-Morges
Tél.: +41 21 637 37 40
Mail :
info@valentine.ch
2014/35/UE
2014/30/UE
2011/65/UE
1935/2004/CE
2012/19/UE
IEC 60335-1:2013 (ed.5.1) +am2 2016
IEC 60335-2-47:2002 (ed.4.0)
EN 60335-1:2012;+A11
IEC 60335-2-50 2017 (ed.4.2)
EMC: CISPR 14-1 (ed.5);am1 ;am2
CISPR 14-2 (ed.1);am1 ;am2
EN 55014-1 :2006 ;am1 ;am2 2011
EN 55014-2 :1997 ;am1 ;am2 2008
IEC61000-3-2 :2014 (ed.4)
IEC61000-3-3 :2013 (ed.3)
IEC62233 :2008
Date de modif 15.06.2017 MM
Doc. No.:
3N400/415 V~
3N230 V~
1N240 V~
Fax: +41 21 637 37 41
Internet :
www.valentine.ch
Valentine Fabrique SA
B. Paris
President
E-VMC3
1 / 11
Page No.:
Advertisement
Table of Contents
Related Manuals for Valentine VMC-3
Summary of Contents for Valentine VMC-3
- Page 1 Instructions for Multicooker Applicable to the following models: 3N400/415 V~ VMC-3 3N230 V~ Multicooker VMC-3 on feet 1N240 V~ Your agent: DECLARATION OF CONFORMITY We, manufacturer Valentine Fabrique SA Z.I. Moulin-du-Choc E CH – 1122 Romanel-sur-Morges Tél.: +41 21 637 37 40...
-
Page 2: Table Of Contents
Warning: The information contained in these instructions for use may be modified without warning. Valentine Fabrique SA cannot be held liable for any errors contained in this document or for damage or injury resulting from use of this. Date de création: 29.03.07 Date de modif 15.06.2017 MM... -
Page 3: Important Notes
Dear Customer We congratulate you on your purchase of a Valentine Multicooker. This is a high quality product of renown that is both easy to use and reliable. The instructions below take into account new legislation concerning product liability as well as EU and international safety standards. -
Page 4: Technical Specifications
Technical specifications Model VMC-3 VMC-3 Turbo Voltages 3N400 3N230 1N240 3N400 Rating Connection 28.7 14.45 Frequency 50/60 50/60 50/60 50/60 Capacity in litres 35-40 35-40 35-40 35-40 Main switch Main thermostat 40-105°C Safety thermostat Leak tightness IP X4 IP X4... -
Page 5: Description Of The Appliance
Description of the appliance Internal pan dimensions 510 x 310 Cleaning position Working position Mainswitch Identification of the principal elements Rep. Description Article Rep. Description Article Cover 3708-01 Back wall superior 3720-03 Switch 0718 / 0719 Threaded tube G3/4" 3794-03 Neutral lamp 6324 3706-03... -
Page 6: Functions Description
Functions description Main switch Function Go / Stop [2a] Neutral lamp Switch On The multicooker is under tension Main thermostat Temperature adjustment of the water in the pan between 40° to 105°C [8a] Orange lamp Switch On The multicooker is in the course of heating Switch Off The temperature ask is reach Safety thermostat... -
Page 7: Emptying The Pan
It is not advisable to leave water in the pan for days at a time, even if it contains stock ! Servicing the Multicooker, cleaning Apart from thorough cleaning for hygienic reasons, the VMC-3 does not required any maintenance. Avoid letting the unit overflow. Do not splash water on the electrical parts, and clean the outside with a damp cloth only. -
Page 8: Spare Parts
230V [19] Contactor 6282-11 3x25A Heating element Heating element VMC-3 230 V 6.6kW 3772-30 R1, R2, R3 IRCA Heating element VMC-3 230 V 10 kW 3773-30 R1, R2, R3 IRCA Sundry [18] Knob for thermostat 0712-02 Ball drainage valve 3782 G3/4"... -
Page 9: After Sales Service
After Sales Service In any case of fault or if you need spare parts for your unit Complete and transmit this page to have the best service. Your coordi- Company Name nates Address Telephone email Personal contact Your Multi- Type cooker Serial Nr. -
Page 10: Wiring Diagram Vmc-3
Wiring diagram VMC-3 Date de création: 29.03.07 Date de modif 15.06.2017 MM E-VMC3 10 / 11 Fabrique SA Doc. No.: Page No.:... -
Page 11: Wiring Diagram Vmc-3 Turbo
Wiring diagram VMC-3 Turbo Date de création: 29.03.07 Date de modif 15.06.2017 MM E-VMC3 11 / 11 Fabrique SA Doc. No.: Page No.:...
