Summary of Contents for SteamOvap SB

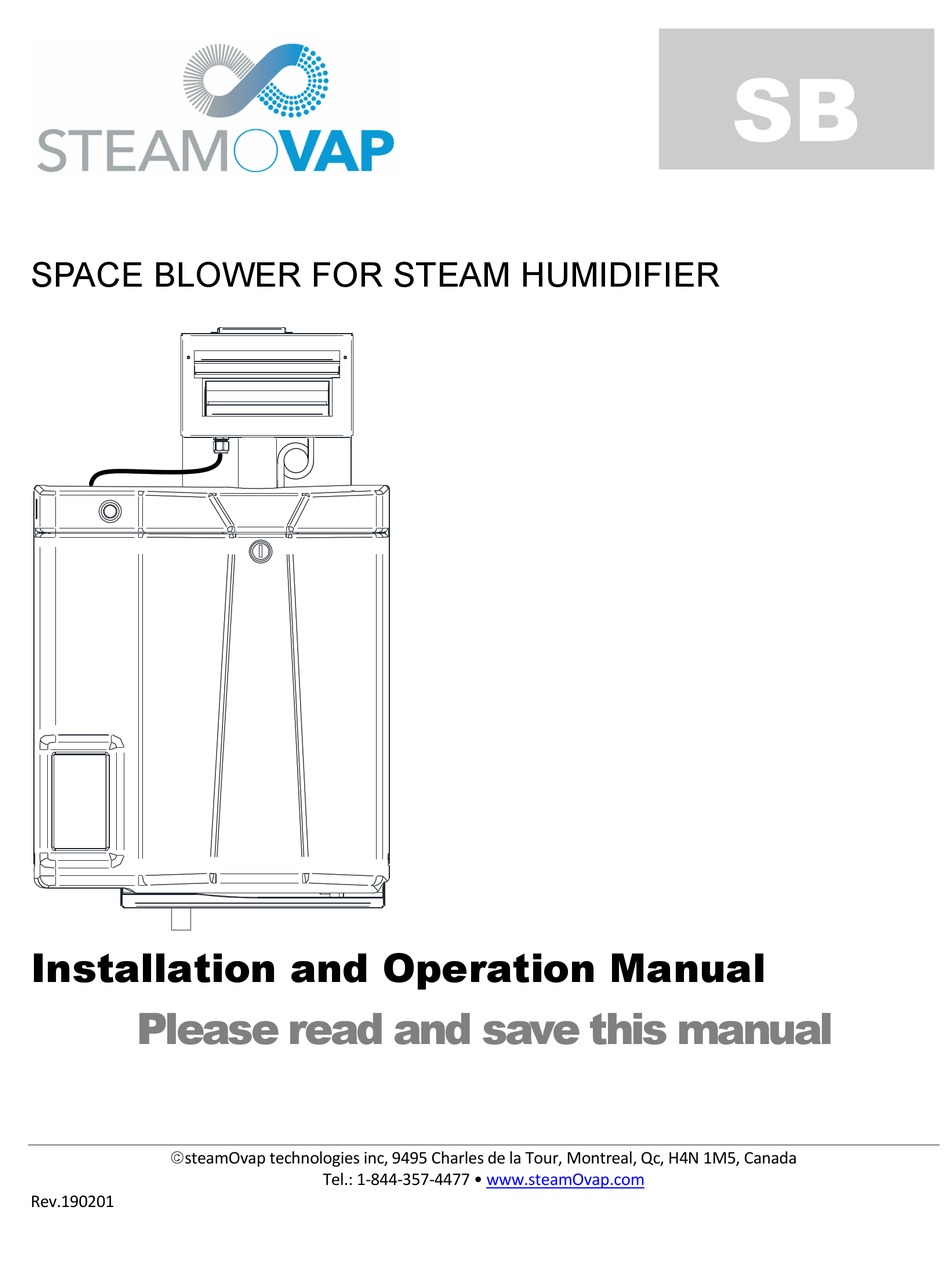

- Page 1 SPACE BLOWER FOR STEAM HUMIDIFIER Installation and Operation Manual Please read and save this manual steamOvap technologies inc, 9495 Charles de la Tour, Montreal, Qc, H4N 1M5, Canada Tel.: 1-844-357-4477 • www.steamOvap.com Rev.190201...
-
Page 2: Introduction
1-844-357-4477 Intended use SB space blower for steam humidifier is intended exclusively to distribute steam produced by a steam humidifier for direct in-space air humidification. Operating conditions are specified in this Installation and Operation Manual (IOM). Operation of this Space blower in the intended use scope requires that all directions and information contained in this IOM are observed. -
Page 3: Table Of Contents
Table of content Introduction ..................2 Table of content ................. 3 Safety warnings .................. 4 Before to proceed to Installation ............5 Space blower Overview ..............6 Installation overview ................8 Installation – step 1 IER Positioning & Mounting ........ 8 Installation –... -
Page 4: Safety Warnings
section S A F E T Y Safety warnings General Risk of electric shock. Disconnect power supply before installation or service. For safety and warranty reasons, Installation and service of this humidifier should be carried out by trained and qualified personnel. Any work related to installation and service of this humidifier must comply with local code and regulation regarding safety and prevention of accidents. -
Page 5: Before To Proceed To Installation
2. Verify that model of the space blower matches the purchase order and that all accessories are included. 3. Any missing item should be reported as soon as possible to steamOvap or its representative and within 5 business days after receipt. -
Page 6: Space Blower Overview
O V E R V I E W Space blower Overview Space blower Built-in Remote Figure 1 – SB Built-in Overview Figure 2 – SB Remote Overview Model designation and options codification Type & Model S=Small M=Medium Nominal Voltage... - Page 7 [29.5kg/h] 330CFM Same as 0.6A @ 96lb/h 120Vac [560m 120Vac [44kg/h] IER Dimensions Built-in Remote Figure 4 – Remote SB dimensions Figure 3 – Built-in SB dimensions Dimensions Steam Net weight Model Inlet Ø 20in 23in 8.5in 13in [510m Built-in...
-
Page 8: Installation Overview
CAUTION: Do not install Space blower above any electrical equipment, as water leak from connection or abnormal operation can cause malfunction or short circuit. IER maximum ambient conditions: Temperature: 41°F to 122°F [+5 to +50°C] Relative Humidity: 90%RH max (non condensing) Ingress Protection for SB space blower standard enclosure: IP20... - Page 9 I N S T A L L A T I O N Clearances for Space blower Figure 5 – minimum clearances for SB Clearance guidelines There is no minimum clearance on both side of the Space blower, but it is a good practice to have a clearance of 4 to 8 in [100 to 200mm] for ease of installation and service Front clearance of 80in [2000mm] is required for steam absorption.
- Page 10 Remote SB Model 6.5in [165mm] Figure 6 – SB mounting holes location Wall installation 1. Verify that wall structure and strength is appropriate to support the operating weight of the Space blower. 2. Mark the wall or support according to the above holes location, and drill 2 holes to the wall or support as per the size of anchors and/or screws.
-
Page 11: Installation - Step 4 Steam Line Installation
Steam line and condensate return are factory installed on Built-in Space blower. Remote SB Figure 7 – Steam & condensate line for Remote SB Installation steps : 1. Install the steam hose or rigid steam pipe between the steam humidifier and the Space blower. -
Page 12: Installation - Step 5 Power Supply Installation
Risk of electric shock. Disconnect power supply before installation or service. Any work related to power supply installation of this humidifier must comply with local code and regulation regarding safety and prevention of accidents. SB electrical ratings Voltage Model Power Current... -
Page 13: Installation - Step 6 Control Installation
I N S T A L L A T I O N Installation – step 6 Control installation Built-in SB Control signal wiring is factory installed on Built-in Space blower, connected in the steam humidifier electrical panel, see wiring diagram. -
Page 14: Verification Before Start-Up
section S T A R T - U P & O P E R A T I O N Verification before start-up Warning For safety and warranty reasons, Installation and service of this Space blower should be carried out by trained and qualified personnel. Any work related to installation and service of this humidifier must comply with local code and regulation regarding safety and prevention of accidents. -
Page 15: Start-Up & Normal Operation
S T A R T - U P & O P E R A T I O N Start-up & normal operation Space blower will be ON when the following conditions are met: o Steam humidifier is ON o There is a demand for humidity either from a control signal demand or from a room RH% sensor. -
Page 16: Warranty
90 days, whichever is longer. No liability whatsoever shall be attached to steamOvap until said products have been paid for in full and then said liability shall be limited to the original purchase price for the product. Any further warranty must be in writing, signed by an officer of steamOvap.
