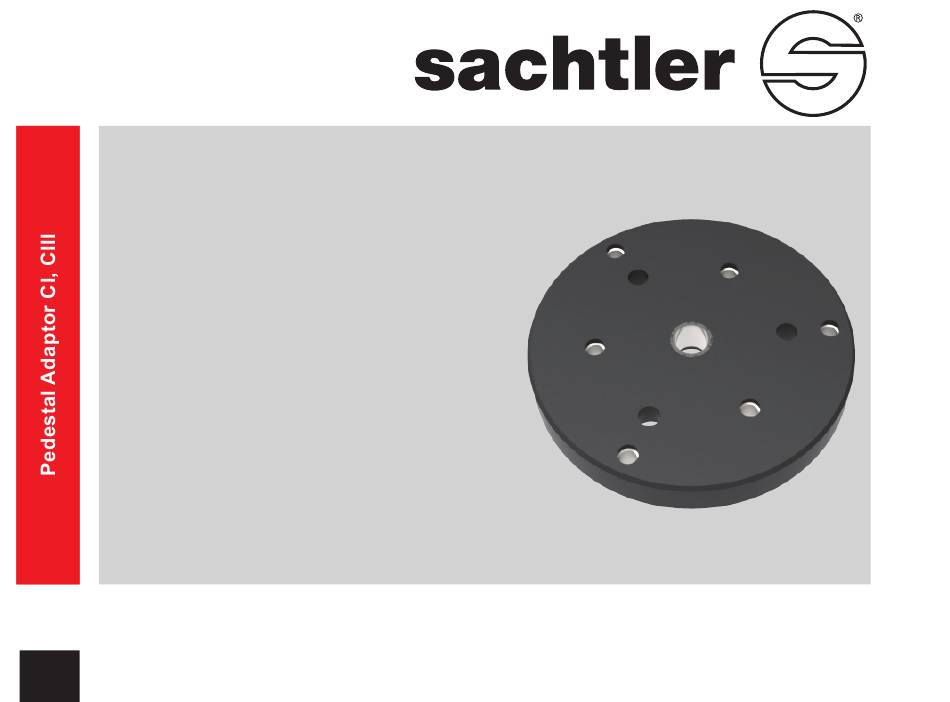

- Page 1 User Guide Pedestal Adaptor Cl, Clll aktiv Head 75 mm / 100 mm FSB MK ll Head S2080-0010 Adaptor Ped CI / CIII aktiv 75 mm S2080-0011 Adaptor Ped CI / CIII aktiv 100 mm S2080-0007 Adaptor Ped CIII FSB Mk ll 75 mm...
-
Page 2: Table Of Contents
Box Contents ....................3 Attach aktiv 75 mm / 100 mm to Clll Pedestal ..........4 Attach aktiv 75 mm / 100 mm to Cl Pedestal..........6 Attach FSB ll 75 mm to Clll Pedestal ............8 Attach FSB ll 75 mm to Cl Pedestal ............. 10 Caution! Please refer to your fluid head and pedestal user guides for full safety instructions. -
Page 3: Box Contents
Box Contents S2080-0010 S2080-0007 S2080-0011 Adaptor Ped CIII Adaptor Ped CI / CIII Adaptor Ped CI / CIII FSB Mk ll 75 mm aktiv 100 mm aktiv 75 mm... -
Page 4: Attach Aktiv 75 Mm / 100 Mm To Clll Pedestal
Attach aktiv 75 mm / 100 mm to Clll Pedestal Part No. S2080-0010 (75 mm) S2080-0011 (100 mm) 1. Fix the adaptor to the Clll using the 3 x 2. If not fitted, firmly screw the threaded screws (D091205501 M5*50) supplied stud (supplied with the adaptor) into the with the Clll pedestal. - Page 5 4. Lift the SpeedLevel Lever as shown all CAUTION! Push the SpeedLevel the way to the top. Lower the head onto Lever fully closed against the head the bowl connector and release the body before use. SpeedLevel lever. CAUTION! Check the head is firmly attached to the pedestal.
-
Page 6: Attach Aktiv 75 Mm / 100 Mm To Cl Pedestal
Attach aktiv 75 mm / 100 mm to Cl Pedestal Part No. S2080-0010 (75 mm) S2080-0011 (100 mm) 1. Fix the adaptor to the Cl using the 3 x 2. If not fitted, firmly screw the threaded screws (D091205351 M5*35) supplied stud (supplied with the adaptor) into the with the Cl pedestal. - Page 7 4. Lift the SpeedLevel Lever as shown CAUTION! Push the SpeedLevel Lever all the way to the top. Lower the head fully closed against the head body before onto the bowl connector and release the use. SpeedLevel lever. CAUTION! Check the head is firmly attached to the pedestal.
-
Page 8: Attach Fsb Ll 75 Mm To Clll Pedestal
Attach FSB ll 75 mm to Clll Pedestal Part No. S2080-0007 1. Using a 13 mm spanner, remove the 2. Fix the adaptor to the head bowl using stud from the bowl and store in a safe the 3 x Hex screws (D091205201 place. - Page 9 3. Ensure the adaptor is firmly attached 4. Fix the adaptor & head to the Clll using to the bowl. the 3 x Hex screws ((D091205501 M5*50) supplied with the pedestal). CAUTION! Check the head is firmly attached to the Pedestal.
-
Page 10: Attach Fsb Ll 75 Mm To Cl Pedestal
Attach FSB ll 75 mm to Cl Pedestal 1. Using a 13 mm spanner, remove the 2. Fix the head bowl directly to the Cl (no stud from the bowl and store in a safe adaptor required). place. Remove the 3 x screws fitted to the Cl and store in a safe place. - Page 11 3. Use the 3 x Hex screws (D091205501 CAUTION! Check the head is firmly M5*50) supplied with the Cl pedestal. attached to the Pedestal. 2.5mm...
- Page 12 Copyright © 2021 All rights reserved. Original Instructions: English Published by: Vitec Production Solutions Ltd Email: technical.publications@vitecgroup.com Publication Part No. S2080-4983/0 www.sachtler.com...
