Summary of Contents for Sudoku LEXUS

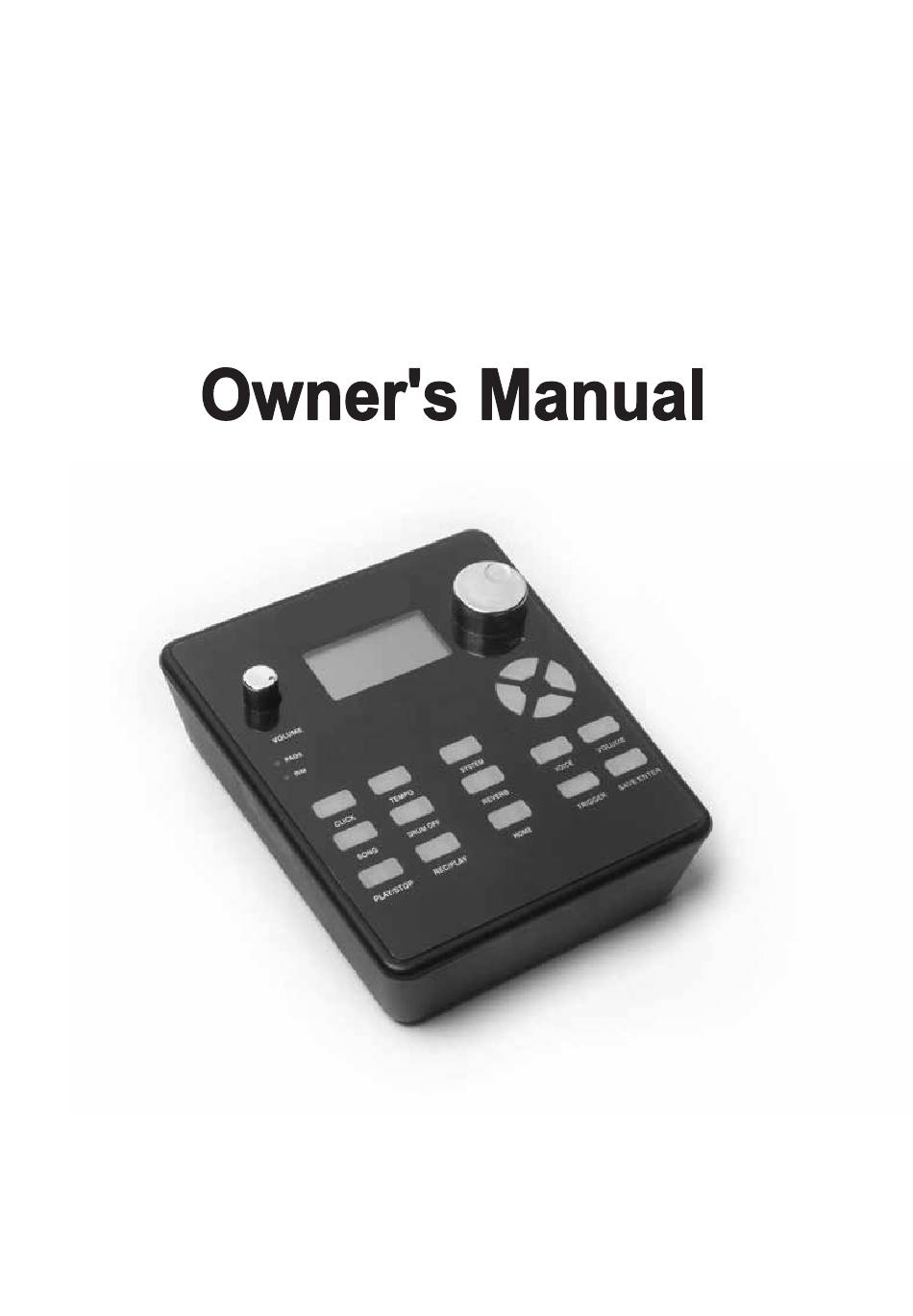

- Page 1 SUDOKU LEXUS Pro series (9Pro, 10Pro)
-
Page 2: Table Of Contents
CONTENTS Preface ..............................1 What’s in the Box? ..........................1 Pro series Overview ..........................1 Caution..............................1 A. Function panel description......................2 B. External interface description......................3 1. Headphone jack..........................3 2. External audio input interface......................3 3. Speaker interface..........................3 4. USB MIDI interface.........................3 5. -
Page 3: Preface
Preface Thank you for buying a Pro series electronic drums, SUDOKU LEXUS company with the most simple and convenient setting operation mode to make it easier for beginners handy target, please read the instruction manual before use. What’s in the Box? Included in the SUDOKU LEXUS Pro series package, you should find: ... -
Page 4: Function Panel Description
Function panel description A． 1. DATA knob: Used to adjust the selected parameters (mainly used to quickly adjust the value in a large range) 2. Direc�on bu�on: The up and down keys select the column displayed on the LCD, and the le�... -
Page 5: External Interface Description
B． External interface description 1. Power Supply 2. Power supply interface: The power supply specifica�on of this machine is 9V500mA, posi�ve and nega�ve. It is not recommended to use other power adapters. If the user replaces the adapter and causes the host to malfunc�on, it is not responsible. 3. -
Page 6: Quick Start
AUX IN jack: Used to input the music sound of mobile phones, computers, players into the electronic drum host, mixed with the drum sound PHONE: Headphone jack, 3.5 stereo Data Cable Jack Data cable jack: Behind the host is the data cable jack Quick Start C．... -
Page 7: Adjustment And Storage Of Drum Sound Parameters
D． Adjustment & storage of drum sound parameters Timbre adjustment of drum and cymbals 1. Press the Voice 2. Tap the drum cymbal to be bu�on adjusted Snare Timbre 3. Confirm that the display 4. Use date wheel or le� and is to be adjusted right to adjust Volume adjustment of drum &... -
Page 8: Save The Drum Set Tone Setting Parameters
Save the drum set tone se�ng parameters A�er se�ng the �mbre and volume parameters of the drum set, under the VOICE or VOLUME page, you can press SAVE / ENTER bu�on to save the set drum set in the user drum set. When the SAVE / ENTER bu�on is pressed for the first �me, it is not saved, but it prompts you to save and save the loca�on. -
Page 9: Adjust The Midi Output Value Of The Drum
Increased strength average strength big volume area small volume area smallest volume area 3. Adjust the MIDI output value of the drum To adjust the MIDI value of the drum, you must first set the MIDI in SYSTEM to the user- defined state. -
Page 10: System Option Parameters
G. SYSTEM option parameters 1. Restore system se�ngs Press the SYSTEM bu�on one or more �mes un�l the RESET SYSTEM page appears. You can use the up and down bu�on to select whether to reset (YES) or not (NO). A�er selec�ng YES, press the SAVE / ENTER bu�on to restore the system's original se�ng values such as drum trigger related parameters, hi-hat parameter se�ngs, and midi output interface selec�on. -
Page 11: Bluetooth Audio
Bluetooth audio func�on Press the SYSTEM bu�on un�l the BT AUX OFF interface appears. Use the data wheel or the le� and right bu�ons to switch OFF to ON. At this �me, your mobile phone, tablet, or Bluetooth-enabled computer can discover the Bluetooth device Edrum.
