Please read these instructions carefully and keep for future reference.
Incorrect fitting will invalidate the guarantee.
SAFETY
● Handle glass with care. Sharp impacts can damage the metal components and
could shatter the glass.
● Do not remove the plastic corner protectors from the glass panels until the panels
are about to be fitted.
● As the parts are large, we recommend that two people are needed to carry out
parts of the installation.
● Make sure there are no hidden pipes or cables in the floor and walls where you
intend to drill.
● Wear safety goggles, shoes and appropriate clothing.
BEFORE INSTALLATION
● The enclosure will not sit correctly on an uneven surface. If uneven, the wall
channels may not fit.
● Note: If not fitted on a tray, ensure the enclosure is fitted to a tiled or
waterproof composite floor.
● The enclosure should be fitted on tiled walls which are sealed with waterproof grout.
● Always check very carefully that components are vertical.
● To avoid damage, use the opened out packaging to build the enclosure on.
EQUIPMENT NEEDED:
Drill, 6mm Masonry Bit, 3mm Metal Bit (general), Crosshead Screwdriver, Spirit Level,
Pencil, Fine Tooth Saw, Silicone Sealant, Scissors, Tape Measure.
Note: The screws and wall plugs supplied are for masonry walls. For lightweight
walls i.e. stud partitions, plasterboard etc, use the correct type of fixings.
Check contents of the pack before installation. If there is anything missing, contact our Customer Care Number for assistance. The fixings may be spread across several packs - please check the contents of each pack carefully.
1
2
PANELS:
PN60320
1
2
16mm
Screw
PN60312
5
10
38mm
Screw
PN8212
5
10
Washer

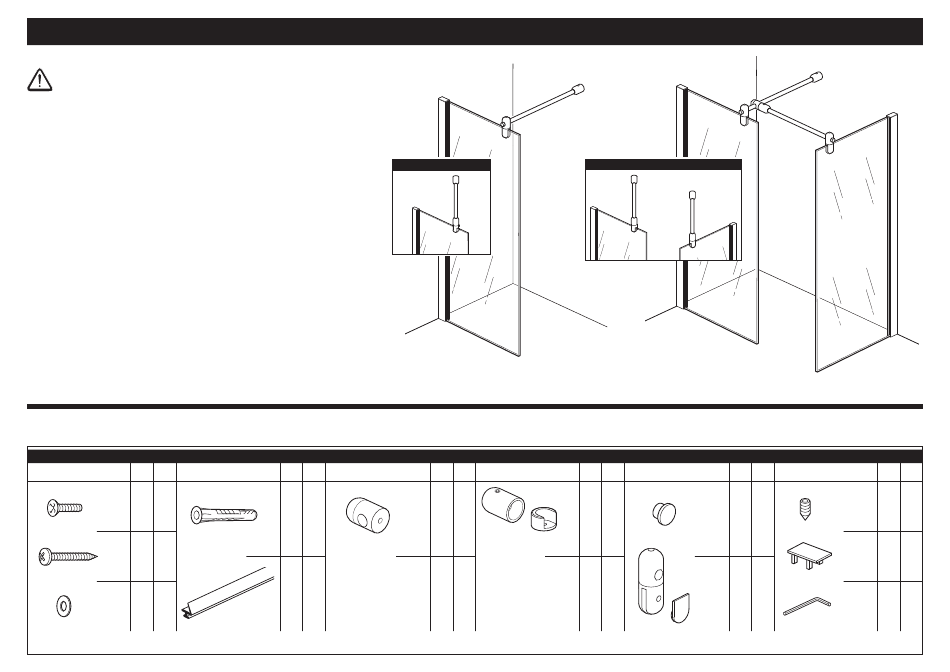

TUBULAR SHOWER PANELS
Vertical Strut Option
CUSTOMER CARELINE: 01746 713410
1
2
PANELS:
PANELS:
PN60154
PN60210
5
10
Strut
bracket
Wall plug
PN40063
2
4
Seal
SINGLE PANEL - PAGES 2 - 4
1
2
1
PANELS:
PN80456
2
1
2
Outer
ceiling bracket
Assemble
Vertical Strut Option
DOUBLE PANEL - PAGES 4 - 9
2
1
2
PANELS:
PN60163
4
1
2
Tube cap
PN80480
1
2
Panel
bracket/
Glass clamp
00 71277 00 / Issue 6 / 10
1
2
PANELS:
PN60159
1
2
Grub screw
PN50247
1
2
Top cap
PN60162
1
1
3mm
Allen key
PAGE 1
Advertisement
Related Manuals for Coram TUBULAR SHOWER PANELS
Summary of Contents for Coram TUBULAR SHOWER PANELS
- Page 1 00 71277 00 / Issue 6 / 10 TUBULAR SHOWER PANELS Please read these instructions carefully and keep for future reference. Incorrect fitting will invalidate the guarantee. SAFETY ● Handle glass with care. Sharp impacts can damage the metal components and could shatter the glass.
- Page 2 SINGLE PANEL IMPORTANT Ensure Glass Guard H2o Strut label is to the outside of PN10658 the enclosure/panel ø 6 Satin glass patterns must be installed to the outside of the enclosure. Note: The Glass Guard coating is on the opposite side to the label or satin glass patterns 980mm max.
- Page 3 ø 6 Inside PN80456 Outside d: Slide wall bracket cover onto the strut. a: Remove the strut from the panel, place an inner wall bracket in the marked Push-fit the top cap onto the top of From outside only, From outside only, apply silicone position and mark the fixing hole onto the wall.
- Page 4 ø 6 32mm Inside a: Assemble the strut: Slide on the outer ceiling bracket and panel bracket. Lightly tighten the fitted grub screws. a: Reposition the strut back onto the panel (with grub screws on the inside). Angle the top end into the inner ceiling bracket, slide the outer ceiling bracket up the strut and screw onto the inner ceiling b: Carefully place the strut assembly onto the glass, approximately 100mm from the edge (depending on your installation).
- Page 5 DOUBLE PANEL IMPORTANT Struts Ensure Glass Guard H2o PN10658 label is to the outside of the enclosure/panel Satin glass patterns must be installed to the outside of the enclosure. ø 6 Note: The Glass Guard coating is on the opposite side to the Max.
- Page 6 ø 6 Inside Max. PN80456 opening 880mm d: Slide the strut bracket and wall bracket cover onto the strut. a: Remove the strut from the panel, place an inner wall bracket in the marked position and mark the e: Reposition the strut into the inner wall bracket and the other end (with panel bracket fitted) fixing hole onto the wall.
- Page 7 Y + 86mm Approx. 100mm Inside Untrimmed end of strut Ensure that the end of the second panel is vertical. a: If required, trim the strut to length: Y + 86mm. Position the strut into the wall bracket assembly and the panel bracket. Carefully place the second panel bracket on to the glass, approximately 100mm from b: Push-fit the end cap onto the untrimmed end of the strut.
- Page 8 Vertical strut installation Ceiling 16mm Opening Wall X + 30mm Wall Ensure that the opening end of the panel is vertical and a: Unscrew the top section of panel bracket. a: Carefully place the (reassembled) panel bracket onto the glass, approximately 100mm from the edge (depending on your installation).
- Page 9 End of life: This product contains materials such as aluminium and glass which can be recycled Please contact your local authority to find your nearest recycling centre A PRODUCT OF THE CORAM GROUP OF COMPANIES Outside Coram Showers Limited Stanmore Industrial Estate...
