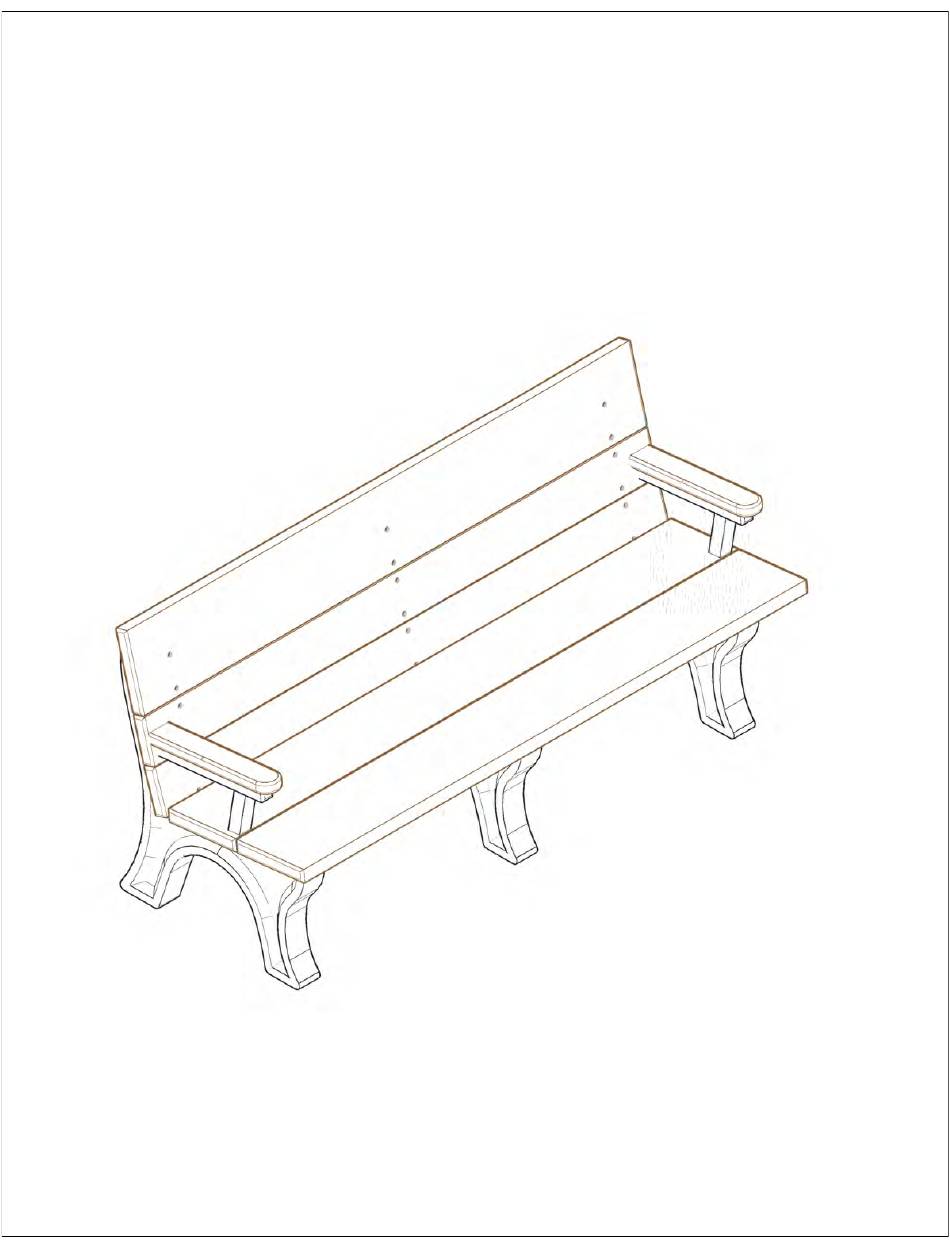

- Page 1 6 Foot Traditional ADA Park Bench For Fastener Pack (FP-TB6HA-CU-02) Congratulations ! ! You have just purchased the finest recycled plastic park bench available. Enjoy ! ! ! FS-TB6HA-CAP-02...
- Page 2 ( 2 ) - Two Bench Arms ( 1 ) - One Fastener Pack Before assembly, please make sure all fasteners are included. BSA-HABA-A-00 32 - FP-TB6HA-CU-02 FP - Fastener Pack EM4BA D - Bench Arm D - Bench Arm...
- Page 3 Before assembly, please make sure all fasteners are included. 22 - #12 x 3" Flat Head Phillips Screw 15 - #12 x 2" Flat Head Phillips Screw 24 - #12 x 2" Pan Head Phillips Screw Also needed for this assembly will be the following materials: 1 - #3 Phillips Drive Bit *IMPORTANT NOTICE*: DO NOT OVER-TIGHTEN SCREWS.
- Page 4 Fig #1: In order to make the assembly of this Traditional ADA Bench easier while going through the assembly process the board positions are numbered and will be referenced in later steps. Step #1: Stand (1) One bench end (Part B) upright and place (1) One bench board (Part A) on position 1 being sure to align the pre-drilled holes to the pilot holes in the bench end.
- Page 5 Step #2: Stand the other bench end (Part B) upright and place the bench board (Part A) already attached to the first bench end, on position 1 being sure to align the pre-drilled holes to the pilot holes in the bench end. After the holes are properly aligned, fasten with (1) One #12 x 3"...
- Page 6 Step #3: Align bottom pre-drilled holes to the pilot holes in the bench end (Part B). After the holes are properly aligned, fasten with (1) One #12 x 3" Flat Head Phillips Screw per hole. Note: Be sure to tighten screws completely after this step. Step #4: Place a Mounting Plate (Part G) with the countersink's facing up on each bench end (Part B).
- Page 7 Step #5: Repeat Steps 1 - 3 to attach bench board (Part C) on position 2 with arm holes towards bottom of board and bench board (Part E) on position 3. FS-TB6HA-CAP-02...
- Page 8 Step #6: Lay bench on its back. Attach bench board w/ arm holes (Part H) on position 4 with arm holes facing front of bench and bench board (Part F) on position 5. Be sure to align the pre-drilled holes in the mounting plates to the pilot holes in the bench boards.
- Page 9 Step #7: Position the bench arms (Part D) as shown above. Align the pilot holes to the pre-drilled holes in the bench board w/ arm holes. After the holes are properly aligned, fasten with (1) One #12 x 3" Flat Head Phillips Screw per hole.
- Page 10 FS-TB6HA-CAP-02...
