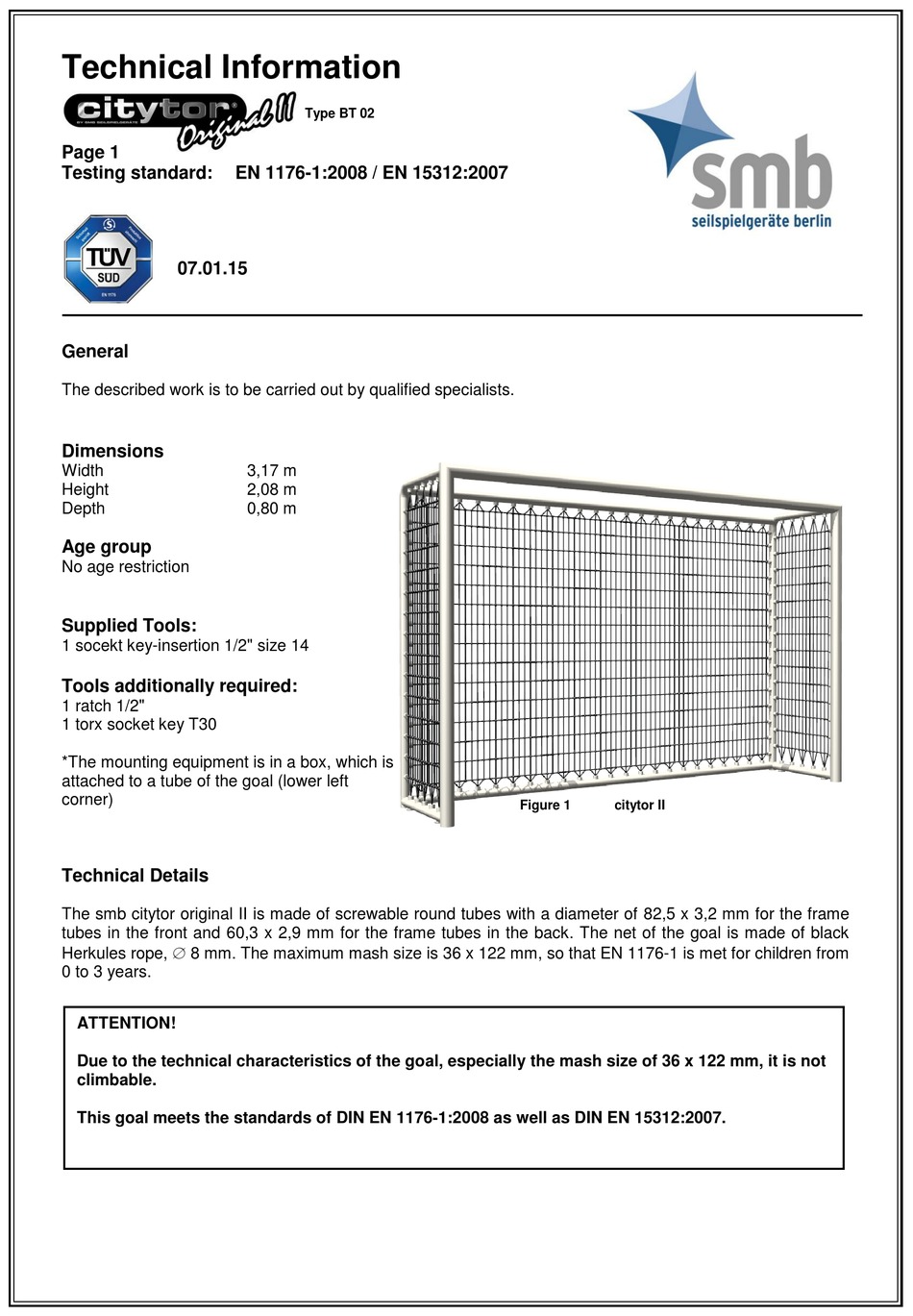

Technical Information

Page 1

Testing standard:

07.01.15

The described work is to be carried out by qualified specialists.

Width

Height

Depth

No age restriction

1 socekt key-insertion 1/2" size 14

1 ratch 1/2"

1 torx socket key T30

*The mounting equipment is in a box, which is

attached to a tube of the goal (lower left

corner)

The smb citytor original II is made of screwable round tubes with a diameter of 82,5 x 3,2 mm for the frame

tubes in the front and 60,3 x 2,9 mm for the frame tubes in the back. The net of the goal is made of black

Herkules rope,  8 mm. The maximum mash size is 36 x 122 mm, so that EN 1176-1 is met for children from

0 to 3 years.

ATTENTION!

Due to the technical characteristics of the goal, especially the mash size of 36 x 122 mm, it is not

climbable.

This goal meets the standards of DIN EN 1176-1:2008 as well as DIN EN 15312:2007.

Type BT 02

EN 1176-1:2008 / EN 15312:2007

3,17 m

2,08 m

0,80 m

Figure 1

citytor II

Table of Contents

Do you have a question about the citytor Original11 BT 02 and is the answer not in the manual?

Page 1 Technical Details The smb citytor original II is made of screwable round tubes with a diameter of 82,5 x 3,2 mm for the frame tubes in the front and 60,3 x 2,9 mm for the frame tubes in the back. The net of the goal is made of black Herkules rope, ...
Page 2 C20/25 (B25) is 150 mm below play level. When placing the concrete, a drainage is to be provided (Figure 2). If the sub construction needs to be larger as 150 mm, please consult smb. The correct screwing and positioning of the goal depends on the correct placing of the...
Page 3 ® The ROWOCON -sleeves (4) in the side parts of the smb-citytor original II are to be provided with screws M16 (5) and lock washers (7). The ropes (6) of the goal net are not fixed at this point (Figure Remove the safety covers of the ground anchors with a screwdriver (Figure 3).
Page 4 The nets are to be checked for damage. If a strong damage is discovered, e.g. a break in the wire, smb needs to be consulted. If only the rope coating is damaged and no wire is broken, there is no urgent need for repair.
