Summary of Contents for Aquacontrol SP Series

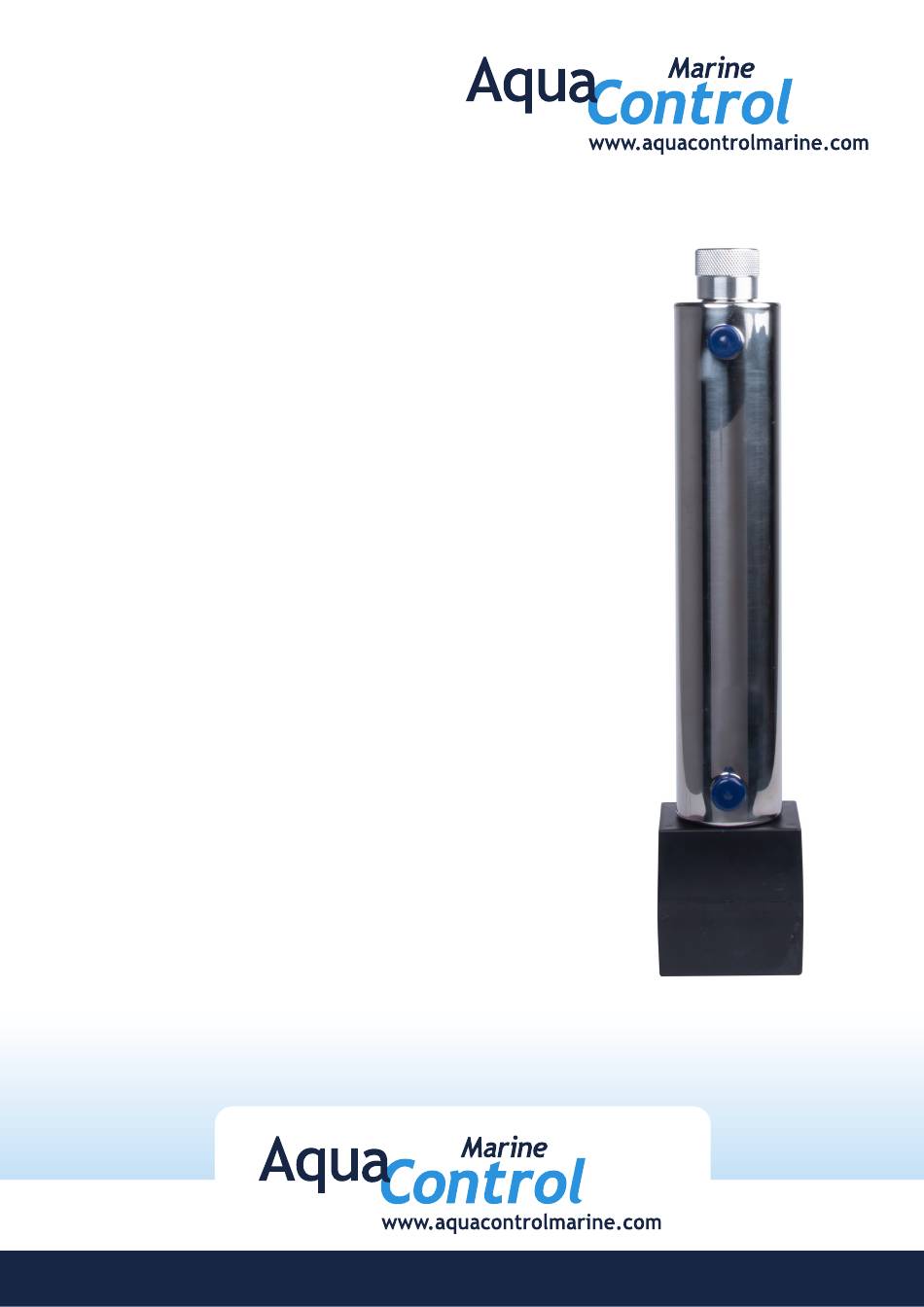

- Page 1 ULTRA VIOLET LIGHT SP Series for Marine Systems Quick Installation Manual Rev. A - 6 November 2008 AquaControl Marine | +31 164 257235 | Bergen op Zoom - The Netherlands | www.aquacontrolmarine.com...
-
Page 3: Unit Description
The plastic box, attached to cylinder, Unit Description houses the circuit board that connects to The SP Series is appropriate for many low volume indoor the power cable. applications because of the compact design and easy Table 1 SP Series Elements installation. - Page 4 UV Light-SP Series Rev. A Installation Requirements The SP Series UV unit is shipped with the UV lamp, quartz sleeve, fittings, and O-rings and need to be assembled before the UV unit can be used. Install the UV unit in a sheltered, well ventilated area.
-
Page 5: Connect Plumbing
UV Light-SP Series Rev A Repeat Step 7 & 8 on the ballast box compression nut. 4.3 Connect Plumbing Tube or hose ends must be cut squared and clean; must have no rough edges. The quick fit elbow fitting has a C- clamp that will lock the tube in place once inserted. -
Page 6: Install Ultraviolet Lamp
UV Light-SP Series Rev. A Slowly fill the cylinder with water and flush cylinder for 1 minute. Remove temporary pipe and insert the return pipe into the cylinder port and label the port “Outlet”. Slowly pressurize the UV unit by filling the cylinder with water while checking for leaks. -
Page 7: Operational Guidelines
UV Light-SP Series Rev A excessive vibration and warping which will damage the Safety Requirements quartz sleeve. The following safety requirements are mandatory. Failure to comply can cause injuries and/or damages to the UV Operational Guidelines unit. Release the pressure in the UV treatment chamber Never look directly at the blue ultraviolet lamp when it’s... - Page 8 UV Light-SP Series Rev. A 30-day period. Use the finding to determine a reasonable Wash the Quartz Sleeve with mild soapy water and rinse in clean hot water. schedule and frequency for periodic cleaning. Clean-In-Place (CIP) cleaning is sometimes effective in If dirt remains after rinsing, the quartz sleeve should be removing debris from the quartz sleeve.
- Page 9 UV Light-SP Series Rev A 6.2.7 Sampling Procedure Use sterile sample bottles obtained from reliable laboratory that has been autoclaved and kept in plastic bag for this procedure. Use temporary tube to direct water from UV unit to container or drainage.
-
Page 10: Periodic Maintenance Table
8000 Hours minimum Periodic Maintenance Table Materials Body: SS304; Ballast Box: PVC The table below represents the recommended Periodic Power Cord 4 meters 2 conductors Maintenance (PM) for the SP Series UV Unit. Weight 500g Body Description Init. Daily Ann.
