Please, read this manual
before use!

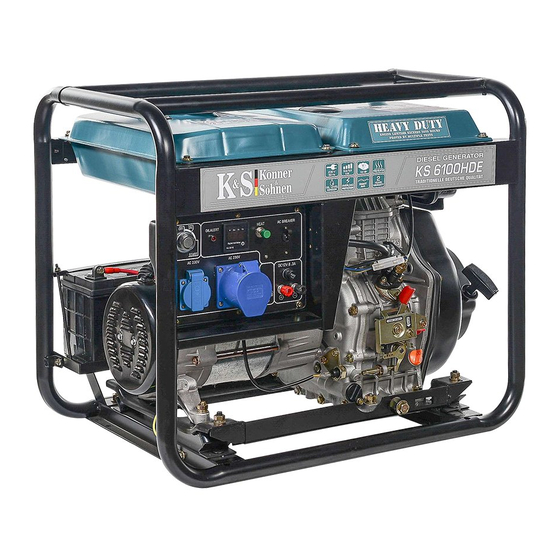

Diesel generator
KS 6100HDE (KS 6102HDE)
KS 8100HDE (KS 8102HDE)
KS 8100HDE-1/3 ATSR (KS 8102HDE-1/3 ATSR)
KS 9100HDE-1/3 ATSR (KS 9102HDE-1/3 ATSR)
Diesel generator in soundproof
housing
KS 8200HDES-1/3 ATSR
KS 9200HDES ATSR (KS 9202HDES ATSR)
KS 9200HDES-1/3 ATSR (KS 9202HDES-1/3 ATSR)
KS 9300DE ATSR Super S (KS 9302DE ATSR Super S)
KS 9300DE-1/3 ATSR Super S (KS 9302DE-1/3 ATSR Super S)
Instruction
ENG
Advertisement
Table of Contents
Summary of Contents for Könner & Söhnen KS 6100HDE
- Page 1 Instruction Please, read this manual before use! Diesel generator KS 6100HDE (KS 6102HDE) KS 8100HDE (KS 8102HDE) KS 8100HDE-1/3 ATSR (KS 8102HDE-1/3 ATSR) KS 9100HDE-1/3 ATSR (KS 9102HDE-1/3 ATSR) Diesel generator in soundproof housing KS 8200HDES-1/3 ATSR KS 9200HDES ATSR (KS 9202HDES ATSR)
-
Page 2: Table Of Contents
CONTENTS 1. Introduction ........................2 2. Safety information ....................2 3. Safety symbols. Description of safety symbols when operating the generator ..4 4. Main overview ......................5 5. Models description ...................... 6 6. Terms of use ......................10 7. Before starting ......................10 8. -
Page 3: Introduction
INTRODUCTION Thank you for your purchase of Könner & Söhnen HEAVY DUTY series diesel generator. It is ® professional machinery with an increased service life and is therefore suitable for heavy-duty operation. HEAVY DUTY series diesel generator engines have a service life of more than 3,000 operating hours subject to observance of the rules of generator operation and the maintenance schedule. - Page 4 PERSONAL SAFETY PERSONAL SAFETY - Be careful. Do not operate the generator, if you are tired, under the influence of drugs or alcohol. Inatten- tion may cause a serious injury. - Avoid inadvertent start. Make sure to set the switch to Off when you turn off the generator. - Make sure no outsider objects are on the generator when it is turned on.
-
Page 5: Safety Symbols. Description Of Safety Symbols When Operating The Generator
SAFETY SYMBOLS. DESCRIPTION OF SAFETY SYMBOLS WHEN OPERATING THE GENERATOR 1. Be careful when operating the device! Observe 5. The device generates electricity. Observe safety the safety instructions in this manual. precautions to avoid electric shock. 2. Operate the generator only in well-ventilated 6. -
Page 6: Main Overview
230V. 16 A/ (2Р+РЕ) - only for model only for model 4. Start key 4. Start key of generators of generators: KS 6100HDE, KS 8100HDE. : KS 6100HDE, KS 8100HDE. 5. Open end wrench, 8х10 mm 5. Open end wrench, 8х10 mm 2. 2. Portable plug Portable plug 230V. -
Page 7: Models Description
MODELS DESCRIPTION KS 6100HDE (EURO V) KS 8100HDE (EURO V) Model KS 6102HDE (EURO II) KS 8102HDE (EURO II) Voltage, V Max Power, kW Nominal Power, kW Frequency, Hz Current max, A 23.91 28.26 Outlets 1*16А, 1*32A 1*16А, 1*32A Fuel tank volume, l... - Page 8 KS 8100HDE-1/3 ATSR (EURO V) KS 9100HDE-1/3 ATSR (EURO V) Model KS 8102HDE-1/3 ATSR (EURO II) KS 9102HDE-1/3 ATSR (EURO II) Voltage, V Max Power, kW Nominal Power, kW Frequency, Hz Current max, A 23.91 11.74 28.26 13.54 Outlets 1*32А, 1*16А (3p) 1*32А, 1*16А...
- Page 9 KS 9200HDES ATSR KS 9200HDES-1/3 ATSR (EURO V) (EURO V) Model KS 8200HDES-1/3 ATSR KS 9202HDES-1/3 ATSR KS 9202HDES ATSR (EURO II) (EURO II) Voltage, V Max Power, kW Nominal Power, kW Frequency, Hz Current max, A 23.91 11.74 32.6 28.26 13.54 Outlets...
- Page 10 KS 9300DE ATSR Super S KS 9300DE-1/3 ATSR Super S (EURO V) (EURO V) Model KS 9302DE ATSR Super S KS 9302DE-1/3 ATSR Super S (EURO II) (EURO II) Voltage, V Max Power, kW Nominal Power, kW Frequency, Hz Current max, A 32.6 28.26 13.54...
-
Page 11: Terms Of Use
TERMS OF USE When starting operating the generator, it’s recommended to ground it. Before starting the unit, remember that the total power of consumers connected should not exceed the rated capacity of the generator. TYPES OF CONSUMERS AND INRUSH CURRENT TYPES OF CONSUMERS AND INRUSH CURRENT Consumers (electrical devices connected to the generator) are divided into active and reactive ones. -
Page 12: Control Panel
Output for ATS T1 - current time (since the last start) T1 - current time (since the last start) (except fpr models KS 6100HDE, (except fpr models KS 6100HDE, KS 6 KS 6102HDE, 102HDE, T2 - total time (since the commissioning) - Page 13 IN THE FIRST 20 OPERATING HOURS OF THE GENERATOR, THE FOLLOWING REQUIREMENTS SHOULD IN THE FIRST 20 OPERATING HOURS OF THE GENERATOR, THE FOLLOWING REQUIREMENTS SHOULD BE MET: BE MET: 1. During commissioning, do not connect power consumers, the power of which exceeds 50% of the nominal (operating) power of the device.
- Page 14 DISCONNECT ALL DEVICES BEFORE STOPPING THE GENERATOR! Do not stop the generator with the devic- IMPORTANT! es turned on. This may disable the generator or devices connected to it! STARTING WITH ELECTRIC STARTER IN THE COLD SEASON STARTING WITH ELECTRIC STARTER IN THE COLD SEASON - When the air temperature is lower than +5 С...
-
Page 15: Technical Maintenance Works
MODELS WITH VTS SYSTEM VTS MODELS WITH VTS SYSTEM VTS Models named “1/3” are equipped with a VTS phase switching system. These models can operate in single- phase (230V) and three-phase (400V) almost without loss of power. Switching modes is only allowed when the load is com- IMPORTANT! pletely switched off. -
Page 16: Recommended Oils
TECHNICAL MAINTENANCE WORKS Check the level Motor oil Replace Check/Clean out Air filter Replace Oil filter Clean out Check the level Fuel tank Check/Clean out Check/Clean out Fuel filter Replace RECOMMENDED OILS Motor oil has a serious impact on performance characteristics and is a major attribute, defining its service life. -
Page 17: Air Filter Maintenance
AIR FILTER MAINTENANCE It is necessary to check the air filter from time to time and clean any contaminations. Regular air filter maintenance is necessary to maintain sufficient carburetor air inflow. The air filter should be cleaned more often when using generator in dusty conditions. air filter Never run the engine with the air filter removed or without the filter. -
Page 18: Accumulator Maintenance
ACCUMULATOR MAINTENANCE In Könner & Söhnen models with electric start you should periodically perform battery voltage checks. ® The generator battery has a voltage of 12V and if the voltage is lower, you should perform battery charging with the help of an external charger. To avoid discharging the battery, it is recommended to run the generator at least once a month for 30 minutes. -
Page 19: Possible Failures And Solutions
POSSIBLE FAILURES AND SOLUTIONS Typical failures Possible reason Варіант усунення Engine starting swich set to OFF Set the engine starting switch to ON position Engine does not No fuel Add fuel start Low-quality or dirty Change the fuel fuel is in engine Dirt in fuel tank Clean the fuel tank Low engine power /... -
Page 20: Average Power Usage
AVERAGE POWER USAGE Device Average power usage, W 500-1100 Iron 450-1200 Air hair dryer 800-1500 Coffee machine 800-1800 Electric cooking stove 600-1500 Toaster 1000-2000 Air heater 400-1000 Vacuum cleaner 50-250 Radio 1200-2300 BBQ Grill electric device 1000-2000 Oven 100-150 Refrigerator 100-400 TV set 600-1400... -
Page 21: Warranty Terms And Conditions
WARRANTY SERVICE TERMS The international manufacturer warranty is 1 year. The warranty period starts from the date of purchase In cases when warranty period is longer than 1 year according to local legislation please contact your local dealer. The Seller which sells the product is responsible for granting the warranty. Please contact the Seller for warranty. - Page 23 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
