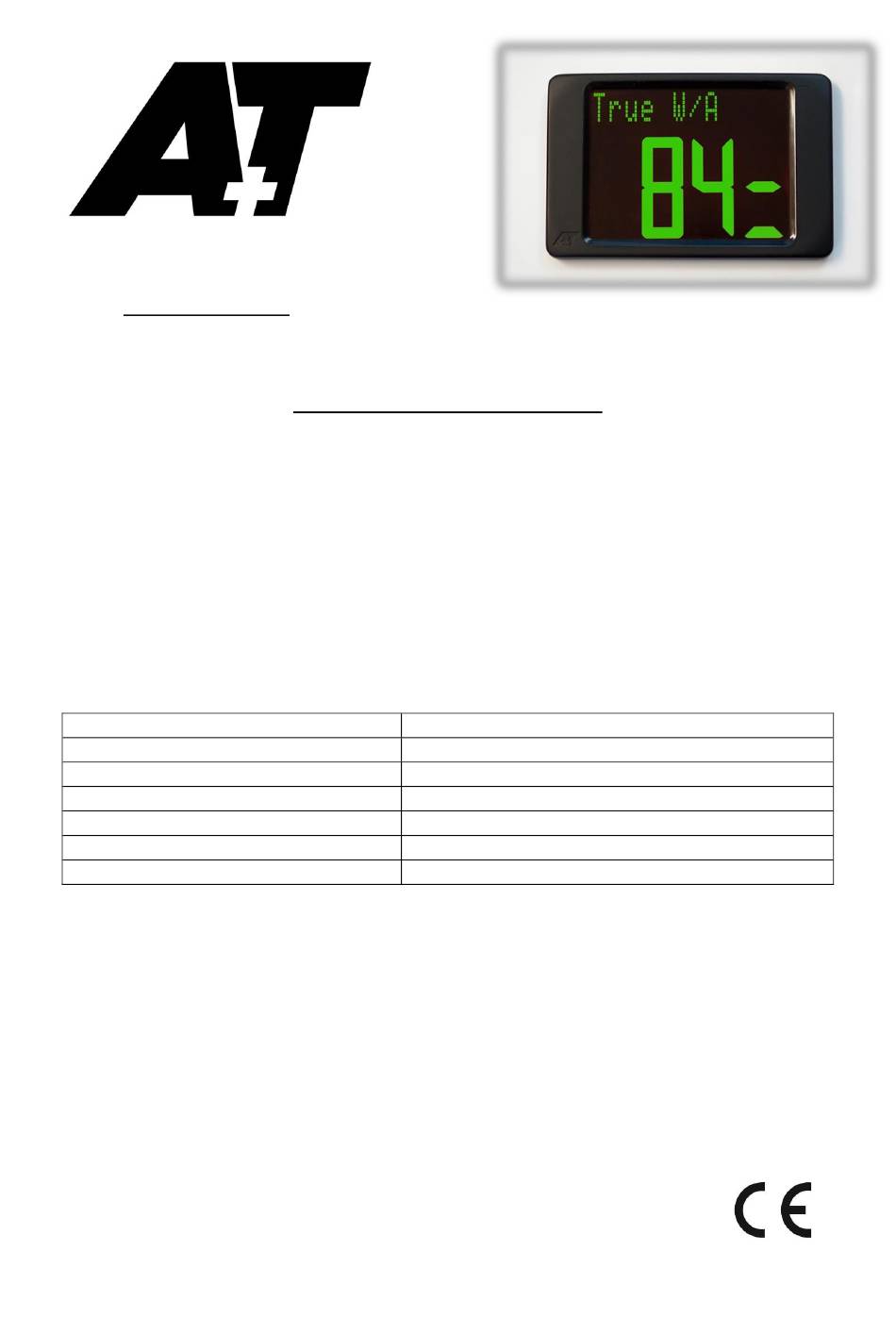

3020 Display

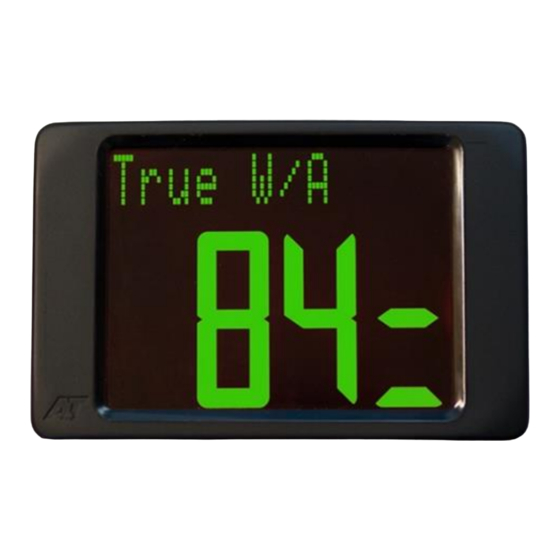

The A+T 3020 is a high specification large format display. Very high contrast 62mm
high digits on toughened glass provide superb viewability under the harshest
conditions.
Supplied as either an Ethernet based unit for use with an A+T ATP processor or
Fastnet bus based for older systems. It is compatible, including remote button control,
with existing B&G H3000, H2000 and WTP2/3 systems using the Fastnet bus and will
fit the cut out and fastening holes of existing 20/20 displays.
Specifications:
Input Voltage
Consumption
Weight incl bezel and 5m cable
Environmental
Operating temperature
Backlighting
Compatibility
Warranty:
The A+T 3020 is warranted against manufacturing defects for five years from date of shipping from factory on a
return to factory basis. Warranty is void if opened except by A+T. An integral tamper sensor is fitted.
The warranty specifically excludes physical damage, lightning strike to the vessel, overvoltage on supply or signal
lines and use outside the normal operating environment of a yacht.
Trademarks:
A+T is a registered trademark of A+T Instruments Ltd. B&G, H2000, H3000, WTP, WPT2 & WPT3 are product
names or trademarks of Navico UK Ltd whose use here is acknowledged.
Conformity.
This display complies with the CE EMC directive 2004/108/EC and Level 2 of the Radio
communications (Electromagnetic Compatibility) standard 2008
©A+T 2021
PRODUCT USER GUIDE
10-40 Vdc, internal self resetting fuse
0.9 to 1.4 W
0.52 kg
IP68, tested at 1m submersion for 24hr
-10 to +70 deg C
Red or Green, tunable brightness
B&G Fastnet, A+T Ethernet
Issue 3020v1.1
Advertisement
Table of Contents
Summary of Contents for AT 3020
- Page 1 B&G Fastnet, A+T Ethernet Warranty: The A+T 3020 is warranted against manufacturing defects for five years from date of shipping from factory on a return to factory basis. Warranty is void if opened except by A+T. An integral tamper sensor is fitted.
- Page 2 See Appendix A for wiring. A single press of the button will cycle to the next page on the 3020. The list of pages on each 3020 can be set up at an A+T MFD or over Bluetooth MFD control Access and control 3020 displays by pressing MENU then navigate to System >...
- Page 3 0V (black wire) of the Fastnet bus. The normal requirements for Fastnet bus apply in that two terminator resistors, each of 100 Ω, at either end of the network. The resistance measured across green and white with no power should be close to 50 Ω.
- Page 4 3020 4.3 Power ON the system. 4.4 The 3020 will display “PAIR” within 10 seconds and display its serial number in the top line. It is now ready to pair. 4.5 You may set the Bluetooth to remain always ON – see the Bootload...
- Page 5 1. Type B to enter the Bootload menu and when prompted press Y to confirm setting the unit to Bootload to receive update files 2. The 3020 will display “LOAD”, and is now ready to receive the new firmware. 3. Quit/Exit TeraTerm 4.
- Page 6 APPENDIX C Mounting the 3020 display DO NOT USE Acetone or any alcohol based solvent agents for cleaning. These may damage the plastic materials on the display. Recommendations: a) A 1mm clearance between the Analogue and the bulkhead cutout b) Use the supplied gasket to mount on a clean, flat surface.
