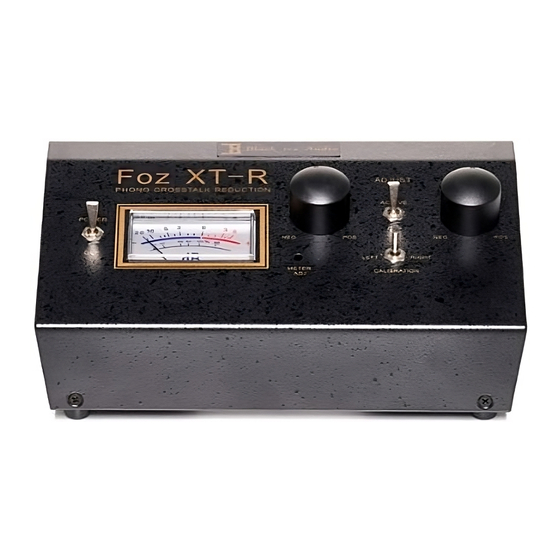

- Page 1 Owner's Manual BLACK ICE AUDIO FOZ XT-R Cross Talk Reduction Black Ice Audio 21310 Ridgecroft Drive, Brookeville, MD 20833 Phone (301) 953-2014 Fax (301) 498-0554 Email: info@blackiceaudio.com Web: www.blackiceaudio.com...
- Page 2 Dear Customer: We at Black Ice Audio want to take this opportunity to thank you for purchasing the Foz XT-R. The XT- R represents a distinctive electronic approach to solving crosstalk caused by a turntable’s cartridge and acoustic problems due to axial tilt. We have placed the name Foz in honor of the XT-R’s designer, Jim Fosgate.
- Page 3 Jim Fosgate, the author of the Foz XT-R unit, has designed an elegant electronic circuit to compensate for crosstalk and axial tilt.
- Page 4 Set Up Procedure 1. Make sure you have read and followed with the CONTROL AND CONNECTION instructions prior to attempting to operate your unit. 2. Make sure your XT-R is properly connected to a high-current power receptacle via the attached power cord (see Connections).
- Page 5 If the arm has azimuth adjustment set it in the center position. In order to calibrate your Turntable with the Foz XT-R it will require a Test LP. We use the Analogue Productions Ultimate Analogue test LP, but there are others that can be used if they have separate left and right channel 1KHz test tone signals.
- Page 6 CAUTION: The Foz XT-R contains sufficient levels of voltage and current to be lethal. Do not tamper with a component or part inside the unit. Even with the power turned off, a charge remains in the energy storage capacitors for some time.
- Page 7 HOW TO OBTAIN WARRANTY PERFORMANCE If your Black Ice Audio unit ever needs service, write to us at Black Ice Audio Inc., PO box 218, Brookeville MD 20833 or you can call us at 301 953 2014. We may direct you to an Authorized Black Ice Audio Warranty Station or ask you to send your unit to the factory for repair.
- Page 8 6-month limited parts and labor. Fuse: 110 - 120 VAC, 0.1 Amp slow Blow; 200 - 240 VAC, 0.05 Amp Slow Blow Size 5mm X 20mm Black Ice Audio, Inc. 21310 Ridgecroft Road, Brookeville, MD 20833 Fax: (301) 498-0554 Tel: (301) 953-2014...
