HomePro ZDW120 Quick Start Manual

RF Home Automation

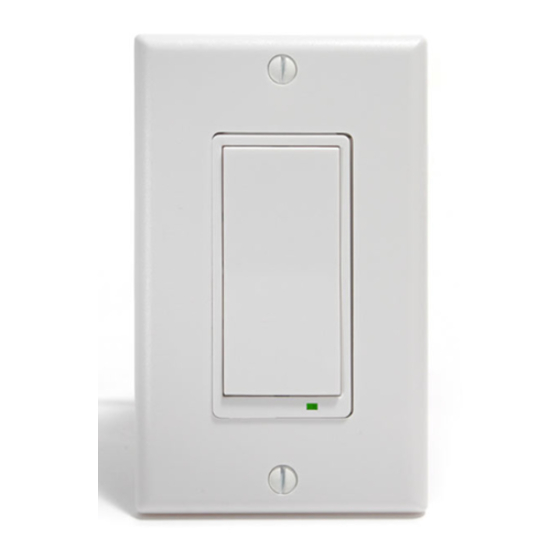

Supplied with matching
decorative switch plate
Note: This module must be "Included in the
Network" only where it will be permanently
installed. The proper operation of this node in the
mesh network is dependent on it knowing its
location with respect to other nodes. You cannot
"test bench" configure this module.

ZDW120 WALL MOUNTED DIMMER

The ZDW120 Wall Mounted Dimmer is a component of the HomePro lighting control system. Wire the Wall

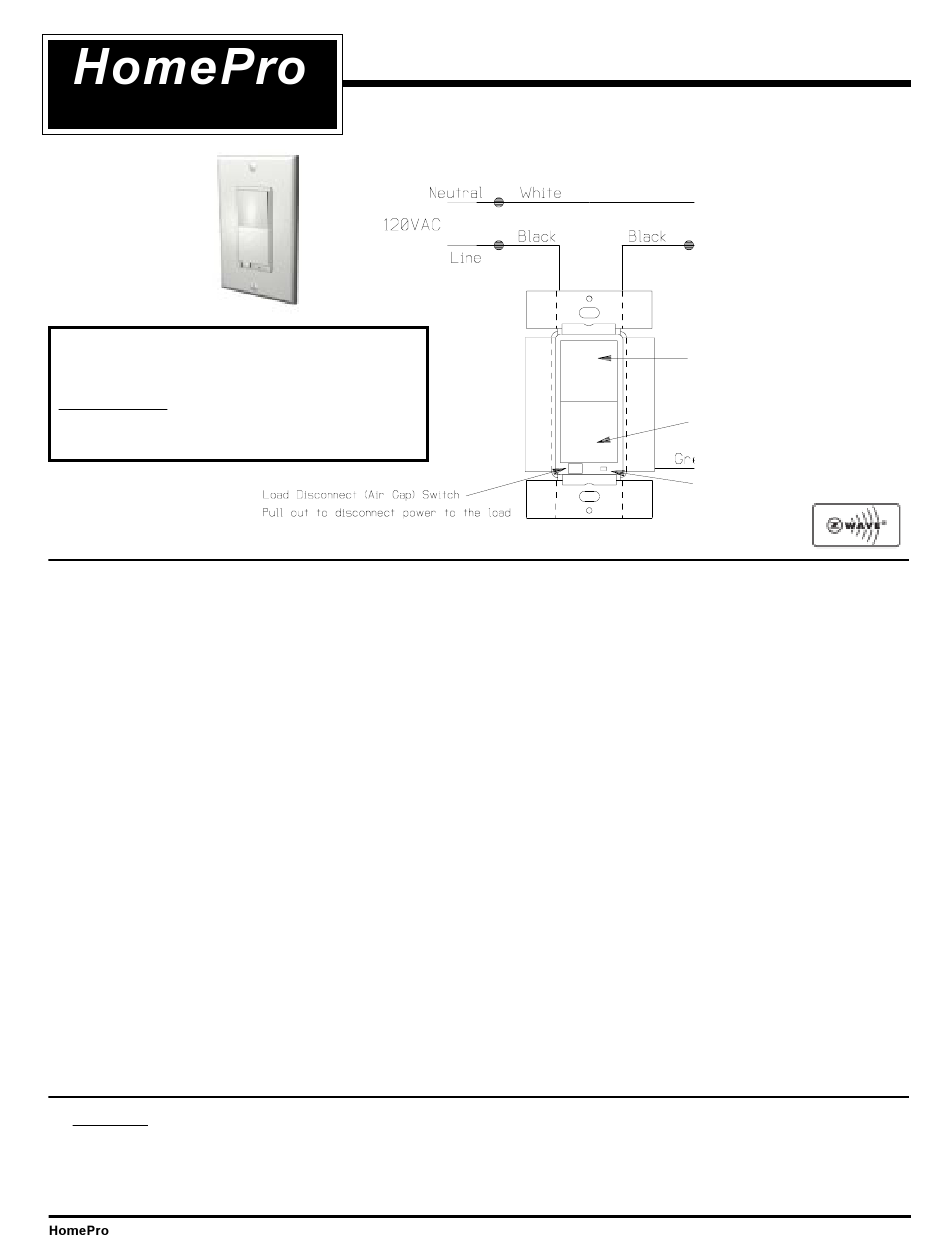

Mounted Dimmer in place of the standard wall switch according to the diagram above and program from the
Wireless Controller to operate loads. Inclusion of the ZDW120 Wall Mounted Dimmer on the ZTH100 Wireless
Controller menu allows remote ON/OFF control and dimming of lights connected.
This Wall Mounted Dimmer is designed to work with other Z-Wave enabled devices. Z-Wave nodes of other types
can be added to the system and will also act as repeaters if they support this function of repeating the signal
received to other modules in the system.
This product supports 40Kbps data transmission. This product can also be used for networking support in
systems that stream metadata. An example might include transmission of information from audio devices such
as song title, artist, and album information to various displays around the home.
As part of a Z-Wave network, the ZDW120 will also act as a wireless repeater to insure that commands intended
for another device in the network are received. This is useful when the device would otherwise be out of the radio
range of the wireless controller.
There are no field repairable assemblies on this unit. If service is needed, the unit must be returned where
purchased.
Read and understand these instructions before installing. This device is intended for installation in accordance
with the National Electric code and local regulations in the United States, or the Canadian Electrical Code and local
regulations in Canada. It is recommended that a qualified electrician perform this installation.
CAUTION! To reduce the risk of overheating and possible damage to other equipment, do not install
to control a receptacle, a motor operated appliance, a fluorescent lighting fixture, or a transformer-supplied
appliance, but only permanently installed incandescent lamp fixtures. Make sure the lamp(s) to be controlled
directly from this dimmer total no more than 500 watts. Retain instructions for future use.

INSTALLATION

DANGER! - SHOCK HAZARD. Make all connections with the POWER OFF to avoid injury to the installer or damage
to the device.
1. Strip 3/4" of insulation from the ends of the conductors (if not already done) and make connec-
tions as shown in the Wiring Diagram. Note that the line side of the load must be switched.
by ADVANCED CONTROL TECHNOLOGIES, INC.
Z-Wave Radio Frequency (RF) Controlled, 500W, 120 VAC,
0758-01
1
ZDW120
Two Wire, Wall Mounted Dimmer,
Series 200, Release 2.2
Z-Wave ZDW120 Instructions, Series 200, Release 2.2
P/D 032508
