Summary of Contents for SAT XTREM-S18

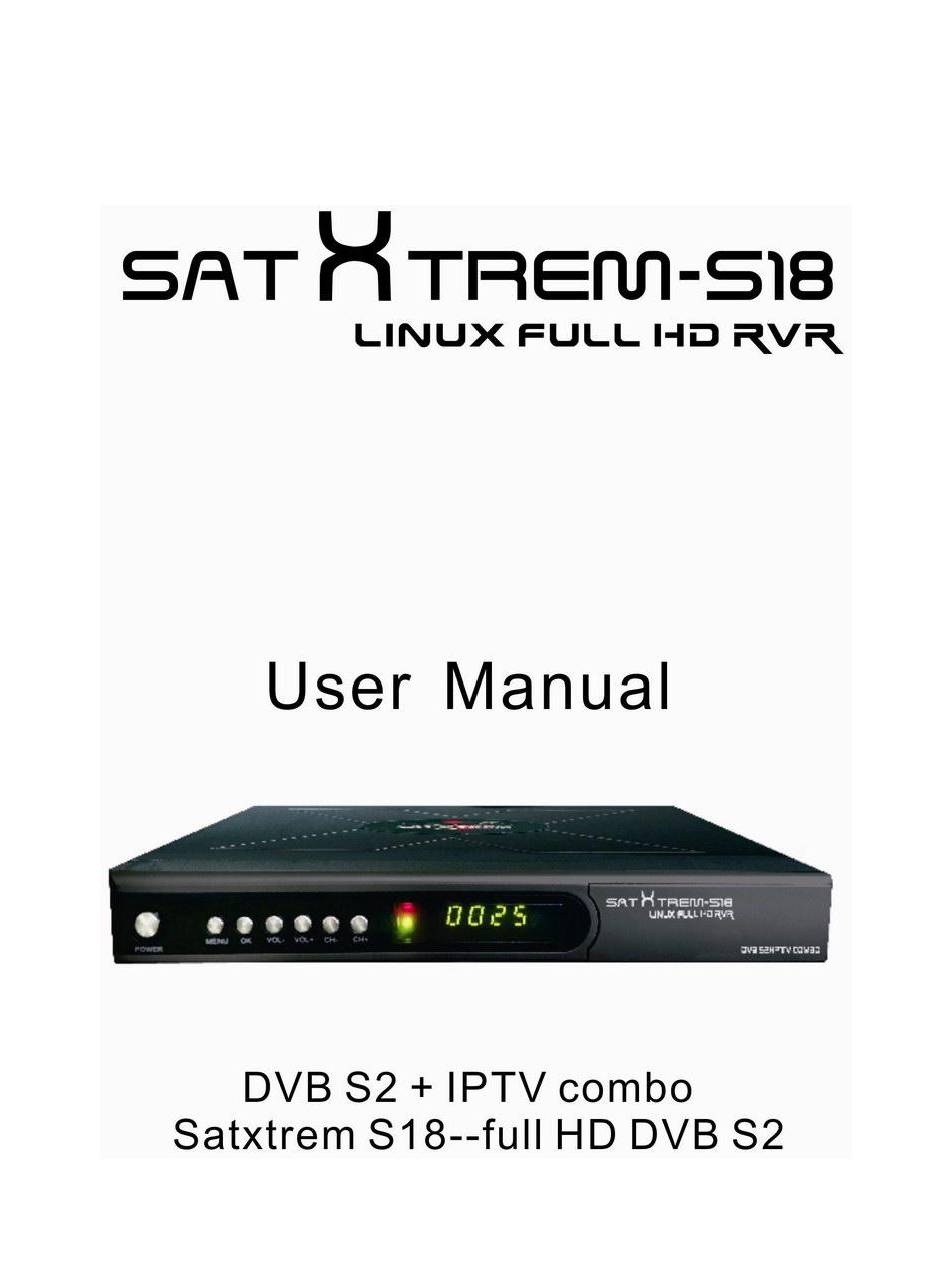

- Page 1 1 / 22...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions…………………………………………………………………………………….3 Basic Signal Troubleshooting Guide…………………………………………………………………4 Overview……………………………………………………………………………………………….5 Main Features………………………………………………………………………………………….7 Menu Guide………………………………………………………………………………………...….8 System……………………………………………………………………………………………………………………..8 1.1 AV Set………………………………………………………………………………………………………………8 1.2 System………………………………………………………………………………………………………………9 1.3 Internet……………………………………………………………………………………………………………...9 1.4 Password……………………………………………………………………………………………………………9 1.5 Factory…………………………………………………………………………………………………………….10 1.6 Box Restart………………………………………………………………………………………………………..10 1.7 About………………………………………………………………………………………..…………………….10 Manage………………………………………………………………………………………..…………………………10 2.1 CAM Restart……………………………………………………………………………………………………….10 2.2 CAM Setting……………………………………………………………………………….………………………11 2.3 Activation Code……………………………………………………………………………………………………11 2.4 Channel Lis………………………………………………………………………………………………………..11 2.5 Card Info………………………………………………………………………………….………………………11 2.6 Net Drive………………………………………………………………………………………………………….12... -
Page 3: Safety Precautions
Safety Precautions This receiver has been manufactured to comply with the International Safety Standard. Please read all of safety and operating instructions before operating the product and keep this manual for future reference. MAIN POWER SUPPLY AC100-240V50-60Hz Operate your product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your local power company. -
Page 4: Basic Signal Troubleshooting Guide
Basic Signal Troubleshooting Guide 1. NO SIGNAL A. Check the power and connection between the IRD and Television set. -Set the connection properly. B. Check the IRD if working. -If the IRD is not working or defective, replace the IRD. C. -
Page 5: Overview

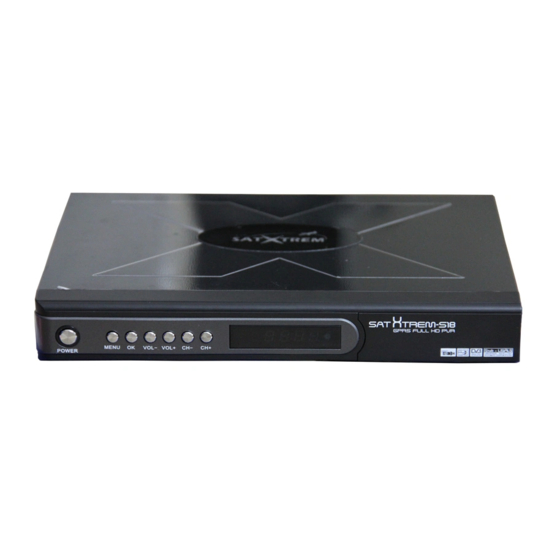

Overview 1. Front Panel Normal Mode Change to the next channel Menu Mode Move to the upper item Normal Mode Change to ht previous channel Menu Mode Move to the lower item Normal Mode Volume up VOL+ Menu Mode Change item Normal Mode Volume down VOL-... - Page 6 Remote Control Unit 6 / 22...
-
Page 7: Main Features
Main Features ◆Support MPEG-2, MPEG-4, and fully DVB-S/S2 compliant, Full HD ◆H.264 MP@ML, MP@HL, MP@L4.1, HP@L4.1XVID, DivX, AVS JIZHUN@6.2, VC-1 ◆Video solution 1080p, 1080i ,720p,576p,576i, 480p, 480i ◆Audio decoding: MP1/2/3,AC3, AAC-LC, HE-AAC audio streams ◆DiSEqC1.0, 1.1, 1.2 and USALS ◆OSD in many language ◆Unlimited program memory ◆EPG for on screen channel information ◆Multiple Video outputs(HDMI, CVBS, YPbPr) -
Page 8: Menu Guide
Menu Guide 1. System The System menu use to modify system setting. User can set the AV setting, system setting, internet, password, do factory reset, box restart and check software’s information. 1). Press LEFT/RIGHT to choose menu 2). Press UP/DOWN to move the cursor 3). -
Page 9: System
System In SystemOperation menu, user can check and set the language, menu style, transparency, time zone, PVR information and IR control model. 1).Menu Language（English, Russian, Arabic） 2).Menu Style (New Style, Old Style) 3). Transparency (1-100%) 4). Time out (1-60sec) 5). Time Zone 6). -
Page 10: Factory
(the password could be 1-8 digitals) Factory In Password menu, user can set the receiver back to the factory-default settings. 1).Find the Factory in System menu. 2).There will show a window “Do you want to do factory reset?” 3).Press OK on Yes to do the reset, press OK on NO to exit from current menu. -
Page 11: Cam Setting
CAM Setting In CAM setting menu, user can do the CAM settings in this menu. The receiver can support Protocols like Newcamd / MGcamd/Camd3/CCcam/KAP/TTCam. 1).Set the protocol type 2).Input the informations like server, port , username and password . 3). Press OK to save all the settings and exit from current menu. -
Page 12: Net Drive
In Card info menu, user can check the inserted smart card’s information. Net Drive In Net Drive menu, user can check their computer’s multimedia files by pin in the computer’s IP address. 1).Iinput the IP address to make connection. 2).Input the remote folder, username, password and the local folder. -
Page 13: Update
Update In Update menu, user can update the new software when new software is available for your receiver. During SW download, do not turn off your receiver. 1).Make sure the new software has been copied in to a U-disk and the U-disk has connect with the receiver. -
Page 14: Media
*This function will only available after U-disk connected with the receiver. 4. Media The Media menu use to check and view the multimedia files. User can view the YouTube videos, check the PVR, play MP3 and video from U-disk and check EPG informations. 1). -
Page 15: Media
program in MEDIA-PVR menu. User could check the recorded file informations in this menu, like file size and date of recording. 1). Press RED key to delete 2). Press GREEN key to play 3). Press YELLOW key to hide 4). Press BLUE key to edit Media In Media menu, user can play the multimedia files from the connected U-disk, like MP3, MP4, videos and pictures. -
Page 16: Satellite
5. Satellite The Satellite menu use to do satellite settings. User can do antenna/LNB settings, satellite TV scanning and satellite list edition in this menu. 1). Press LEFT/RIGHT to choose menu 2). Press UP/DOWN to move the cursor 3). Press OK to enter into sub-menu 4). -
Page 17: Edit
Press Blue key to exit from current menu Edit In Edit menu, user can edit the satellite. Press Red key to edit the satellite Press Green key to add new satellite Press Yellow key to delete satellite Press Blue key to exit from current menu GPRS USB dongle (important accessory) : * Our Receiver able to pare with our X-Boy mini GPRS USB disk. - Page 18 LINUX IP APPLICATION ,IPTV FUNCTIONS: Special update way for S18hd :download a new software and copy it into a HDD/U-disk. Connect the HDD/U-disk with you receiver and power on, then receiver will upgrade automatically when power on.(before upgrade you should make sure that the receiver is on Power off mode.) By using our SatXtrem S18, you could enjoy the most popular IPTV, watch the hot videos on Youtube and adult TV on YouPron/Pronhub.
- Page 19 How can I find the IP MAC address of my receiver? Way 1. Press OK/info key when the screen shows no-signal or playing TV. You may see the IP MAC address on the lower right corner of the information frame . Way 2.
- Page 20 Media Player-can play online videos like IPTV through streaming URL CAM Keys-edit the sharing protocols like CCcam,newcamd/mgcamd,camd3,kap,ttcam,Ikcam)… Back up-make a backup file for your date, like CCcam, channel list… Restore-use backup file to restore the date, like CCcam, channel list… Channel list ,all satellite TV channels IPTV , inside all iptv channels Media player, inside has iptv player ,has YouTube,youku,pplive,pps,QQ video etc...
- Page 21 Our IPTV player supporting RTMP, HTTP, RSTP etc many iptv protocols ,if you have those source you can play from here into TV .also you can add the iptv to be your iptv channel list . Hope to add iptv ? Go to web control , go to IPTV Click , then you will have a dialogue frame as the following : Then ,category ,you can click here to get choice ,for example to choice item for “other”...
- Page 22 Same way you can add more category , get a new name here , then click “ OK” finished . Q5 : How to edit TV name and move the TV channel into another category ? this is edit button for any iptv channel , after click it , come out the following change name ,click OK ,then name changed .
