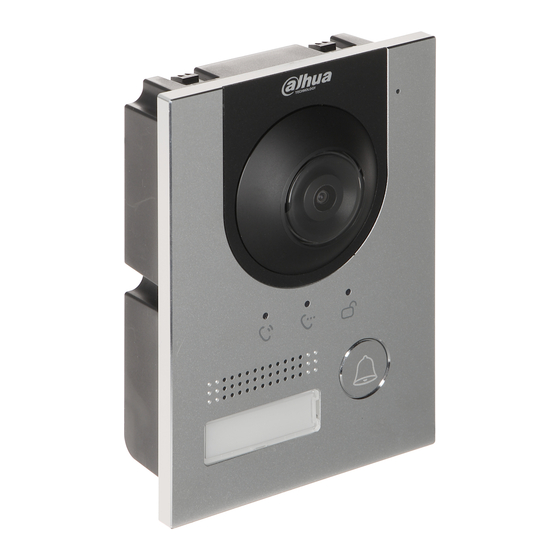

- Page 1 Offi cial UK distribution partner VTO2202F-P QUICK INSTALL GUIDE Please read this document before installation tel: +44 (0)1457 874 999 | fax: +44 (0)1457 829 201 | email: sales@cop-eu.com | web: www.cop-eu.com...
- Page 2 The VTNS1060A is a 24v passive PoE unit, this is a different type of PoE than that seen on conventional IP devices. As such, both the VTO2000A and VTH1550CH can only be used with 24v passive PoE or by connecting a 12/24v DC power supply to the power input terminals on the units. Example 1 VTO2202F-P VTH Passive PoE Monitor VTNS1060A Module...
- Page 3 Please note: The computer IP address must be in the same IP subnet. To initialise via the VDP Tool, fi rst download the Dahua Toolbox application and the VDP Tool. Go to www.dahuasecurity.com, the toolbox application can be found using the top menu.
- Page 4 1. Check the box next to the VTO to be initialised. 2. Click the initialise button to start the initialise process. 3. Enter the new password to be used for the VTO 4. Check or Uncheck Online update options. A direct and an email address for password recovery.
- Page 5 HOME SYSTEM CONFIGURATION VTO Camera Confi guration Login to the VTO via the computers web browser using the username of “admin” and the password entered during the initialisation stage. Once logged in to the VTO, Go to Local Setting Change Device Type to Villa Station Click Confi...
- Page 6 VTH Monitor Confi guration Before confi guring the VTH it must fi rst be initialised. Follow the on screen wizard to set an admin password. The password can only be made up of numbers. To confi gure the VTH unit use the built in menu within the monitor itself. VTH units do not support web browser confi guration. Hold down the Settings button for 5 seconds and enter the admin password set during the initialisation wizard.
- Page 7 The VTH Confi g menu is used to set the room number of the VTH and to confi gure the unit as a Master or Extension unit. If only a single VTH is being used in the system, then this should be set to Master and a room number chosen. Adding extension VTH units is covered on page 9.
- Page 8 To add the VTH to the VTO, revisit the VTO web browser and go to Household Setting > Room No Management. Click Clear to remove the rooms already added into the system by default. Click Add and enter the connection details for the VTH monitor such as Resident name and the register password chosen earlier. Please refer to page 6.
- Page 9 Adding Extension VTH Units Additional VTH monitors can be added to the system as Extension monitors. These monitors can then be called simultaneously along with the Master monitor. Up to 9 extension monitors can be added to each master monitor. To enable this feature and confi...
-
Page 10: Application Setup
APPLICATION SET UP Currently P2P is only supported for iOS and Android devices. Download the mobile application to your mobile device by scanning the QR codes below or by searching for the app in your relative app store. iPhone iPad Android Phone Android Tablet iDMSS - Free... - Page 11 7. Confi rm the serial number presented on 9. Enter a name for the screen matches the serial device and password, 8. Select VTO from the list number of the VTO and click the Save icon of Device types click Next Confi...
- Page 12 C O P U K , D e l p h N e w R o a d , D o b c r o s s , O L 3 5 B G E n g l a n d...
