Page 2

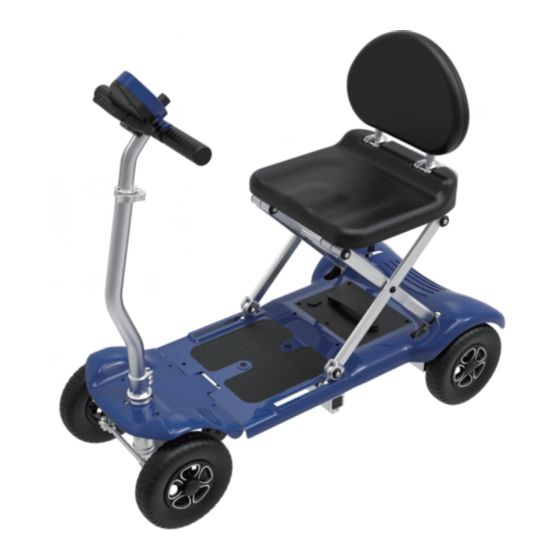

9 degrees, motorized roads, or rainy days, either. This Product model is N3458A, “N” is mobility scooter used indoor, “3” is for the code of product category code, “4” is for the quantity of product wheels,...
Page 3
II. SPECIFICATION AND STRUCTURE II. SPECIFICATION AND STRUCTURE Your scooter mainly consists of below parts: scooter body, seat unit, 1. TILLER CONSOLE (see fig.2) controller, motors, batteries, brake lever, driving wheels ,actuator and a. Power Switch anti-tip wheels. (see fig. 1) b.
Page 4
III. ASSEMBLY III. ASSEMBLY CHARGING YOUR BATTERIES OPENING THE PACKING BOX Charging is important to the batteries, and the off-board charger provided by When you open the box, take out the protective pads, then take out the whole us can simply and quickly charge the batteries of this mobility scooter. scooter.
Page 5
IV. OPERATION IV. OPERATION BATTERY CONDITION INDICATOR (see fig.2) TILLER CONSOLE When your scooter is powered up, this indicator shows the remaining The tiller console houses all of the controls needed to drive your scooter, including capacity of the batteries by 3 colors as red, yellow and green. the key switch, the speed adjustment knob, throttle control lever, battery condition Green: the battery is fully charged.
Page 6
V. CARE AND MAINTENANCE VI. SAFETY 1. It’s suggested to perform the safety check prior to using your scooter: GENERAL GUIDELINE Check all electrical connections. Make sure they are tight and not corroded. Avoid knocking or bumping all control parts; Check all connections to the battery box.
Page 7
VII. WARRANTY VI. SAFETY 8. INCLEMENT WEATHER PRECAUTIONS WARNING! Do not use your scooter in freewheel mode without an attendant present .Failure to do so may cause personal injury. WARNING! Do not operate your scooter in ice or slippery conditions. WARNING! Warning! Do not shift in your seat without your attendant Such use may adversely affect the performance and safety of your help when your scooter is in freewheel mode.
