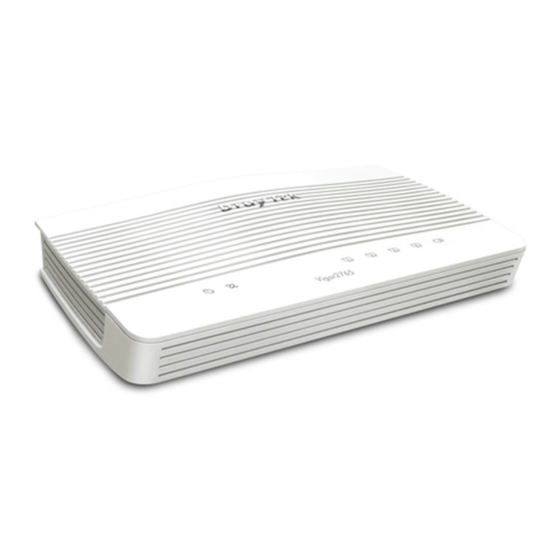

Vigor 2765 Series Quick Start Manual

Vdsl2/g.fast security router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Vigor2765/2766 Series
VDSL2/G.Fast Security Router
Quick Start Guide
(Wireless models)
Guide Version:
1.3
Region: United Kingdom & Ireland
For updates and support, visit www.draytek.co.uk
August 2021 / Firmware V4.2.3_BT
Note: Product specification is subject to continuous evolution which may
not always be reflected in current documentation. For the formal specification
and details of the supported features of your product, please refer
only to the web site at
www.draytek.co.uk
Regional and Network Compatibility
For all models, please check that you have been supplied with a device intended for your geographic region and networks.
Hardware and software varies by region, as well as local support and warranty services. To be sure of compatibility and local
support, ensure that you are buying the correct product through authorized channels. The outside of the product's box will
state the region compatibility (e.g. "Applied Region: UK"). If you are unsure, check with DrayTek or your supplier. The use of
unofficial components (e.g. PSUs) or adapting interfaces or the use of unauthorized software/firmware may cause malfunction,
product damage or personal danger and invalidates your warranty and access to support services.
i

Advertisement

Table of Contents
loading

Related Manuals for Vigor 2765 Series

Summary of Contents for Vigor 2765 Series

  • Page 1 Vigor2765/2766 Series VDSL2/G.Fast Security Router Quick Start Guide (Wireless models) Guide Version: Region: United Kingdom & Ireland For updates and support, visit www.draytek.co.uk August 2021 / Firmware V4.2.3_BT Note: Product specification is subject to continuous evolution which may not always be reflected in current documentation. For the formal specification and details of the supported features of your product, please refer only to the web site at www.draytek.co.uk...
  • Page 2 Safety and Warranty Information  Read the installation guide thoroughly before you set up the router. Safety  The router is a complicated electronic unit that may be repaired only be authorized and qualified Instructions personnel. Do not try to open or repair the router yourself. ...
  • Page 3 Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type Vigor2765 is in compliance with Regulation SI 2017 No. 1206. The full text of the UKCA Declaration of Conformity is available at the following internet address: https://www.draytek.com.tw/ftp/Vigor2765/Document/UKCA/ https://www.draytek.com.tw/ftp/Vigor2766/Document/UKCA/ Manufacturer: DrayTek Corp.

  • Page 4: Table Of Contents

    2. Panel Explanation....................2 2.1 Vigor2765ac/Vigor2766ac ......................2 2.2 Vigor2765Vac/Vigor2766Vac...................... 4 3. Hardware Installation ................... 6 3.1 Connecting up the Vigor Router....................6 3.2 Wall-Mounting the Vigor 2765 ....................7 4. Setup & Configuration..................8 4.1 Accessing the Router Web Interface..................8 4.2 WAN1 –...

  • Page 5: Package Contents

    DrayTek Vigor router Quick Start Guide (This document) RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Connects to your PC or Switch) (Connects to your DSL line) UK Power Adapter Antenna The maximum power consumption is 17-23 Watts. Important Remove the protective film from the router before use to Note ensure ventilation.

  • Page 6: Panel Explanation

    Status Explanation Blinking The router is ready and operating normally The router is powered off (Activity) DSL connection synchronised Blinking DSL connection not currently synchronizing or (DSL) (Slowly) not detected Blinking DSL connection is synchronising (Quickly) On (Green) 2.4GHz Access Point is active Blinking Data is being transmitted on the router’s 2.4 (Wireless LAN...
  • Page 7 Interface Description WLAN Press for less than 2 seconds to switch toggle the router’s ON/OFF/WPS wireless interfaces: For example,  2.4G (On) and 5G (On) – Default state.  2.4G (Off) and 5G (On) – press and release the button once. ...

  • Page 8: Vigor2765Vac/Vigor2766Vac

    Status Explanation Blinking The router is ready and operating normally The router is powered off (Activity) DSL connection synchronised Blinking DSL connection not currently synchronising or (DSL) (Slowly) not detected Blinking DSL connection is synchronising (Quickly) The phone connected to this port is off-hook The phone connected to this port is on-hook Blinking A phone call is incoming...
  • Page 9 Interface Description WLAN Press for less than 2 seconds to switch toggle the router’s ON/OFF/WPS wireless interfaces: For example,  2.4G (On) and 5G (On) – Default state.  2.4G (Off) and 5G (On) – press and release the button once.

  • Page 10: Hardware Installation

    LAN Connections: Connect a LAN port of the router to your computer or switch. Wireless Antennas: Connect the wireless antennas to the router Power Supply: Connect the power adapter to the Vigor 2765’s PWR socket on the rear and plug the power adapter into a suitable mains socket.

  • Page 11: Wall-Mounting The Vigor 2765

    DrayTek Vigor 2765/2766 series routers have keyhole type mounting slots on the underside to hang the router on, using screws attached to a wall or other surface. Drill two holes on the wall. The distance between the holes shall be 168mm.

  • Page 12: Setup & Configuration

    & & This section provides examples of how to initially access the router and configure internet access for the most common types of Internet connection in the UK. If the instructions in this quick start guide do not allow you to get online with your ISP or type of Internet connection, there are additional guides available from the Product Knowledgebase on www.draytek.co.uk.
  • Page 13 An example from Microsoft Edge, click “Continue to this webpage” to proceed: Most other browsers will present equivalent warnings. In each case, following the prompts/links will allow you to access the router's web interface. It is still encrypted with SSL/TLS. Note This warning appears because the router's default certificate is 'self-signed' rather than issued to you by a certificate authority...
  • Page 14 Note If you cannot access the web interface, please go to the “Trouble Shooting” section in the User Guide to determine the cause of and solve your problem. Upon successful login, the router will display the Dashboard, which shows a summary of the router model, WAN status, front panel port status and other information: Note...

  • Page 15: Wan1 - Adsl & Vdsl Connection Setup

    & – & The WAN1 interface of the Vigor 2765 router can connect to VDSL2 / 35b and ADSL2+ lines. If your Internet connection uses VDSL2 and your ISP has supplied you with a Username and Password to connect to the Internet, go to section 4.2.1 PPPoE connection with FTTC VDSL2...
  • Page 16 Click OK on that page to apply the changes. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details Page button to proceed: On the PPPoE / PPPoA settings tab: Select the Enable radio button at the top of the page to ensure that the PPPoE interface is enabled.
  • Page 17 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...
  • Page 18 Note If the WAN 1 IP address displayed begins with 172.16.x.x, it’s possible that the ISP has not accepted the supplied Username and Password for the Internet connection. Check that the ISP Access Setup - Username and Password match the details supplied by your ISP. 1.
  • Page 19 Click OK on that page to apply the changes. 3. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to MPoA / Static or Dynamic IP, then click the Details Page button to proceed: 4. In the MPoA / Static or Dynamic IP settings: Select the Enable option and select Obtain an IP address automatically which will obtain an IP from the ISP using DHCP.
  • Page 20 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. 5. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and DHCP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...

  • Page 21: Pppoa Connection With Adsl / Adsl2

    1. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA and click the Details Page button to proceed: 2. On the PPPoE / PPPoA settings tab: The details for the VPI and VCI settings for ADSL should be correct for UK usage, with 0 and 38 being the defaults.

  • Page 22: Wan2 - Ethernet Connection Setup

    – – The WAN2 interface of the Vigor 2765 router can connect to an ISP supplied router or another network with an Internet connection. The Ethernet WAN port is shared with the LAN port P4 and must be configured to operate in WAN mode as shown in section 5.3.1 Enabling the Ethernet WAN...

  • Page 23: Enabling The Ethernet Wan Port

    The Vigor 2765 series router uses port P4 to connect to an Ethernet based Internet connection. In its default state, the port P4 operates as a standard LAN port and the WAN2 (Ethernet WAN) options cannot be selected in the router’s web interface.

  • Page 24: Pppoe

    Once the router has been restarted to apply the change, the port will operate in LAN mode. This connection method will typically be used with a modem such as the Vigor 130 VDSL2 modem, which passes through the PPPoE connection from the ISP to the router.

  • Page 25: Static Or Dynamic Ip

    Click OK on that page to save the settings and the router will then prompt to restart, allow it to restart to properly apply the changes. Once the router has restarted, log back into the web interface and select [Online Status] > [Physical connection], if it has connected, the relevant WAN Interface status text will be in green along with an IP address which indicates that the connection is active and ready for use.
  • Page 26 Click OK on this page to apply the changes and the router will then prompt to restart. Click to restart the router. Once the router has restarted, log back into the web interface and select [Online Status] > [Physical connection], if it has connected, the relevant WAN Interface status text will be in green along with an IP address which indicates that the connection is active and ready for use.

  • Page 27: Wan3 / Wan4 - 3G / 4G Usb Modem Setup

    – – The 3G / 4G USB modem facility can be used either as a primary Internet connection or as a backup that will only activate when other WAN interfaces are offline. It allows a supported USB modem to provide internet access through the router.
  • Page 28 To set the APN Name, enter the APN required by the SIM card / network into the APN Name field and click the Apply button: This will move the APN Name into the Modem Initial String to indicate that it has been saved.

  • Page 29: Dhcp Mode

    To set up the USB WAN for DHCP mode, go to [WAN] > [Internet Access] Select 3G/4G USB Modem (DHCP mode) from the drop-down box Click the Details Page button to continue: In the USB WAN settings, select the Enable option to enable the WAN interface. Enter a SIM PIN code only if your SIM card has a PIN set on it, otherwise leave this blank.

  • Page 30: Getting Further Help

    You should keep your proof of purchase (original invoice) safely in case warranty or other service is ever required. This is a quick setup guide to get you online with your new router. Your Vigor 2765 series router is capable of very much more and has a plethora of other features.

  • Page 31: Firmware Updates

    It is strongly recommended that you keep your router firmware up to date with the latest version in order to have all of the latest security and feature improvements. Always obtain firmware from official sources, i.e. (for UK/Ireland users). There are two firmware file types: .all - upgrade retaining all previous settings .rst - upgrade and reset to factory default It is recommended to take a configuration backup prior to upgrading the...
