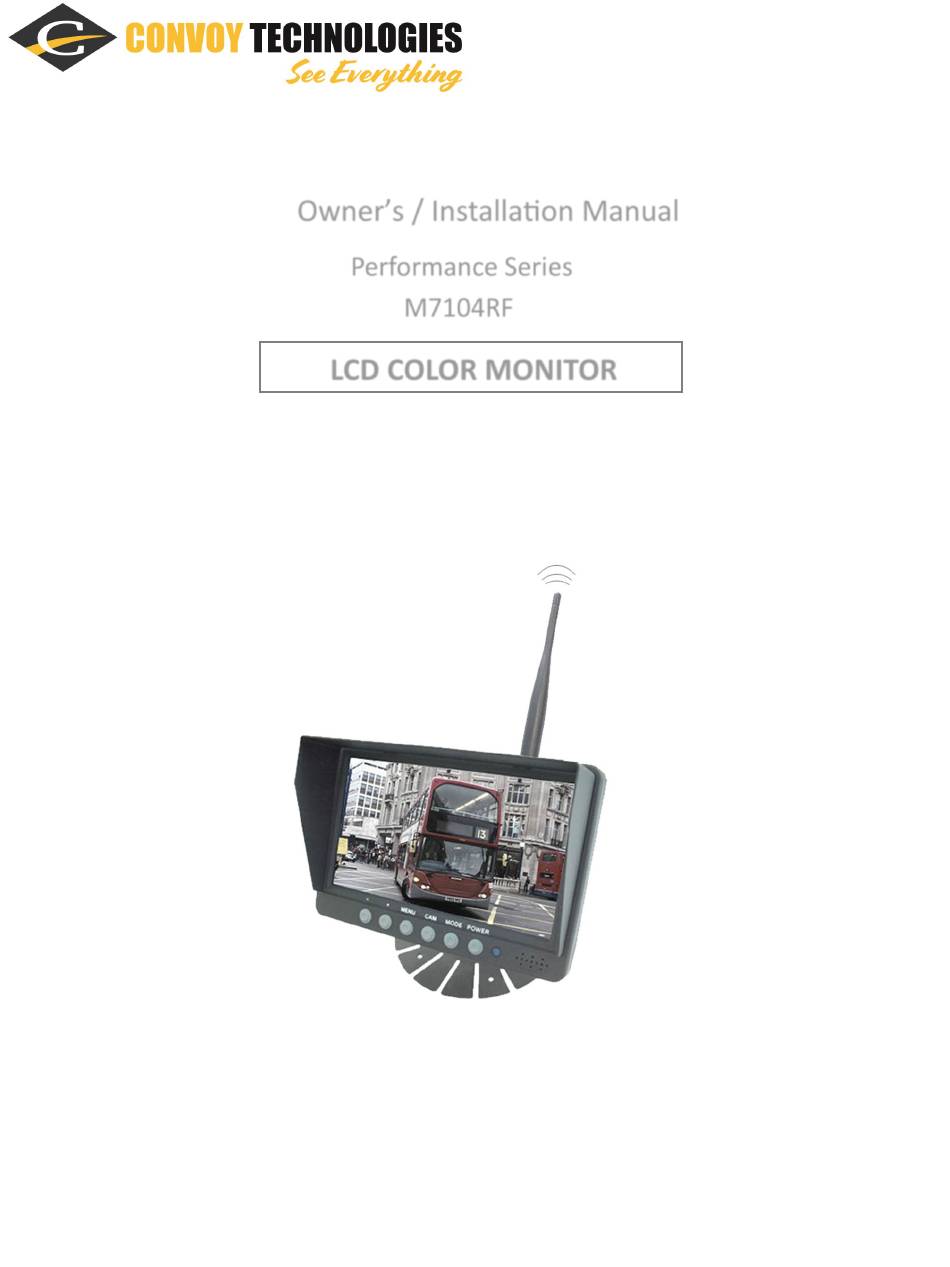

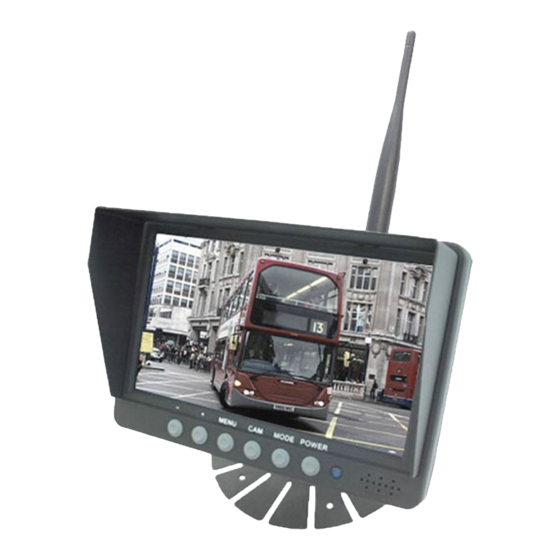

- Page 1 Owner’s / Installation Manual Performance Series M7104RF LCD COLOR MONITOR Please read this manual thoroughly before operating the unit, and keep it for further reference. Convoy Technologies 3300 Irvine Ave., Suite 310 | Newport Beach, CA 92660 | Ph (888) 565-2583...
- Page 2 Owner’s / Installation Manual Performance Series M7104RF PRECAUTIONS 1. Precautions Storage and keeping Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30 ~+75 C, and the oper ating temperature is -20 ~+60 C. The Humidity is Rh90%. Never use this device near a bathtub, wash basin, kitchen, damp basement, swimming pool or similar place.
- Page 3 Owner’s / Installation Manual Performance Series M7104RF PRECAUTIONS 1. Precautions Maintenance 1. Remove all the cable connections from the monitor before cleaning the unit. 2. Use a mild household detergent and clean the unit with a slightly damp, soft cloth. Never use strong solvents such as thin- ner or benzene, as they might damage the finish of the device.
- Page 4 Owner’s / Installation Manual Performance Series M7104RF Mounting the Monitor 1) Select a location allowing 2” space between monitor and walls, cabinets, or other objects to allow adequate air circulation around it. Avoid enclosed spaces, areas with excessive vibration or subject it to severe impacts. 2) Never use this device in environments with excessive moisture, dust or smoke Do not place cables where they may be pinched or stepped on.
- Page 5 Owner’s / Installation Manual M7104RF Operation (1) - button – Vol Down, or adjusting Down (2) + button – Vol Up, or adjusting UP (3) MENU – Access menu: Picture, Audio, Options, Ch Delay, Back Delay (4) CAM – Switches camera channel, or select an option in MENU. (5) MODE –...
- Page 6 Owner’s / Installation Manual Performance Series M7104RF Replacing the Remote Batteries Troubleshooting Symptom possible Causes/Solutions No picture. No sound Improper connection of automobile adapter. Use of un-authorized power supply. Power switch is on OFF position No picture Check whether locking cable is properly connected. No sound Check whether locking cable is properly connected, or the sound volume is set too low Dark picture...
