Summary of Contents for Greenlite Airz

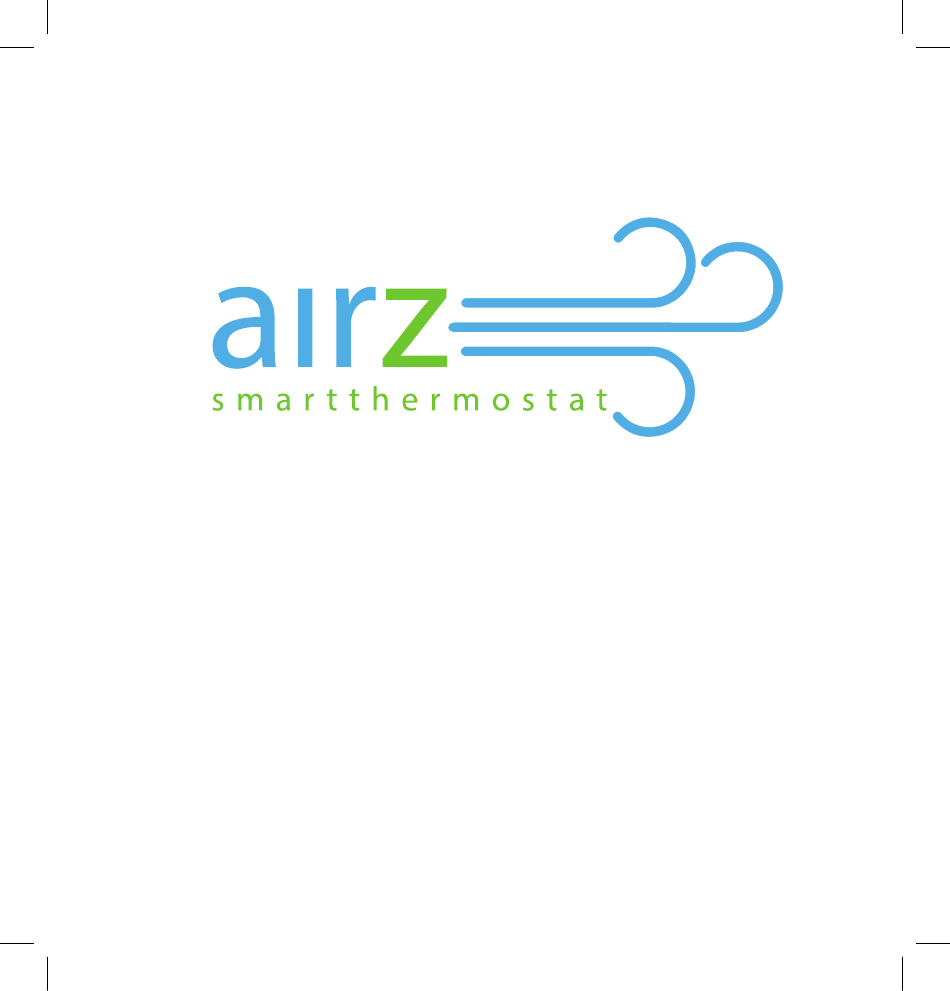

- Page 1 Installation Manual...

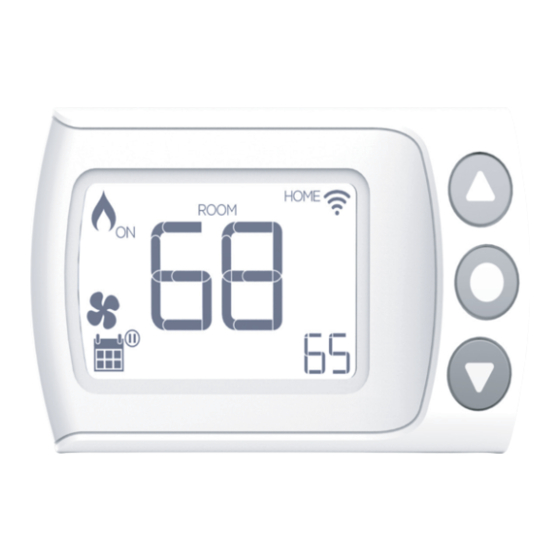

- Page 2 Greenlite Airz is ready to make your home energy efficient and more comfortable. Follow these easy steps to get started. Greenlite Products offers installation and product videos Please visit greenliteusa.com. To contact Greenlite Technical Support, please call 267.417.3277. For more information about installation settings, please visit greenliteusa.com...
-
Page 3: Table Of Contents
1. START HERE INSIDE THE BOX: Greenlite Airz Power Wire Mounting Screws Wall Anchors Wire Labels Wall Plate Screwdriver Required Tools: -Phillips Screwdriver -Smartphone Optional Tools: -Power Drill -Wire Stripper Table of Contents Start Here ..................2-5 2. Installing with a C-Wire ..............6-9 3. - Page 4 Step 1.1: Download the free Greenlite Thermostat App to your mobile device and create an account. Step 1.2: Set your phone aside and turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
-
Page 5: Start Here
They are not needed for installing your Greenlite Airz Step 1.6: Confirm that you have a C-Wire. If you do, please turn to the next page. If you do not, please skip ahead to page 10. -
Page 6: Installing With A C-Wire
• Heat Pump with auxiliary heat or dual fuel (Y, G, R, O/B, W, C) If you have only one R wire, please use the RH terminal. If you have a different configuration other than what is listed above, please call Greenlite Technical Support for help with your installation. 267.417.3277... - Page 7 Separate Greenlite Airz from its base, pull the halves apart from the bottom edge. Pull the wires from your wall through the center hole of the Greenlite Airz base. Secure the base to the wall using the included mounting hardware.
- Page 8 If you have both an O wire and a B wire (i.e. in some systems), please install the B wire to the “C” terminal. For more detailed directions, please see the wiring diagrams in the appendix or call Greenlite Technical Support. 267.417.3277...
- Page 9 INSTALLATION WITH C-WIRE Installation with C-wire Step 2.8: Securely fasten Greenlite Airz onto its base. Once it has clicked into place, return power to your heating and cooling system. Step 2.9: After your thermostat powers up, you are ready to...
- Page 10 Installing without a C-Wire Using the Power Wire (included) Install and wire Greenlite Airz Install Power Wire (at your furnace) For installation without C-wire, you will need to access your furnace. Before starting STOP Turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
- Page 11 • Conventional 1H/1C (Y, G, W, R) • Conventional 2H/1C (Y, G, W1, W2, R) If you have a different configuration than what is listed above or if you have an electric furnace, please call Greenlite Technical Support for help with your installation. Step 3.2: Remove each wire from its terminal –...
- Page 12 G Wire C Terminal NOTE: The G wire was previously in the G terminal, it will now go to the C Terminal on Greenlite Airz Step 3.7: Securely fasten Greenlite Airz onto its base. Step 3.8: Go to your furnace – remove the door or panel and locate your control board or transformer.
- Page 13 Step 3.11: Return power to your heating and cooling system. If your system, including your thermostat, does not power up please call Greenlite Technical Support. After Greenlite Airz powers up, you are ready to configure it for your heating and cooling system (page 21) and connect to a wireless network (Skip to page 22).
- Page 14 Installing without a C-Wire Using the Power Bridge Install Power Bridge Install and wire (at your furnace) Greenlite Airz Power Bridge available at: greenliteusa.com For installation without C-wire, you will need to access your furnace. Before starting STOP Turn off the power at the circuit breaker to both your heating and cooling systems before performing any wiring.
- Page 15 Step 4.5: Separate Greenlite Airz from its base, pull the halves apart from the bottom edge. Pull the wires from your wall through the center hole of the Greenlite Airz base. Secure the base to the wall using the included mounting hardware.
- Page 16 R Wire Terminal 3 G Wire Terminal 4 Step 4.7: Securely fasten Greenlite Airz onto its base. Step 4.8: Go to your furnace – remove the door or panel and locate your control board or transformer. In most cases, there should be four wires running from the furnace to your thermostat –...
- Page 17 Step 4.11: Return power to your heating and cooling system. If your system, including your thermostat, does not power up please call Greenlite Technical Support. After Greenlite Airz powers up, you are ready to configure it for your heating and cooling system and connect to a wireless network.
- Page 18 Setup - Selecting your System Type Step 5.1: After your thermostat powers up, your Greenlite Airz will auto scan the terminal pins to determine what type of HVAC system you have. If there is more than one possible system type, you will need to select your system type (options described on the next page).
-
Page 19: Hvac System Setup
HVAC SYSTEM SETUP System options: Electric Furnace: Electric system with fan. Thermostat calls for fan to run with heat. Gas Furnace: Gas system with fan. Thermostat calls for fan to run with heat. Air Conditioning Only: Cooling Only. Thermostat calls for fan to run with cool. Continued on Page 20. - Page 20 NOTE: If you have a heat pump system, press the center button to select. Greenlite Airz will now ask you to confirm your valve type. Use the up and down arrows to toggle between O & B Valves, press the center button to select: 267.417.3277...
- Page 21 Greenlite Airz will toggle between the screens below: Cool With P-Wire: This represents an air conditioning system utalizing the P-Wire. Greenlite Airz will toggle between the screens below: NOTE: When using the Power Wire, your system will only call for fan when the device calls for heat or cool, respectively.
- Page 22 Step 6.2: After selecting “Setup”, Greenlite Airz will display: “Step 1: App”. Make sure that you have downloaded the Greenlite Smart Thermostat to your smartphone. Step 6.3: With “Step 1: App” displayed on screen, push the center button to continue.
-
Page 23: Connecting To The Network
WiFi information that is on a label on the base of your thermostat. Step 6.6: After you have connected to the Greenlite Airz WiFi Network, switch back to the Greenlite app. Select your home WiFi network from the list of available networks and enter the password. - Page 24 WPA2. For more information about how to check your network settings, please check your router’s documentation or label. NOTE: Open the Greenlite App. If you are adding your first device, select the Greenlite Airz shaped icon. If you are adding an additional device, start from the “Locations” menu and select the “+”...
- Page 25 When you see the thermostat’s home screen with a WiFi icon, it means you are connected. Installation is complete and your Greenlite Airz is ready to go. Now let’s save some energy and make your home more comfortable. You can now control your comfort from anywhere with an internet connection! greenliteusa.com...
- Page 26 Conventional System With C-Wire Wiring Diagram HEAT (Stage 1) HEAT (Stage 2) COOL TRANSFORMER FURNACE THERMOSTAT NOTES: • The W2 terminal is used for 2 stage heating systems only • If you have both an RH and RC wire, please remove the red cap from the back of the thermostat 267.417.3277...
-
Page 27: Appendix
APPENDIX Heat Pump System With C-Wire Wiring Diagram AUX/EMER HEAT CHANGEOVER VALVE COMPRESSOR TRANSFORMER HEAT PUMP THERMOSTAT NOTES: • The W1 terminal is used for Auxiliary/Emergency heat or on Dual Fuel systems greenliteusa.com... - Page 28 Conventional System Without C-Wire (BEFORE Power Wire) Wiring Diagram POWER HEAT COOL TRANSFORMER THERMOSTAT FURNACE NOTES: • At your thermostat, you will move the G Wire (dark) to the C Terminal. 267.417.3277...
- Page 29 APPENDIX Conventional System Without C-Wire (AFTER Power Wire) Wiring Diagram POWER HEAT COOL P-WIRE TRANSFORMER THERMOSTAT FURNACE NOTES: • The G Wire (dark) that previously went to the Fan Terminal now connects to the Furnace Transformer • The Power Wire (white) connects to both the Fan Terminal as well as the Cool Terminal (with the Y Wire) greenliteusa.com...
- Page 30 HEAT (Stage 2) FURNACE THERMOSTAT NOTES: • If you have a heat pump or dual transformer system, please call Greenlite Tech support. • If you have any wires on your furnace not shown here, please leave them as is. 267.417.3277...
- Page 31 APPENDIX FCC Part 15C Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 32 Greenlite Lighting Corporation Irvine, CA 92606 USA greenliteusa.com Designed in Philadelphia 54072...
