Cold Planer 18 & 24
Skid Steer Loaders
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
Lead from lead based paints,
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Read the Manual Before Use
For
Operator's Manual
Maintenance
Parts Information

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cold Planer 18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erskine Attachments Cold Planer 18

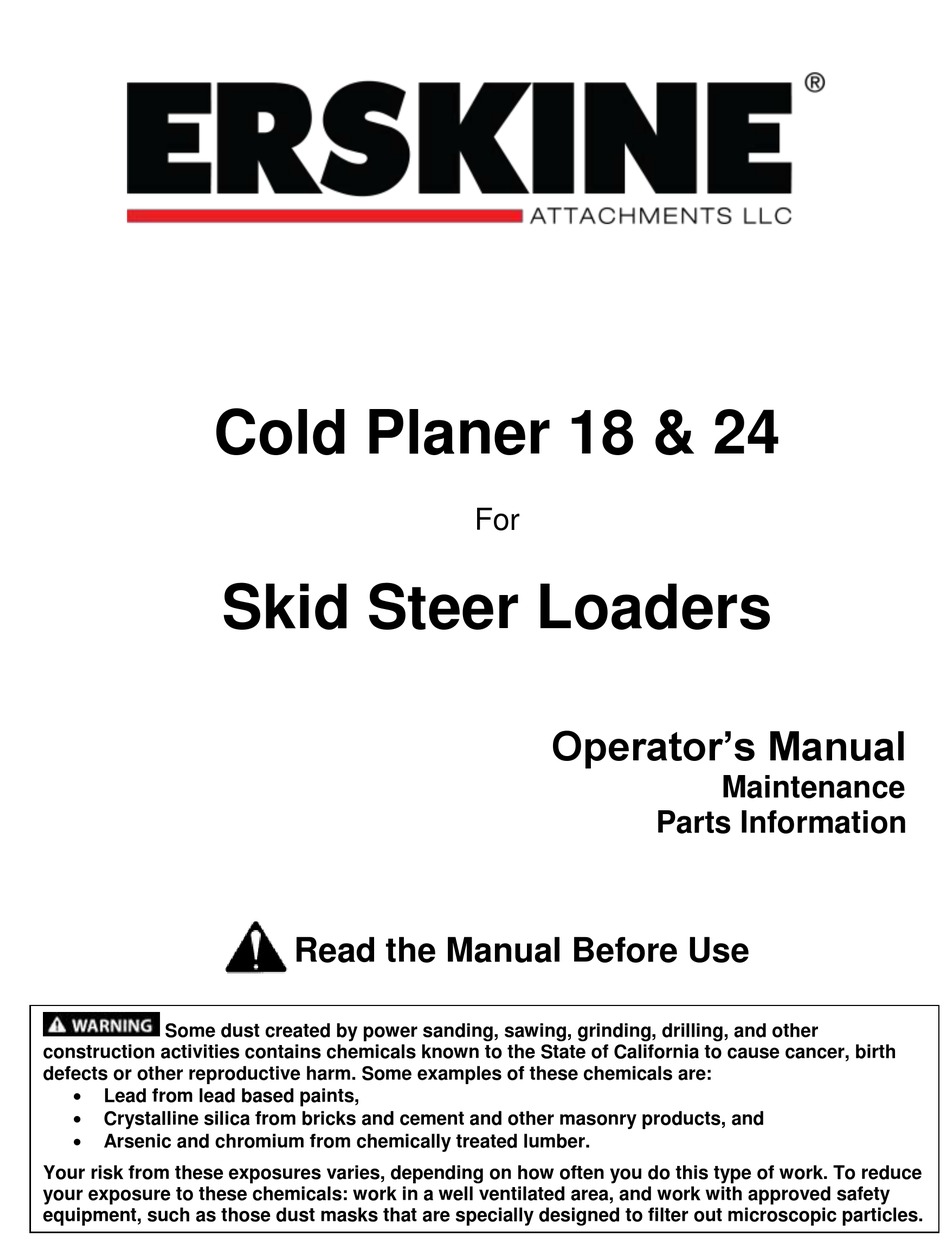

  • Page 1 Cold Planer 18 & 24 Skid Steer Loaders Operator’s Manual Maintenance Parts Information Read the Manual Before Use Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
  • Page 2: Table Of Contents

    Serial Number………….._____________ YOUR ATTACHMENTS DEALER ADDRESS: PHONE: CONTACT: NOTE: Erskine Attachments LLC reserves the right to make improvements in design or changes in specifications at any time without notice and without incurring any obligations to install them on units previously sold.
  • Page 3: Safety

    Indicates potentially Erskine Attachments LLC cannot anticipate every hazardous situation which, if not avoided, possible circumstance that might involve potential will result in death or serious injury.
  • Page 4 Keep all shields, guards, and covers in place. penetrate the skin causing serious injury.  Do not modify equipment or add attachments that are not approved by Erskine Attachments LLC.  Avoid the hazard by relieving the pressure before disconnecting ...
  • Page 5 SERIAL NUMBER AND SAFETY DECAL LOCATIONS Serial Number Location: It is important to refer to the serial number of the attachment when making repairs or ordering parts. Early or later models (identification made by serial number) may use different parts, or it may be necessary to use different procedures in doing a specific operation.
  • Page 6 Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over Part Number: 314796 they must be replaced. Call Erskine Attachments Location: On back of main body weldment LLC (218-435-4045) for replacement decals.
  • Page 7: Mounting Instructions

    MOUNTING INSTRUCTIONS After uncrating the attachment, use the following procedure to mount the Cold Planer to the loader. WARNING! Coupler wedges or pins must extend through the holes in the attachment mounting plate. Levers must be fully down and locked. Failure to secure wedges or pins can allow attachment to come off and cause injury or death.
  • Page 8 MOUNTING INSTRUCTIONS 7. Connect the hydraulic quick couplers from the attachment to the loader. IMPORTANT: Make sure the quick couplers are fully engaged. If the quick couplers do not fully engage, check to see that the couplers are the same size and brand. Do not force the quick couplers together.
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS Operation 1. With the operator in the seat of the loader, the seat belt fastened and the seat bar lowered (if so equipped), start the engine. 2. Activate the high flow auxiliary hydraulic system to start the drum rotation, and then making sure to increase the loader engine to full throttle.
  • Page 10 OPERATING INSTRUCTIONS Cutting Head Rotation and Side Shift Operation 1. Roll the skid steer arms fully back and raise the planer 12 to 15 inches off the ground. IMPORTANT: Planer must be raised above the ground while operating the side shift and head oscillation adjustment features.
  • Page 11 OPERATING INSTRUCTIONS Large Area Single Pass Milling The independently controlled skid shoes allow for continuous milling at a consistent depth across large areas. This is achieved by setting Previously the desired depth of cut for the skid shoe on the Unmilled surface milled surface unmilled side of the planer and setting the other...
  • Page 12 OPERATING INSTRUCTIONS Taper Cuts The independently controlled skid shoes and rotating head allow for tapered cuts along the perimeter of any paved surface. This works well for patching old pavement, or joining new paved surfaces together by creating a smooth transition between the surfaces being joined.
  • Page 13: Routine Maintenance

    ___ _ ROUTINE MAINTENANCE WARNING! Lower the attachment to rest, shut down the engine, relieve the hydraulic pressure to the attachment, wait for all motion to stop, and set park brake before leaving the operator’s seat to perform service of any kind. If servicing attachment while attached to a skid loader, make sure that the hydraulic couplers are disconnected.
  • Page 14 ROUTINE MAINTENANCE Pick Inspection, Setup, Removal, & Installation Inspection: The factory installed carbide picks are specifically Replace designed to be a wear product. The life expectancy of the picks will depend greatly on the hardness, the abrasiveness, and the thickness of the material being cut.
  • Page 15 ROUTINE MAINTENANCE Recommended Lift Points for Drum Removal Cold Planer Drum Replacement 1. Position the cold planer in a location that will allow the use of a hoist to lift the planer off the drum. 2. Remove the right side skid shoe (11) first, by removing the two large retaining washers (25) and then the guide plate (16).
  • Page 16: Parts Information

    PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 314700 MOUNT FRAME CP W/A 319500 MOUNT FRAME CP MULTIHOG W/A MULTIHOG MOUNT ONLY 314701 BODY MAIN 24 W/A 314838 BODY MAIN 18 W/A 314702 PIVOT 24 COLD PLANER W/A 314839 PIVOT 18 COLD PLANER W/A 319501 PIVOT MOUNT CP MULTIHOG 18 W/A MULTIHOG MOUNT ONLY...
  • Page 17 PARTS INFORMATION___________________...
  • Page 18 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 314405 SKID SHOE CP W/A 314703 LIFT ARM 24 LH W/A 314842 LIFT ARM 18 LH W/A 314704 LIFT ARM 24 RH W/A 314841 LIFT ARM 18 RH W/A 314707 COVER FRONT 24 W/A 314843 COVER FRONT 18 W/A 314709...
  • Page 19 PARTS INFORMATION___________________...
  • Page 20 PARTS INFORMATION ITEM PART NO. DESCRIPTION STOCK NO. 314781 PLATE PIVOT KEEPER PAINTED (314774 UNPAINTED) 314784 SHIELD CP VALVE PAINTED (314783 UNPAINTED) 314809 PLASTIC RETAINER DISK 314656 WASHER .53ID X 2.75OD X .25 Z 33626 WASHER LOCK 1/2" 33630 WASHER LOCK 5/8"...
  • Page 21 PARTS INFORMATION___________________...
  • Page 22 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 314486 PKG OPT ROLLER BOLT ON CP 314411 FRAME MOUNT ROLLERS CP W/A 319327 ROLLER FORGED 5 X 1 X 2.75 314484 BUSH 1 X .66 X 3.38 Z 33090 WASHER FLAT SAE 5/8”...
  • Page 23 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 317274 CYLINDER 2 X 24 B-H SIDE SHIFT CYL 400074 CYLINDER 2 X 4 B-B TILT CYL 314716 VALVE ASSM 4-FUNC CP 314893 HOSE 3/8 x 14" 6FJX-6FJX SR PORT/SIDE SHIFT CYL 201539 ADPT ELB 6MB-6MJ-90 VALVE BLOCK...
  • Page 24 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 400015 CYLINDER 2.5 X 6 B-B 201925 ADPT STR 8MB-6MJ LH CYL 201539 ADPT ELB 6MB-6MJ-90 VALVE BLOCK 314822 ADPT ELB 6MB-6MJ-90LL VALVE BLOCK 300274 ADPT ELB 8MB-6MJ-45 RH CYL 314801 HOSE 3/8 x 64" 6FJX-6FJX90 LH CYL 314800 HOSE 3/8 x 80"...
  • Page 25 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 314420 MOTOR 52.3 MS08HF WHEEL HUB REPLACED 314815 314815 MOTOR 47.6 MS08 OBSOLETE REPLACED BY 314420 314711 PLATE COVER MOTOR CP (NOT SHOWN FOR PARTS) 314712 O-RING 5.5 X 3/32 (-161) (NOT SHOWN FOR PARTS) 314832 ADPT ELB 12MB-12MJ-90L MOTOR...
  • Page 26 PARTS INFORMATION___________________ ITEM PART NO. DESCRIPTION STOCK NO. 300982 VALVE CHECK #8 100PSI 314899 COIL VALVE 12V ECOIL #10 300955 WASHER E-COIL SPACER SP10 321003 VALVE DIRECTIONAL 10-57D 330839 VALVE CHECK DUAL PO 300298 VALVE RELIEF HIDDEN 08-20H 330959 LOGIC ELEMENT FLOW REG DRAIN CP...
  • Page 27: General Specifications

    GENERAL SPECIFICATIONS CP18 Specifications CP24 Specifications Motor Specs Motor Specs Mi ni mum Fl ow Ra te 22 GPM Mi ni mum Fl ow Ra te 25 GPM Ma xi mum Fl ow Ra te 40 GPM Ma xi mum Fl ow Ra te 40 GPM Ma xi mum Speed 170 RPM...
  • Page 28: Troubleshooting

    TROUBLESHOOTING PROBLEMS POSSIBLE CAUSE POSSIBLE SOLUTION Worn pick holders. Replace the worn holders. Excess material build-up on pick shank. Clean holder & shank with solvent. Holder not properly aligned. Remove incorrect holder and reposition. Slow down the machine. Excessive machine speed. Poor Rotation Caused by soft abrasive material.
  • Page 29 TROUBLESHOOTING ___________________ PROBLEMS POSSIBLE PROBLEMS POSSIBLE SOLUTION Motor on the planer Auxiliary hoses not hooked up to the Engage Couplers will not operate. skid steer. Obstruction in hydraulic lines. Remove obstruction and replace if necessary. Hydraulic motor damaged or seals Call service department for instructions.
  • Page 30 TROUBLESHOOTING PROBLEMS POSSIBLE PROBLEMS POSSIBLE SOLUTION Excessive oil temperature. Hydraulic oil level too low. Refer to skid steer's owner’s manual Obstruction in hydraulic lines. Remove obstruction and replace if necessary. Hydraulic oil or oil filter in skid steer is Refer to skid steer's owner’s manual. dirty.
  • Page 31 Erskine Attachments LLC to improve its products whenever it is possible and practical to do so. Erskine Attachments LLC reserves the right to make changes and or add improvements at any time without incurring any obligation to make such changes or add such improvements to products previously sold.
  • Page 32 P/N 314819 Date Printed: 8/28/2019 Printed in U.S.A. Erskine Attachments LLC...

This manual is also suitable for:

Cold planer 24
