Data Collector connection to Parani SD1000

1) Connect the Parani SD1000 to the standard RS232 9-pin connector of your total station.
2) Power on the total station, level it up and configure it for cable communication.

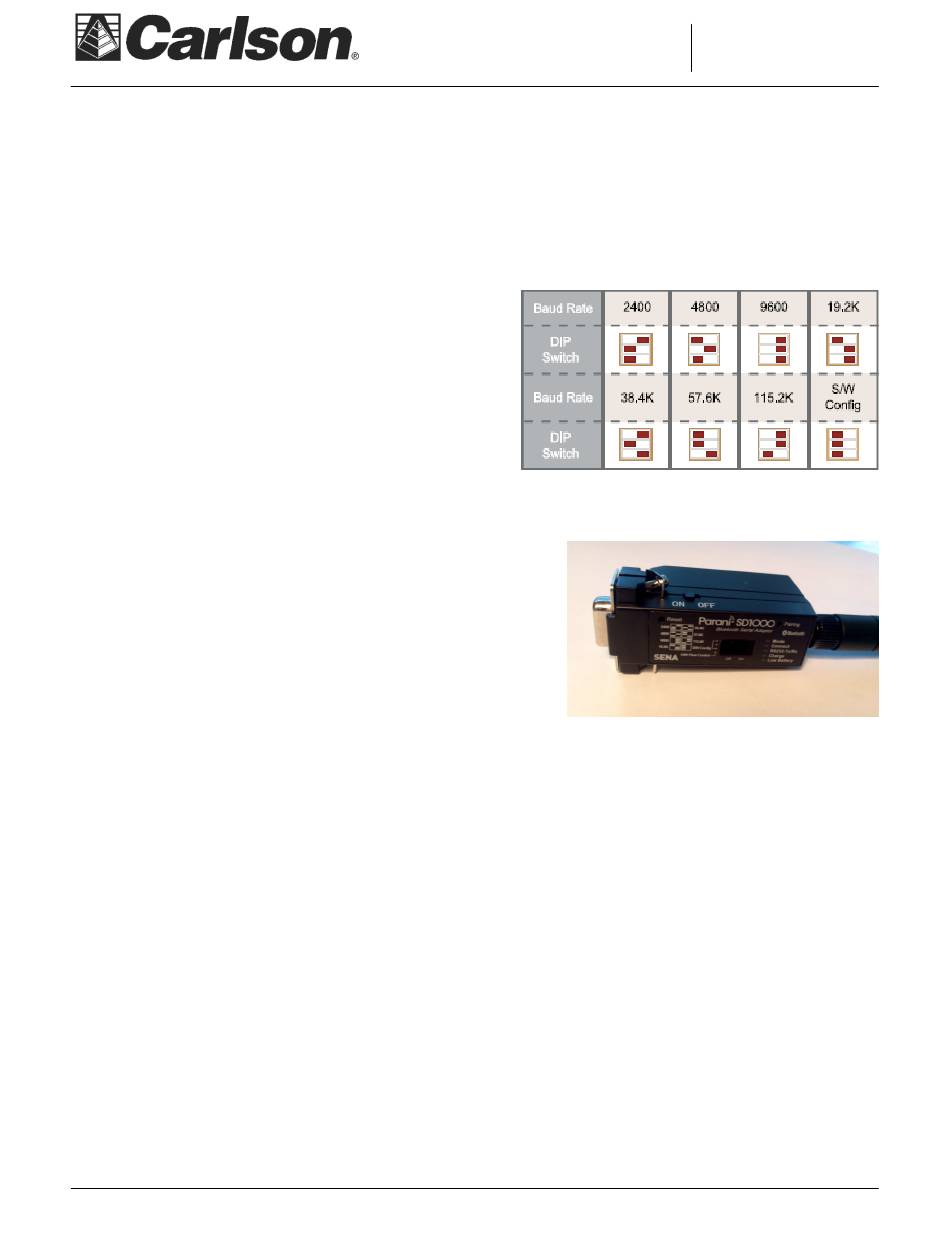

3) Set the Dip Switches on the Parani SD1000 to match
the Baud Rate of your Total Station instrument using
the table to the right
4) Attach an antenna to the Parani SD1000 radio before
powering it on. Power on the RS232 radio using the switch
on the side
If the RS232 radio won't power on and the extended battery was shipped separately you will need to
remove the back plate and attach the Extended Battery using the 2 screws that are included.
5) Use a small pin to press the Reset button until the MODE light is solid Green to clear out any
previously configured pairing.
6) Press the Pairing button for two seconds until the Mode LED blinks 3 times every 2 seconds. This puts
the radio in discoverable mode. Keep the power on.
7) Launch SurvCE on the data collector then tap the Equip tab and tap "Total station"
8) Set the appropriate Manufacturer and Model for your instrument then tap the Comms tab
9) Set it to Type: Bluetooth, and select the correct BT Type for your data collector.
10) Tap the "wrenches" icon to the right of BT Type, then tap "Find Device".
This document contains confidential and proprietary information that remains the property of Carlson Software Inc.
Page 1 of 2
Carlson Software Inc. . . .
Carlson Software Inc
Carlson Software Inc
Carlson Software Inc
102 West 2
Street
nd
Maysville, KY 41056
SD1000 RS232 Radio with Extended Battery
www.carlsonsw.com
www.carlsonsw.com
www.carlsonsw.com
www.carlsonsw.com
Phone: (606) 564-5028
Fax: (606) 564-6422
Updated 12/13/2012
