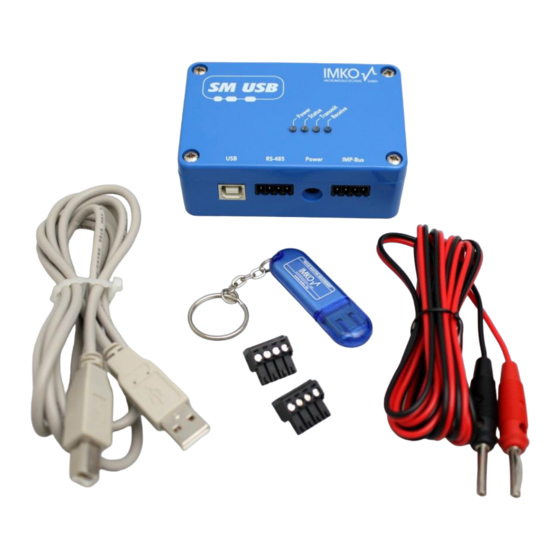

- Page 1 Manual for SM-USB (Level-Converter-Module) 1. SM-USB (with all accessories) 2. Optional available accessories PICO IMP-Bus adapter; Art.No.: 300094 Wall power supply SYS 1308 12V/2A; Art.Nr.: PICO RS485 adapter; Art.No.: 905059 300093...
- Page 2 3. Wiring with end splices via IMP-Bus 4. Wiring with end splices via RS485 5. Wiring with 4-pin connector via IMP-Bus (adapter required)
- Page 3 6. Wiring with 7-pin connector via RS485 (adapter required) 7. Wiring with external power supply (with banana plugs) 8. Wiring with external power supply (with wall power supply)
- Page 4 9. How to start-up with SM-USB-Module? Install USB-Driver (from USB-Stick) Connect the SM-USB to the PC and the installation will be accomplished automatically Install TrimeTool software (from USB-Stick) Check the setting of the COM-Port in the device manager and setup the specific COM-Port in the TrimeTool software (COM1-COM9 possible) ...
