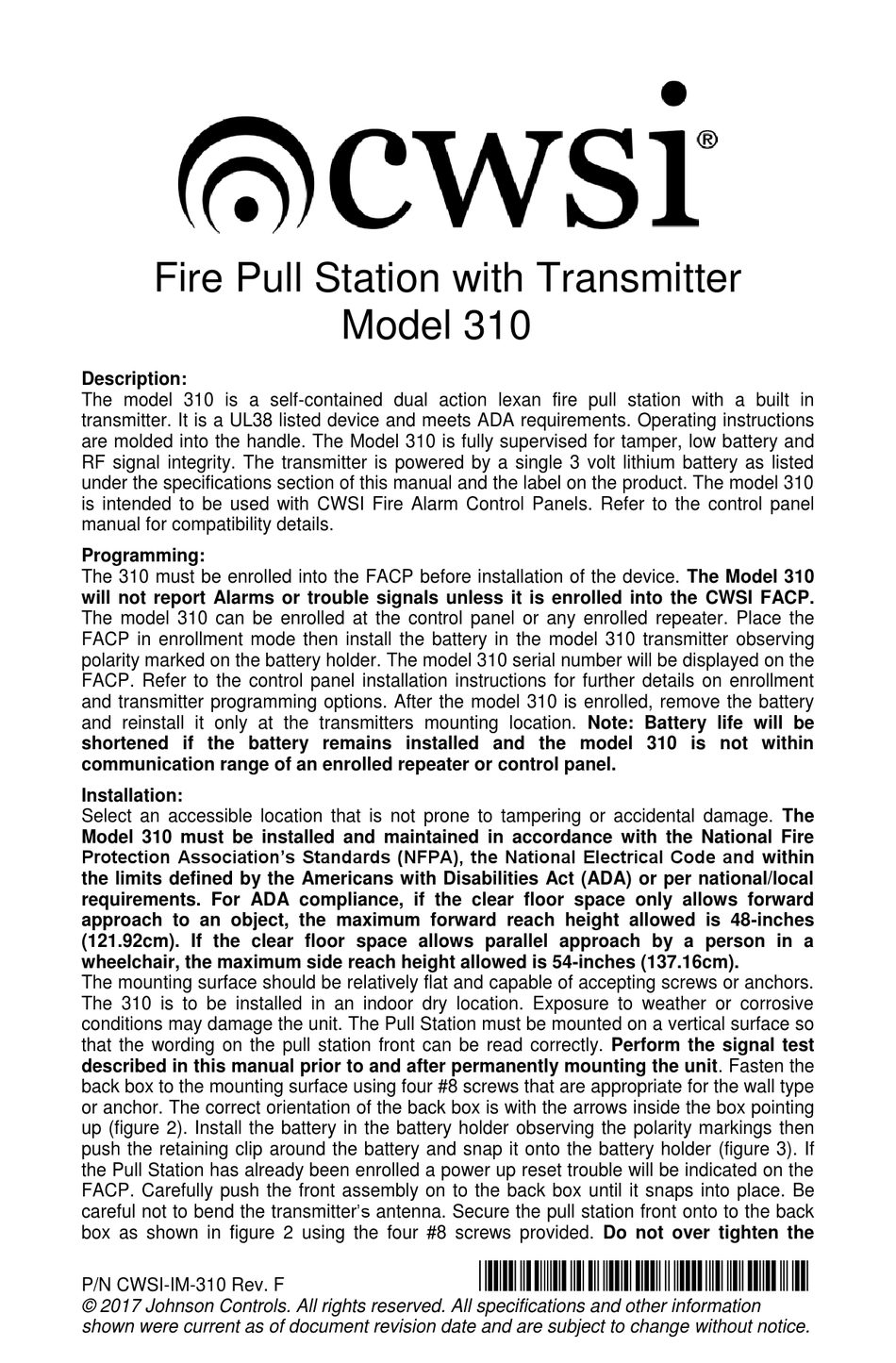

Fire Pull Station with Transmitter
Model 310
Description:
The model 310 is a self-contained dual action lexan fire pull station with a built in
transmitter. It is a UL38 listed device and meets ADA requirements. Operating instructions
are molded into the handle. The Model 310 is fully supervised for tamper, low battery and
RF signal integrity. The transmitter is powered by a single 3 volt lithium battery as listed
under the specifications section of this manual and the label on the product. The model 310
is intended to be used with CWSI Fire Alarm Control Panels. Refer to the control panel
manual for compatibility details.
Programming:
The 310 must be enrolled into the FACP before installation of the device. The Model 310
will not report Alarms or trouble signals unless it is enrolled into the CWSI FACP.
The model 310 can be enrolled at the control panel or any enrolled repeater. Place the
FACP in enrollment mode then install the battery in the model 310 transmitter observing
polarity marked on the battery holder. The model 310 serial number will be displayed on the
FACP. Refer to the control panel installation instructions for further details on enrollment
and transmitter programming options. After the model 310 is enrolled, remove the battery
and reinstall it only at the transmitters mounting location. Note: Battery life will be
shortened if the battery remains installed and the model 310 is not within
communication range of an enrolled repeater or control panel.
Installation:
Select an accessible location that is not prone to tampering or accidental damage. The
Model 310 must be installed and maintained in accordance with the National Fire
Protection Association's Standards (NFPA), the National Electrical Code and within
the limits defined by the Americans with Disabilities Act (ADA) or per national/local
requirements. For ADA compliance, if the clear floor space only allows forward
approach to an object, the maximum forward reach height allowed is 48-inches
(121.92cm). If the clear floor space allows parallel approach by a person in a
wheelchair, the maximum side reach height allowed is 54-inches (137.16cm).
The mounting surface should be relatively flat and capable of accepting screws or anchors.
The 310 is to be installed in an indoor dry location. Exposure to weather or corrosive
conditions may damage the unit. The Pull Station must be mounted on a vertical surface so
that the wording on the pull station front can be read correctly. Perform the signal test
described in this manual prior to and after permanently mounting the unit. Fasten the
back box to the mounting surface using four #8 screws that are appropriate for the wall type
or anchor. The correct orientation of the back box is with the arrows inside the box pointing
up (figure 2). Install the battery in the battery holder observing the polarity markings then
push the retaining clip around the battery and snap it onto the battery holder (figure 3). If
the Pull Station has already been enrolled a power up reset trouble will be indicated on the
FACP. Carefully push the front assembly on to the back box until it snaps into place. Be
careful not to bend the transmitter's antenna. Secure the pull station front onto to the back
box as shown in figure 2 using the four #8 screws provided. Do not over tighten the
*CWSI-IM-310F*
P/N CWSI-IM-310 Rev. F
© 2017 Johnson Controls. All rights reserved. All specifications and other information
shown were current as of document revision date and are subject to change without notice.
