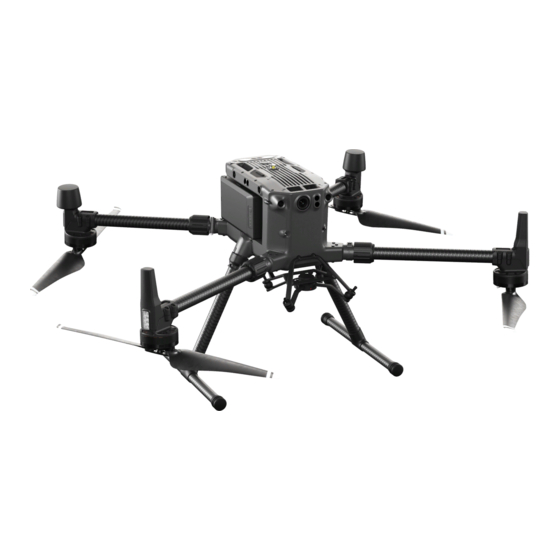

Summary of Contents for dji M300

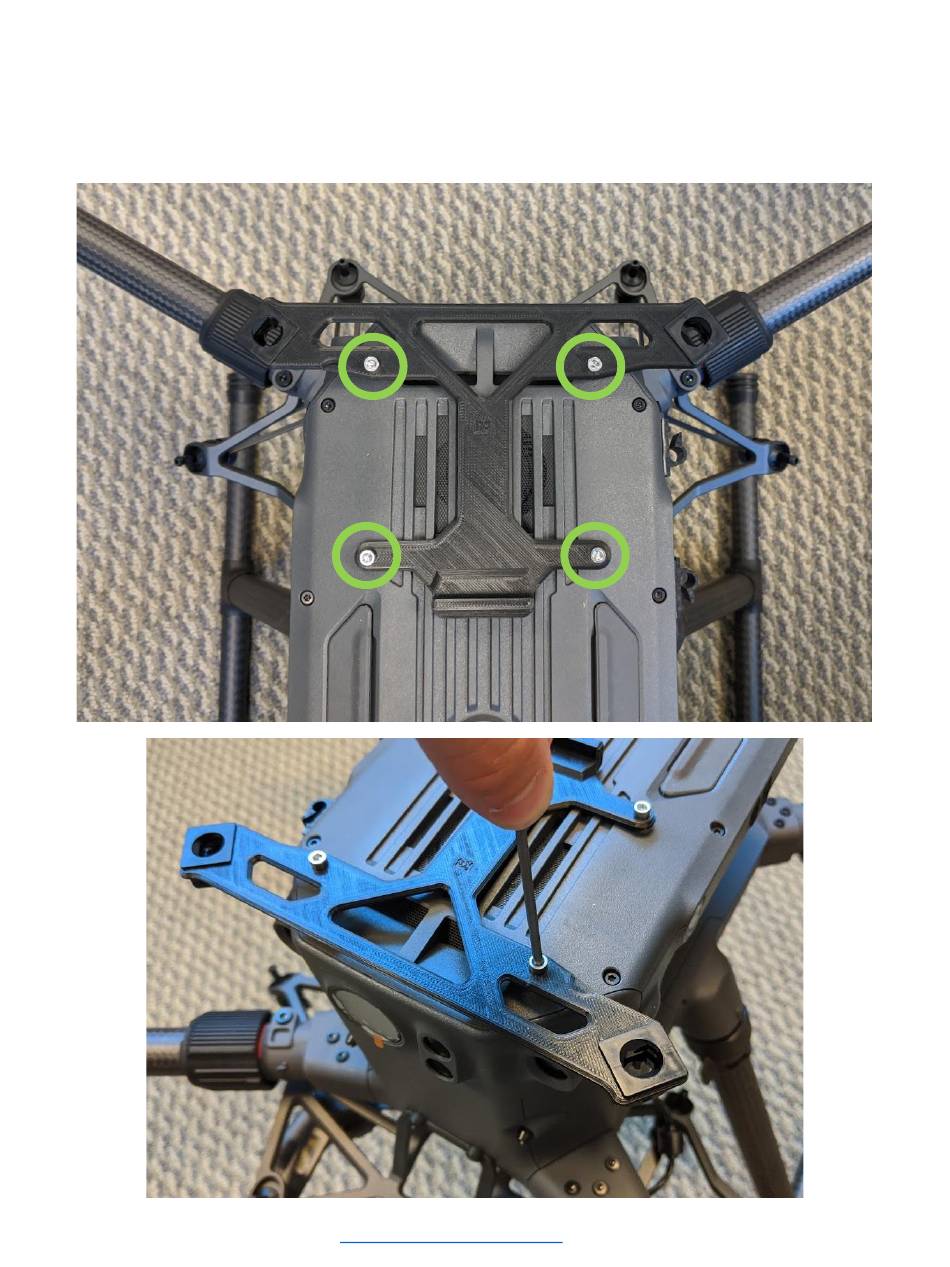

- Page 1 DJI M300 Integration Guide 1. Secure the GeoSnap PPK M300 mounting bracket using the 4 screws and included hex key to the top of the drone. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 2 2. Place the GeoSnap PPK on top of the M300 mounting bracket. You must first insert the tab of the GeoSnap PPK into the front receptacle on the M300 mounting bracket. Then press down and turn the two quarter-turn studs clockwise until a click is felt to lock the GeoSnap PPK in place.
- Page 3 3. Attach the cable routing clip in the location shown and route the GeoSnap PPK-to- hotshoe module cable through the clip. (The left cable routing clip pictured but not circled is only used when interfacing with the Auxiliary 6-pin connector for specialized integrations or when using MicaSense cameras.) Need help? Email support@fieldofviewllc.com...
- Page 4 4. Plug the GeoSnap PPK-to-hotshoe module cable into the 8-pin connector from the side of the GeoSnap PPK. 5. When you’re ready to fly, plug in the red battery power connector on the GeoSnap PPK. Need help? Email support@fieldofviewllc.com or call 701-203-3757 x3...
- Page 5 Offsets: Single SKYPORT Configuration Dual SKYPORT configuration Bottom-center of SKYPORT-to- Bottom-center of SKYPORT Bottom-center of SKYPORT antenna L1 phase center offset: I-to-antenna L1 phase II-to-antenna L1 phase center offset: center offset: X offset: +0.041 meters X offset: +0.123 meters X offset: -0.041 meters Y offset: -0.094 meters Y offset: -0.094 meters Y offset: -0.094 meters...
