- Page 1 time-warped reverberator QUICK START GUIDE...

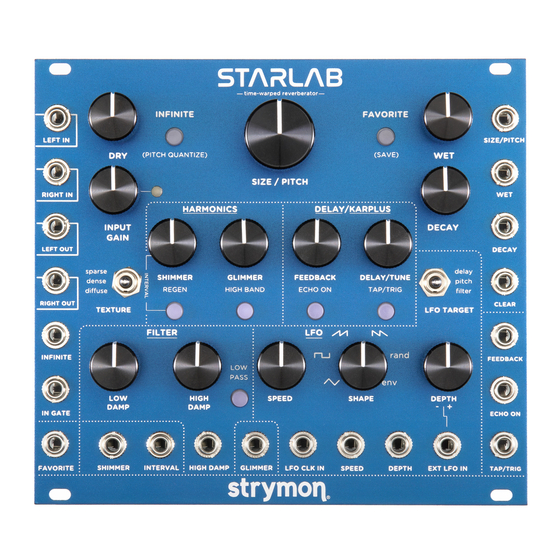

- Page 2 SIGNAL FLOW AND FEATURES STARLAB expands the sound of your Eurorack rig with lush reverbs as well as chorus, flanging, and modulated delays. STARLAB is also a full-featured Karplus- Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. Complete with LFO with multiple waveforms and targets, STARLAB is packed with powerful features and extensive CV I/O all while maintaining intuitive playability.
- Page 3 REVERB CONTROLS SIZE / PITCH Sets the level of unprocessed input signal Changes the process rate and size of the reverb Sets the overall reverberated signal level sent sent to the output. structure while maintaining the integrity of the reverb to the output.
- Page 4 DELAY AND HARMONICS CONTROLS HARMONICS DELAY/KARPLUS SHIMMER: Adds pitch shifting to the reverberated signal. Effect is off when FEEDBACK: Applies regeneration to the delay, resulting in more repeats with SHIMMER knob is fully counterclockwise. longer delays, or more resonance with shorter delays. When in Karplus- Strong mode, FEEDBACK affects string decay and structure resonance.
- Page 5 FILTER AND LFO CONTROLS FILTER LOW DAMP: Removes low end content both at the output and in the regenerating core portion of the reverb as the knob is turned clockwise. In Karplus-Strong mode, removes low frequency content of the string. HIGH DAMP: Removes high frequency content from the regenerating reverb structure as the knob is turned clockwise.
- Page 6 ADDITIONAL FUNCTIONS PRESET FUNCTIONS There are four onboard presets that are accessible using the FAVORITE button. SWITCHING BETWEEN PRESETS: To switch between presets, press and hold FAVORITE, then press one of the four center buttons. The currently selected preset will illuminate while holding down the FAVORITE button.
- Page 7 AUDIO AND CV INPUTS (QUICK REFERENCE) JACK NAME VOLTAGE RANGE DESCRIPTION LEFT IN / RIGHT IN +/-10V (20Vpp) Left and Right audio inputs. Use LEFT IN for mono input. LEFT OUT / RIGHT OUT +/-10V (20Vpp) Left and Right audio outputs. Use LEFT OUT for mono output. Engages the infinite effect to hold the input signal going into the reverb.
- Page 8 REV C...
