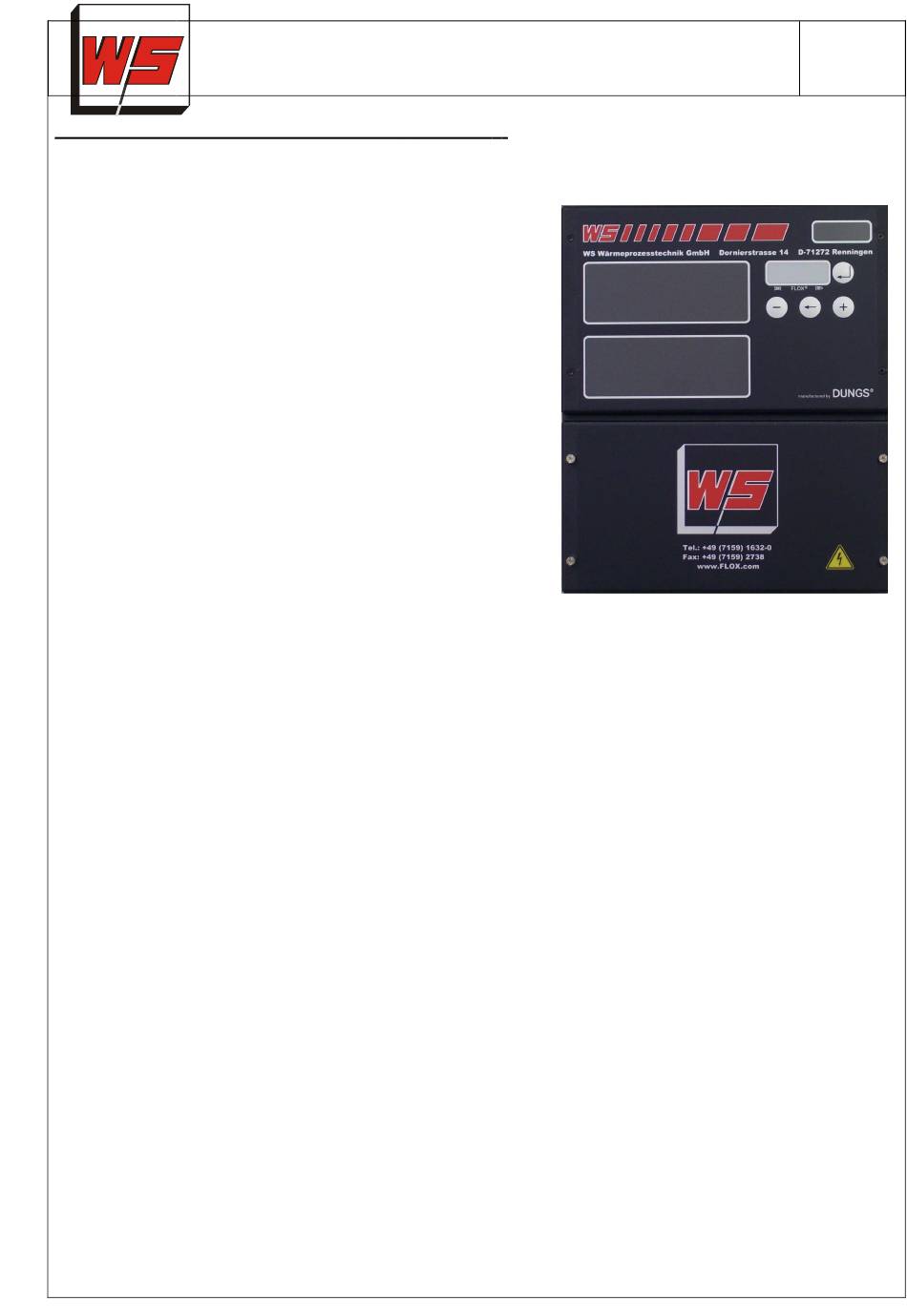

Burner Control CBR (Control Box Rekumat
Please follow all applicable safety regulations. Depicted configurations may differ from the actual scope of delivery, procedures however,
remain principally the same.
Burner Control CBR
The CBR burner control box incorporates the following
components:
•
Microprocessor controlled flame relay
•
Safety relevant temperature measurement of a NiCr-Ni
dual thermocouple for release of the appropriate operating
mode and for thermal supervision of FLOX
or safety relevant inputs for release of FLOX
mode (XOR signal processing)
•
Air / exhaust and cooling valve control
•
Manual / Automatic operation
•
Display of information, operating and fault status
messages, in a compact metal housing
The CBR controls, ignites (externally) and supervises
WS gas burners REKUMAT
operation (pre-configured self test < 24 hours).
Signal exchange with the main process control can be achieved via
Profibus DP interface or via hard wired input/output.
Depending on the power supply voltage, 4 variations, which are project customized, pre-configured and tested.
Technical Specifications:
•
Power Supply
•
Electrical connection
•
Fuse
•
Power consumption (self)
•
Power consumption (total)
•
Power consumption (safety relevant
users)
•
Max. cable lengths to burner components
•
Protection class
•
Ambient temperature
•
Storage and transportation
•
Humidity
•
Dimensions
•
Installation orientation
•
Mounting
•
Weight
•
Certification
Burner Control CBR
® ® ® ®
/ Regemat
® ® ® ®
operation
®
® ® ® ®
® ® ® ®
/ REGEMAT
in intermittent
® ® ® ®
)
/ flame
230V AC –15% ... +10% 50/60Hz or
115V AC –15% ... +10% 50/60Hz
Phase correct connection and ground connection
according to electrical diagram
Touch protection! Must be present for thermocouples
and the UV sensor / flame rod (powerless installation
and connection)
6,3A slow or 10A fast, integrated, replaceable
< 14VA
Max. current: 6,3A
Max. 5A (for all gas valves and ignition transformer for
approx. 2 sec during ignition)
10m
IP54
-20°C ... +60°C
-20°C ... +70°C
DIN 60730-1, dew/condensation formation not allowed
264x310x123mm (Width x Height x Depth)
any
On site, 4 female threads M8x1,25 (12mm deep) each
17mm from outside edge
5 ... 15kg (depending on components and cable length)
EG-Construction Pattern Test Certificate
EG-Gas Device guide line (CE Nummer: 0085BT0439
/ Testing basis: EU/90/396/EWG; DIN EN298)
FM approved Class: 7610 (Test number PDR 3035948)
P. 1 / 25
Advertisement
Related Manuals for WS D-71272
Summary of Contents for WS D-71272
- Page 1 The CBR controls, ignites (externally) and supervises ® ® ® ® ® ® ® ® WS gas burners REKUMAT / REGEMAT in intermittent operation (pre-configured self test < 24 hours). Signal exchange with the main process control can be achieved via Profibus DP interface or via hard wired input/output.
- Page 2 P. 2 / 25 Burner Control CBR The burner control box has many diagnosis features for ease of commissioning or trouble shooting: Program sequence, device parameters, fault code history, operating hours counter, combustion chamber temperature (measured by dual thermocouple) or the flame signal strength can be indicated on the 7-segment display. Three LED's visualize the most important operating states: •...
- Page 3 P. 3 / 25 Burner Control CBR Comfort Configuration Depicted configurations may differ from the actual scope of delivery, procedures however, remain principally the same. NOTE: All configured parameters are documented in the burner control certificate. This certificate is archived according the serial number. Please notify our electrical engineering department of any changes.
- Page 4 Make the connections according to the electrical schematics supplied by WS. All connections must be fused properly (depending on wire lengths, wire gauge, ambient temperature, and power draw). The „safety chain“ signal carries the load from the ignition transformer and the gas valves connected to the burner.
- Page 5 Prior to commissioning, wire termination and controls must be verified and tested diligently by trained professionals, in accordance to local regulations. NOTE: all parameter settings are documented on the burner test data certificate. This certificate is archived according to WS serial numbers. Please notify our electrical engineering department of any changes made.
- Page 6 P. 6 / 25 Burner Control CBR Profibus DP with CBR Please follow all applicable safety regulations. Depicted configurations may differ from the actual scope of delivery, procedures however, remain principally the same. Burner control CBR with Profibus (functional schematic) L1,N,PE (FLOX GWS) SPS,PLC,CPE...
- Page 7 (Refer to the installation instructions of the plug manufacturer). CBR Profibus – Data Cable Connections CBR Control box Sub - D 9-pin Variosub Profibus - 9 -pin connector WS T.- - Nr. 970-00-440 green green shield shield Outgoing bus cable to next CBR Incomming bus cable Note: Bus connector can be removed from the CBR without interrupting the bus.
- Page 8 P. 8 / 25 Burner Control CBR Declaration of the Profibus interface: Manufacturers tag 0x3218 (UNIGATE IC-Profibus der Firma Deutschmann Automation GmbH) ASCIC-Type VPC3+B Sync- und Freeze- Mode - is supported (Sync- command: all outputs of addressed slaves frozen Freeze- command: freeze all inputs of addressed slaves) Cycle time Maximum duration until response of a request telegram, depending on bus transfer rate:...
- Page 9 P. 9 / 25 Burner Control CBR Profibus configuration: When engineering a Profibus DP system, parameters and addresses must be configured for each device. A GSD file is provided to simplify and standardize this engineering process. The GSD file format is standardized, so it can be read and recognized by devices of all manufacturers.
- Page 10 P. 10 / 25 Burner Control CBR Tab.3: Status byte EB2 – signal reference (CBR → Master): (In dependence of Bit 1 (EB0) „burner fault“, either the operating status (State) may be analyzed at „0“ or the fault code may be analyzed at „1“ Byte Byte Display...
- Page 11 P. 11 / 25 Burner Control CBR Table 3: Error byte EB2 – signal mask (CBR → Master): (In dependence of Bit 1 (EB0) „burner fault“, either the operating status (State) may be analyzed at „0“ or the fault code may be analyzed at „1“) Byte Byte Display...
- Page 12 P. 12 / 25 Burner Control CBR Enter Profibus Address (initial commissioning) WS Delivery: 127 (invalid) Test Profibus communication Test Profibus address Enter Profibus Address (correction): Example: change from 4 to 3 Test Profibus communication...
- Page 13 P. 13 / 25 Burner Control CBR Manual Operation CBR Please follow all applicable safety regulations. Depicted configurations may differ from the actual scope of delivery, procedures however, remain principally the same. For service adjustments, emissions testing und failure diagnosis the burner can be operated in manual mode.
- Page 14 P. 14 / 25 Burner Control CBR Manual Mode Heating: Burner in Start Mode: functions are dependant on the current operating mode (temperature range) Manual Mode Heating: Burner in Flame Mode: functions are dependant on the current operating mode (temperature range)
- Page 15 P. 15 / 25 Burner Control CBR ® ® ® ® Manual Mode Heating Burner in FLOX -Mode: functions are dependant on the current operating mode (temperature range) Manual Mode Timeout: Operation in manual mode is time limited. Once this time is exceeded, the CBR is automatically locked out.
- Page 16 P. 16 / 25 Burner Control CBR Testing the Safety Features Please follow all applicable safety regulations. Depicted configurations may differ from the actual scope of delivery, procedures however, remain principally the same. Tools: • Screw driver Accessories: • Digital thermometer Salient notes: Safety features of the thermal processing line must not circumvented or disabled.
- Page 17 For some faults the CBR can be configured so that they do not cause a shut-off of the burner. The fault is then indicated on the CBR display. Please contact the WS service department if a fault persists and can not be reset. Power down the burner control box and close the manual gas shut-off valve. Isolate the burner from the exhaust system (i.e.
- Page 18 P. 18 / 25 Burner Control CBR a) Status Display Fault Code Fault / Cause Check / Solution Temp. Supervision (optional) An optional, measured temperature has e.g. Burner head temperature or exhaust exceeded the set limit temperature exceeded The CBR is only configured for a Flame operation locked out and FLOX temperature not yet reached FLOX only burner...
- Page 19 P. 19 / 25 Burner Control CBR b) Burner faults Fault displayed on CBR by flashing red LED and following fault Code: Fault Code Fault / Cause Check / Resolution Safety chain limits / permissives Upstream combustion safety devices are interrupted not on line;...
- Page 20 P. 20 / 25 Burner Control CBR Fault displayed on CBR by flashing red LED and following fault Code: Fault Display Fault / Cause Check / Resolution Safety check delta-p air min. Delta-p switch defective; Flexible hose from pressure switch (negative side) to the measuring orifice lose or leaking;...
- Page 21 P. 21 / 25 Burner Control CBR Fault displayed on CBR by flashing red LED and following fault Code: Fault Display Fault / Cause Check / Resolution Faulty optional Main gas valve is not closing; Proof of Closure Switch Main gas valve defective; Proof of closure (POC) switch defective;...
- Page 22 P. 22 / 25 Burner Control CBR c) Control and Operating Faults Fault Display Fault / Cause Check / Resolution Bus fault The TWI bus cable (service interface) is blocked by a defective bus client (e.g. defective Vision Box) flashing Display fault (internal) The connected display is invalid flashing...
- Page 23 P. 23 / 25 Burner Control CBR Fault displayed on CBR by flashing red LED and following fault Code: Fault Display Fault / Cause Check / Resolution Hardware fault Ambient temperature too high; Excess power supply level in main power supply F 03 Wait until new reset is permitted...
- Page 24 P. 24 / 25 Burner Control CBR Fault displayed on CBR by flashing red LED and following fault Code: Fault Display Fault / Cause Check / Resolution External FLOX/Flame switching fault XOR signals not present at FLOX and flame terminals → with external FLOX/flame release (without F 57 thermocouple...
- Page 25 Flame to FLOX (>3 in 30s) at the signal inputs of burners with external FLOX / F 62 flame switching d) Internal faults Other error codes indicate CBR internal faults. If reset attempts are unsuccessful, please contact the WS Service Department.
