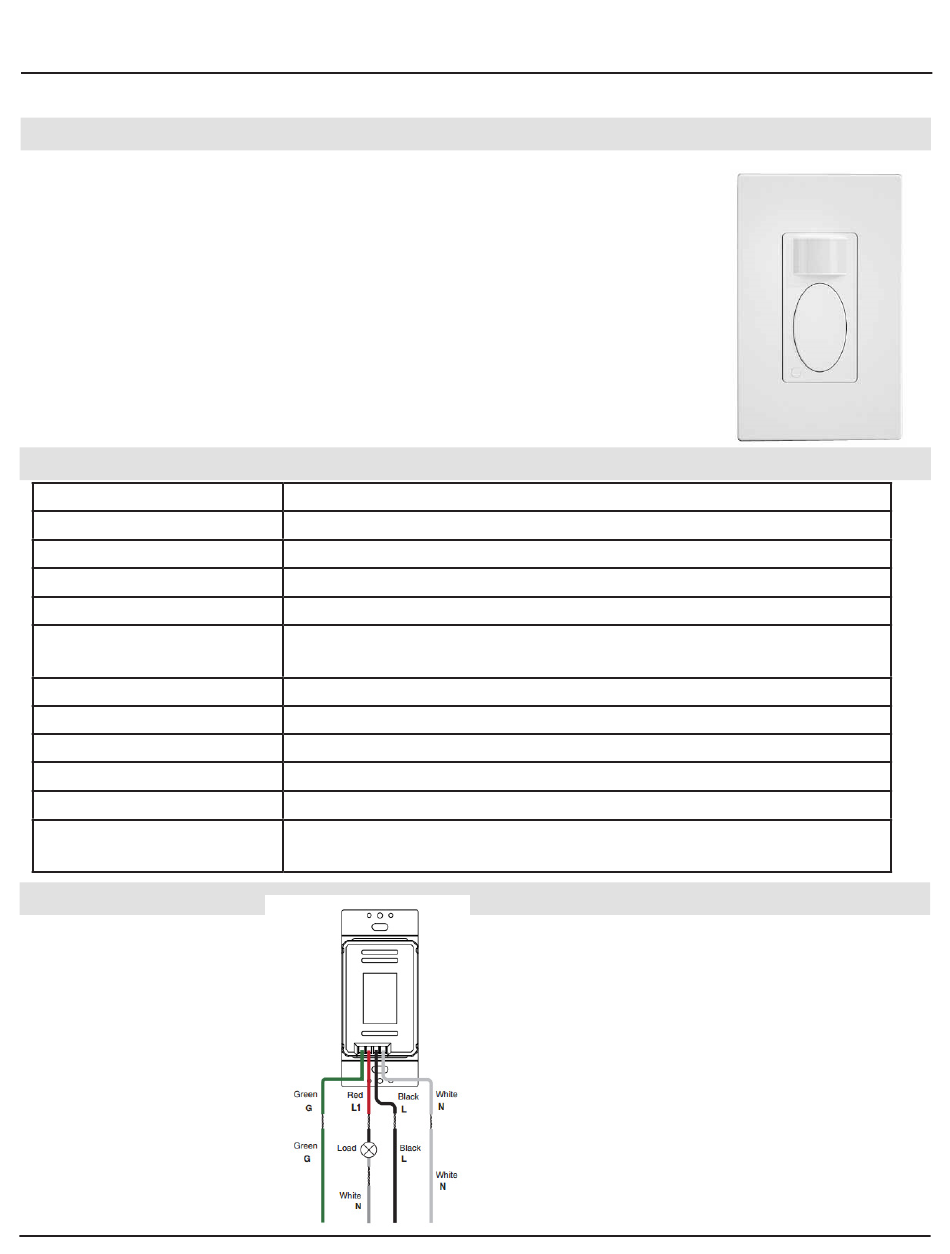

Temco RZ021-5A-N Quick Start Manual

Occupancy sensor switch

The RZ021 series occupancy sensor switch can automatically turn lights

or fans on and off by detecting heat emitted by the motion, it's designed

to replace a standard light or fan switch.The products use advanced

passive infrared sensor(PIR) and MCU control technology which offers

better stability than the traditional motion sensor, it's easy and accurate

to adjust the Time Delay,Detection Range, Light sensor value, and

operating mode (Occupancy / Vacancy / On-Off ) .

Power Source

Detection Range

Power Frequency

Detection Distance

Light sensor

Time-Delay

Working Humidity

Installation Height

Motion Detection Speed

Working Temperature

Incandescent / Halogen

Fluorescent / Ballast /

LED

RZ021-5A-N

110V~277VAC

150°

50/60Hz

7-9m max (<27℃)

Default 25Lux(±10Lux), 15Lux, 35Lux , OFF optional.

Default 1min(15secs,1min,3mins,5mins,15mins,30mins adjust-

able)

< 93%RH

1.2m~1.6m

0.6~1.5m/s

-20~+40℃

550W / 120VAC

550W/ 120VAC 800W/ 277VAC

- 1 -

Occupancy Sensor Switch

Table of Contents

Do you have a question about the RZ021-5A-N and is the answer not in the manual?

Page 1 Occupancy Sensor Switch RZ021-5A-N Descriptions The RZ021 series occupancy sensor switch can automatically turn lights or fans on and off by detecting heat emitted by the motion, it’s designed to replace a standard light or fan switch.The products use advanced passive infrared sensor(PIR) and MCU control technology which offers better stability than the traditional motion sensor, it’s easy and accurate...
Page 2 Occupancy Sensor Switch Adjustment 1. After connecting the switch, the RZ021 default time-delay is 1min,ambient light sensor value:25Lux, the switch is in Occupancy sensor mode, when sensor detects motion, the green indi- cator will flash 2.Short press the big button, can turn on/off the load temporarily, when the time delay expires, the sensor will turn to the last operating mode.
Page 3 Occupancy Sensor Working Modes Choose The Right Place For Installation - 3 -...
Page 4 Occupancy Sensor Trouble Shooting Guide TIP: If you don’t know exactly what the reason caused the trouble, and how to solve it you can try to restore the factory setting by pressing the big and small button at the same time untill the red and green indicator flash for 6 times.
