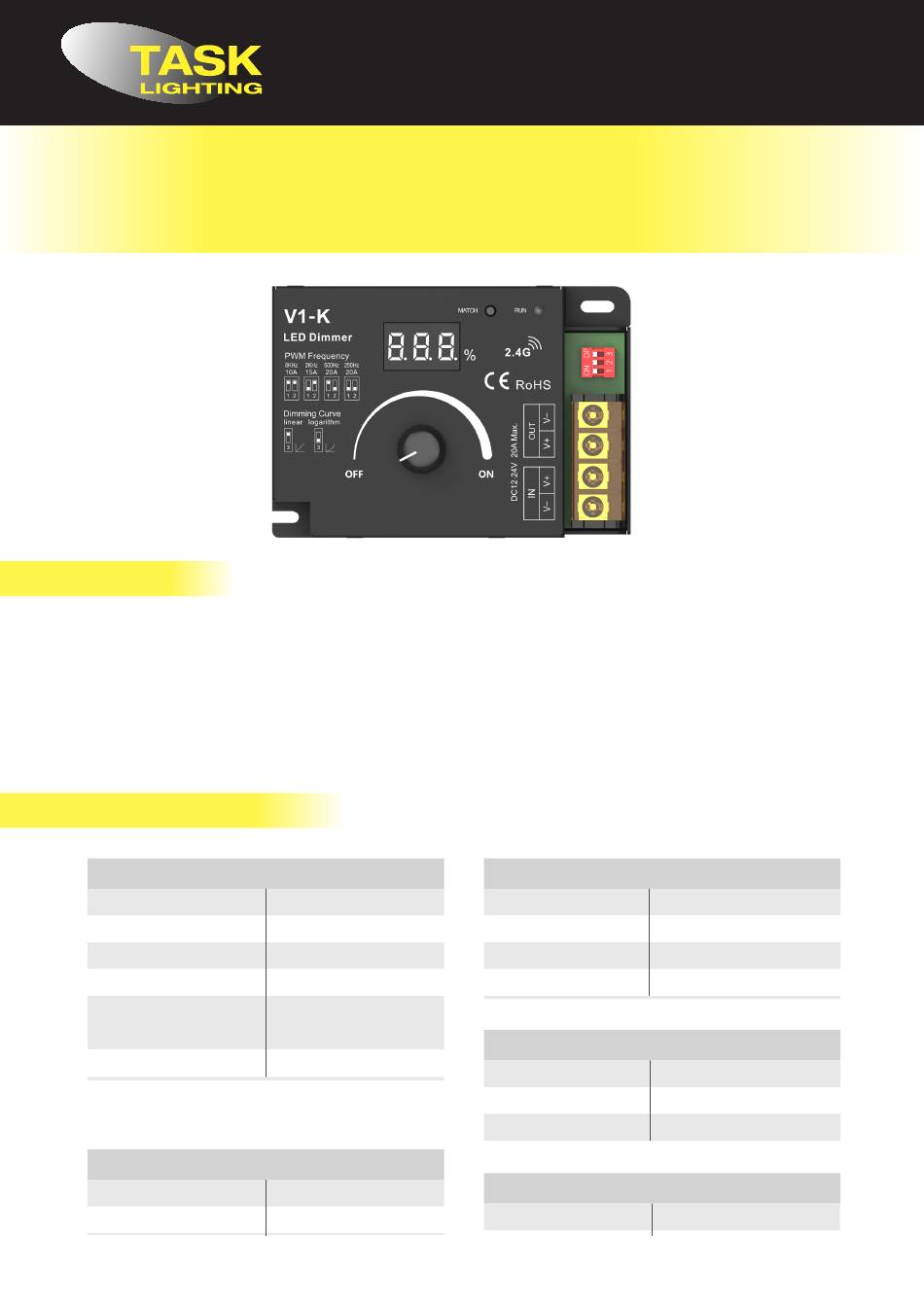

Task Lighting LCDM-MAN-20A-24V Manual

Rotary LED Dimmer
Model No.: V1-K
1 Channel/Constant Voltage/Step-less dimming/ Four PWM frequency/Linear or logarithmic dimming/Numeric display
Features
● Digital numeric display, visible dimming level.
● 4096 levels 0-100% dimming smoothly without any flash.
Features
● High load current up to 20A.
● Logarithmic or linear dimming curve selectable.
• Digital numeric display with visible dimming level
● PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable.
• From 0-100% smooth dimming without flickering
• High load current up to 20A
• Logarithmic or linear dimming curve selectable
• PWM frequency 250Hz, 500Hz, 2kHz or 8kHz selectable
Technical Parameters
Technical Parameter
Input and Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
LCDM-MAN-20A-24V
Manual LED Dimmer
12-24VDC
20A
12-24VDC
1CH,20A Max.
240W/480W Max.
@ (12V/24V) 250Hz PWM
Constant voltage
EN301 489,EN 62479
EN60950
CE,EMC
OFF
DC12-24V
20A Max.
IN
V V
Dimming data
Dimming level
100 levels
Dimming range
0 - 100%
Logarithmic or linear
Dimming cur ve
250Hz, 500Hz, 2kHz, 8kHz
PWM Frequency
Environment
Operation temperature Ta: -30
Case temperature Max.
( )
T c: +85
IP rating
IP20
Warranty and Protection
Warranty
Protection
L E D S P E C I A L I S T S
V1-K
%
LED Dimmer
ON
OUT
V V
O O
C ~ +55 C
O C
5 years
Reverse Polarity
