Summary of Contents for Mdex MX560

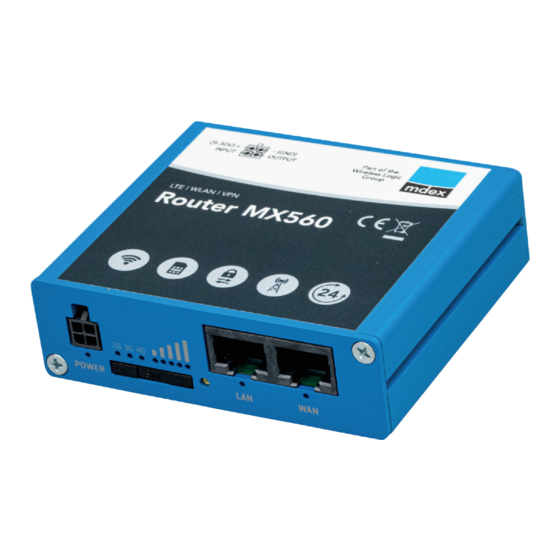

- Page 1 Quick Guide MX560 Anleitungen mdex Router Seite 2 MX560 MX560 Manuals Release: May 06, 2021 (v.1.0) This Quick Guide describes the connections, Page 2 specifications and quick commissioning of the router. page 1...
-
Page 2: Table Of Contents
The information and data contained in this document are subject to change without notice. Copyright notice: This document is copyrighted by Wireless Logic mdex GmbH and may only be reproduced for internal use. All other reproductions, including excerpts, are not permitted without the prior written permission of Wireless Logic mdex GmbH. -
Page 3: Specifications & Interfaces
1 Specifications & Interfaces 1.1 Technical specifications Hardware: 74 mm x 84 mm x 25 mm Dimensions (L x W x H): (without DIN rail bracket) approx. 160g Weight: (without DIN rail bracket) CPU / RAM: 400 MHz MIPS CPU, 64 MB RAM Input voltage: 9 - 30 VDC, max. -
Page 4: Connectors And Interfaces
LAN Ethernet socket with status LED for connection of a PC or terminal device. WAN Ethernet socket with status LED for special functions to connect the MX560 to external networks or routers. This port can be optionally reconfigured as LAN. -
Page 5: Connection Status And Signal Strength
-51 dBm (or better) (weak signal strength) (optimal signal strength) Please note that the mobile reception power is also relevant for good data transmission. More details can be found in the MX560 Setup Guide → chapter 4.3.2 “Mobile WAN (WebUI)”. page 5... -
Page 6: Installation
3. Push the SIM holder back into the router and press it firmly. The mobile settings for the installed SIM card must be adjusted at “Network → Mobile”. More details can be found in the MX560 Setup Guide → chapter 3.5 “Mobile Settings”. page 6... -
Page 7: Connecting Antennas
If a second LTE antenna is connected to the left LTE AUX socket, the LTE download rate can be increased. Only when using the WIFI access point of MX560, a WiFi antenna with RP-SMA WiFi plug must be connected to the WiFi socket. -
Page 8: Powering Of Router
2.4 Wall and DIN rail mounting (optional) The MX560 can be mounted on a DIN rail or on a wall. The brackets are fastened with the enclosed screws either in the groove on the left side, right side or bottom of the router. -
Page 9: Important Information
3 Important Information Safety information This chapter describes the safety instructions to be observed. These apply in the Federal Republic of Germany. When used in other countries, the relevant national regulations must be observed. Disturbances of other devices Using the router may cause interference with other equipment. The use of the router should be avoided in the following areas: •... - Page 10 Attention: Operation outside the permissible range can considerably shorten the service life of the router. Declaration of Conformity The mdex MX560 router complies with the basic requirements of Directive 2014/53 / EU. The complete EU Declaration of Conformity can be downloaded from wiki.mdex.de/Support/DoC. Frequency bands and max. transmission powers...
- Page 11 By doing so, you will avoid harmful effects on the environment and human health. You can also return the router and the electronic parts included in the scope of delivery to mdex at your own expense for proper disposal: Wireless Logic mdex GmbH, Bäckerbarg 6, 22889 Tangstedt, Germany...
- Page 12 Inquiries should be sent to the following address (if possible, stating the serial number of the product purchased): Wireless Logic mdex GmbH Bäckerbarg 6 22889 Tangstedt, Germany Fax: +49 4109 555 55 E-mail: opensource-support@mdex.de...
