Aim AC022G User Manual

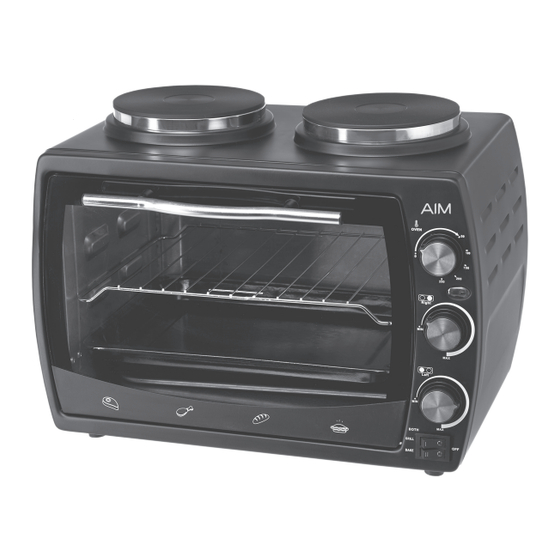

Compact oven 22 litre 2600 w
Hide thumbs
Table of Contents

Advertisement

Quick Links

22 Litre
compact
oven
2600 W
• 22 Litre capacity
• 1200 watt oven
• griLL & bake eLementS
• power indicator Light
• thermoStaticaLLy controLLed
• 2x 700 watt hot pLateS
• puLL down gLaSS door for eaSy acceSS
• oven & hotpLate can be uSed at the Same time
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC022G and is the answer not in the manual?

Questions and answers

Summary of Contents for Aim AC022G

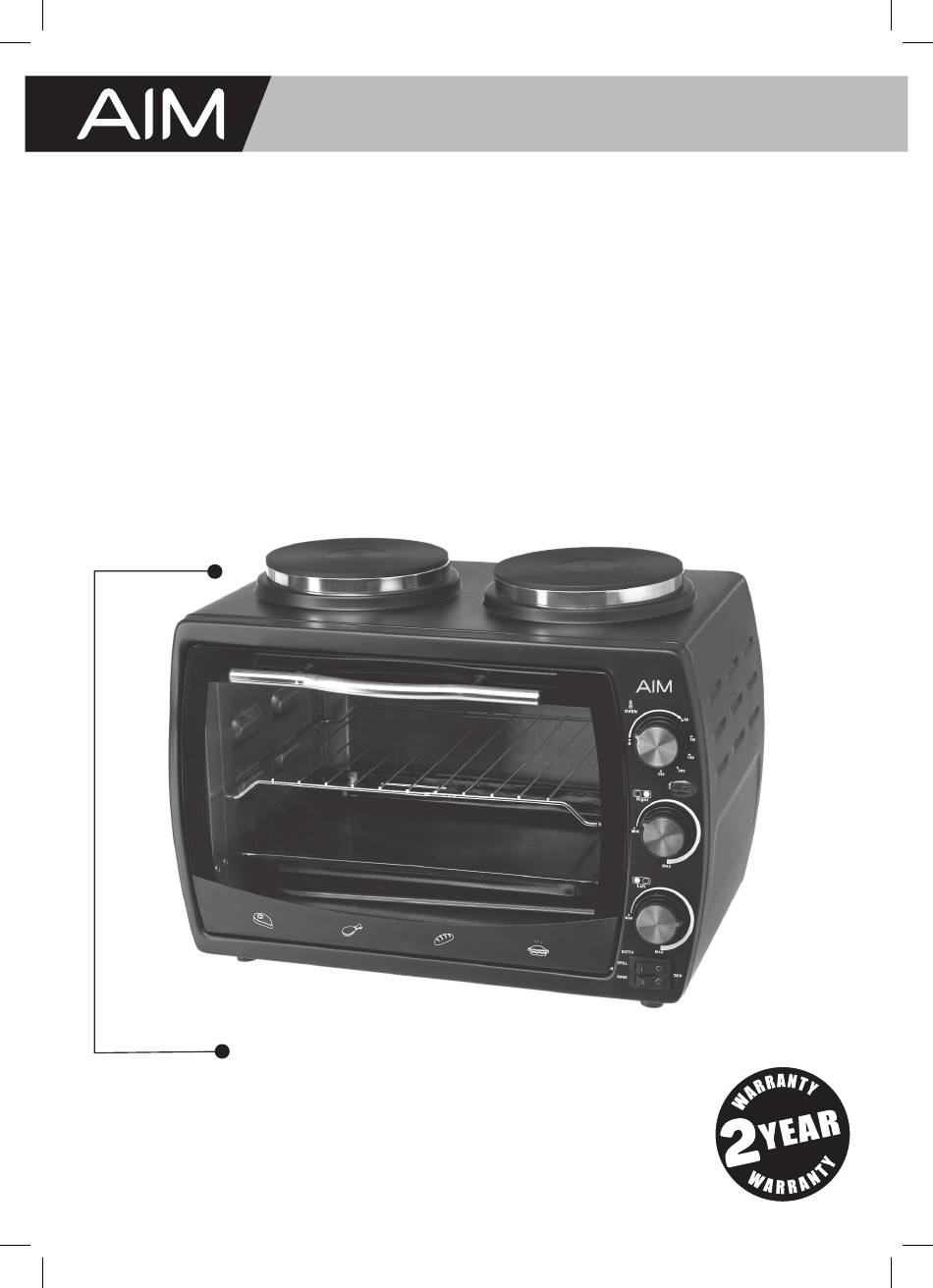

  • Page 1 U S E R M A N U A L 22 Litre compact oven 2600 W • 22 Litre capacity • 1200 watt oven • griLL & bake eLementS • power indicator Light • thermoStaticaLLy controLLed • 2x 700 watt hot pLateS •...

  • Page 2: Table Of Contents

    INDEX • IMPORTANT SAFEGUARDS • OPERATION INSTRUCTION • PARTS DESCRIPTION • HOTPLATE OPERATION • OVEN OPERATION • COOKING TIPS • DIRECTION FOR USES • MAINTENANCE AND CLEANING • SPECIFICATIONS • 2 YEAR LIMITED WARRANTY • REPAIRS PROCEDURE...

  • Page 3: Important Safeguards

    USER INSTRUCTIONS Please read this instruction manual carefully before using the Compact Oven for the first time, and always keep these instructions. IMPORTANT SAFEGUARDS When using the Compact Oven, basic safety precautions should always be followed including the following: Read all instructions before using. Before connecting the Compact Oven to the electrical power supply, check that the voltage indicated corresponds with the voltage in your home.
  • Page 4 IMPORTANT SAFEGUARDS - CONTINUED Always ensure that you have disconnected the plug from the electrical supply socket on the wall before proceeding to clean the Compact Oven or after using every time. Make sure that the power cable does not come into contact with the heated parts of the Compact Oven.

  • Page 5: Operation Instruction

    OPERATION INSTRUCTION Before using: Ensure that the distance between the Compact Oven and the wall (back & side) or other oven is at least 15~25CM, and always place it in a dry environment. When using the Compact Oven for the first time, place the Compact Oven on max setting for 3 minutes. Do not put anything into the Oven of the Compact Oven during this period.

  • Page 6: Hotplate Operation

    HOTPLATE OPERATION Middle knob is the Right Hotplate Control Knob: 700 W Bottom knob is the Left Hotplate Control Knob: 700 W Turn the desired control knob to choose temperature setting; the knob is marked “MIN-MAX” that means the temperature can be adjusted from low to high.

  • Page 7: Oven Operation

    OVEN OPERATION Using the Grill and Bake Switches, you can select which Heating Element you would like to use. Upper Heating Element: 600W Lower Heating Element: 600W The grill-function, the bake-function or a combination of both is controlled by the top knob and the bottom rocker switches, the top knob which is marked 1-5 (50-250 C) grade means the temperature is from low to high.

  • Page 8: Direction For Uses

    DIRECTION FOR USES (ONLY FOR YOUR REFERENCE) Temperature Range Application 130°C Shortbread, Cookies, Tarts1 170°C Crisp dumplings, Cake 210°C Bread, Fried dumplings, Pancake, Peanuts, Rice in Box 250°C Chicken, Goose, Duck, Meat, Fish MAINTENANCE AND CLEANING After using the Compact Oven, set all switch counterclockwise to “O”...

  • Page 9: Specifications

    SPECIFICATIONS Voltage: AC 220 - 240V~ Frequency: 50/60 Hz Power: 2600 W Ensure that the voltage indicated on the rating label corresponds with the mains voltage. WARNING: This Compact Oven must be earthed.

  • Page 10: Year Limited Warranty

    2 YEAR LIMITED WARRANTY The Manufacturer hereby provides a warranty to the original purchaser of this product (‘the consumer’) that this product will be free of manufacturing defects in materials and workmanship which under normal, personal, family or household use (commercial use expressly excluded) manifest themselves within the 2 year from the date of purchase. EXCLUSIONS • The warranty does not include and will not be construed to cover products damaged as a result of disaster, misuse, commercial use, not in accordance within the written instructions included with the product, abuse and/or any non-authorised modification of the product, incorrect installation of the product or normal wear and tear.

  • Page 11: Repairs Procedure

    REPAIRS PROCEDURE Should you experience any faults on your Aim product, please adhere to the following procedure to have the fault rectified speedily and professionally. You can return the product to the store. Call the Pick n Pay CUSTOMER CARE number on 0860 30 30 30 (only in South Africa) to report the fault and make arrangements for the next steps.
