Summary of Contents for dtm GO801/1001

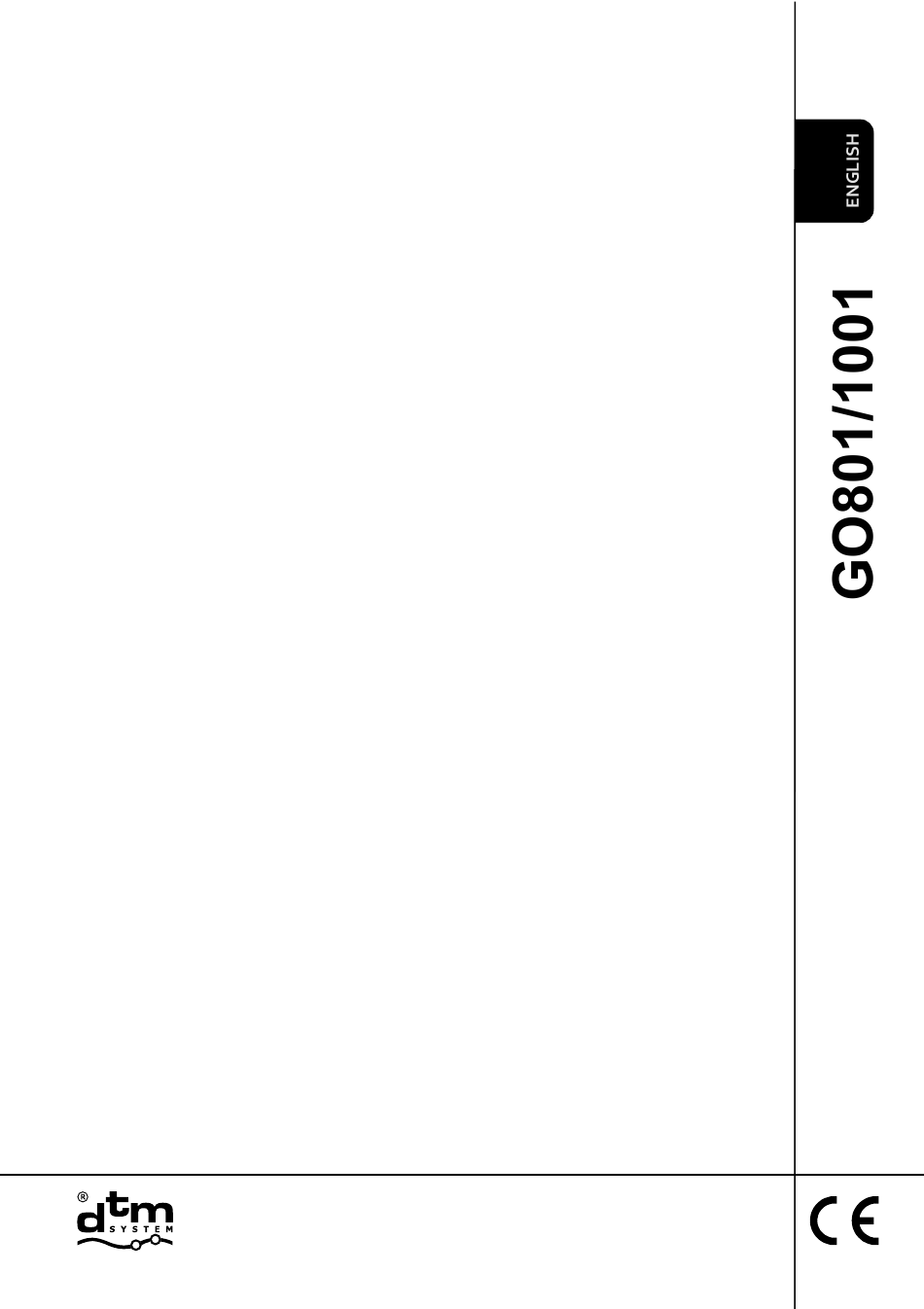

- Page 1 AUTOMATION SYSTEMS Version 1.3 GARAGE DOOR OPENER Assembly manual www.dtm.pl...
- Page 2 · Automatic swing gates should comply with the standards as well as with any applicable local regulations, and must also comply with the requirements of EN 12604; · DTM System is not responsible for the consequences of design defects of the driven elements or for their deformation that may occur during use;...
- Page 3 · During assembly or repair work of the automatic gate, be careful not to wear jewelery, watches or loose clothing; · In order to avoid damage to the gate and / or the drive, remove any locks, ropes or loops installed on the gate that are used to open the gate manually;...
- Page 4 Please read the following warnings carefully.The gate drive ensures correct and safe operation only if the installation and use comply with the following safety rules. DTM System is not responsible for accidents caused by improper use or unprofessional installation of devices.
-
Page 5: Mechanical Assembly
1. Introduction 1.1General information Electromechanical drive, designed to automate garage doors. The assembled and launched system can be conveniently operated by radio transmitters (remote controls). 1.2. Technical dataGO801/1001 power supply: 230-240VAC 50/60Hz • nominal power: 235/245W • maximum gate movement speed: 180 mm / s •... - Page 6 The dimensions of the gate must not exceed the dimensions given in the parameters of the drive; • You should check the drive can be installed, taking into account the dimensions of the installation; • The drive mechanism requires sufficient space between the ceiling and the door for mounting the running •...
- Page 7 2.4. Mechanical assembly Fig. 3. Materials and tools necessary for the assembly of the set. 10mm 10mm 13mm 13mm 2.4.1. Pre-assembly Drive - preparation for mounting the actuator on the gate Prepare the elements as shown in Fig. 1. Slide the trolley, Fig.1 [4] on the rail, as shown in Fig.4A. Assemble the rail as shown in Fig.
- Page 8 2.4.2. Installation of the drive and manual control of working conditions Measure the center of the gate and mark it at the leaf and lintel above the gate. Open the door slowly and determine the smallest distance between the most protruding movable element of the door and the ceiling -THP.This dimension must be at least 35 mm.The distance between theTHP and the lower edge of theC-profile rail must be at least 5 mm and maximum 65 mm (so that the bogie arm is at an angle of 30 °, Fig.
- Page 9 Then, using e.g. a ladder (suitably solid and stable), initially level the drive. If necessary, disengage the trolley by pulling it down once on the emergency release mechanism, Fig.6C [1]. Move the trolley back and open the gate. Position the ceiling hanger approx. 300 mm from the controller housing (depending on the door structure and the ceiling, the hanger can be mounted in the range from 0 to 600 mm relative to the controller housing, Fig.
- Page 10 4.2.Safety control Control the force settings in the drive. Check, by putting a slight resistance on the gate, whether the automation correctly responds to the increased resistance during the actuator's operation (stops or changes direction). If safety devices such as photocells are installed, break the photocells beam and check that the control unit reacts appropriately.The same should be done for the other safety devices if fitted.
-
Page 11: Warranty
2014/35 /EU; 2006/42/EC. The full text of the EU declaration of conformity is available at the internet address: www.dtm.pl DTM System Daniel Kujawski sp. j. (formerly: DTM System Spółka z ograniczoną odpowiedzialnością sp. k.) Brzeska 7, 85-145 Bydgoszcz, Polen, tel. +48 52 340 15 83...
